New
RoHS

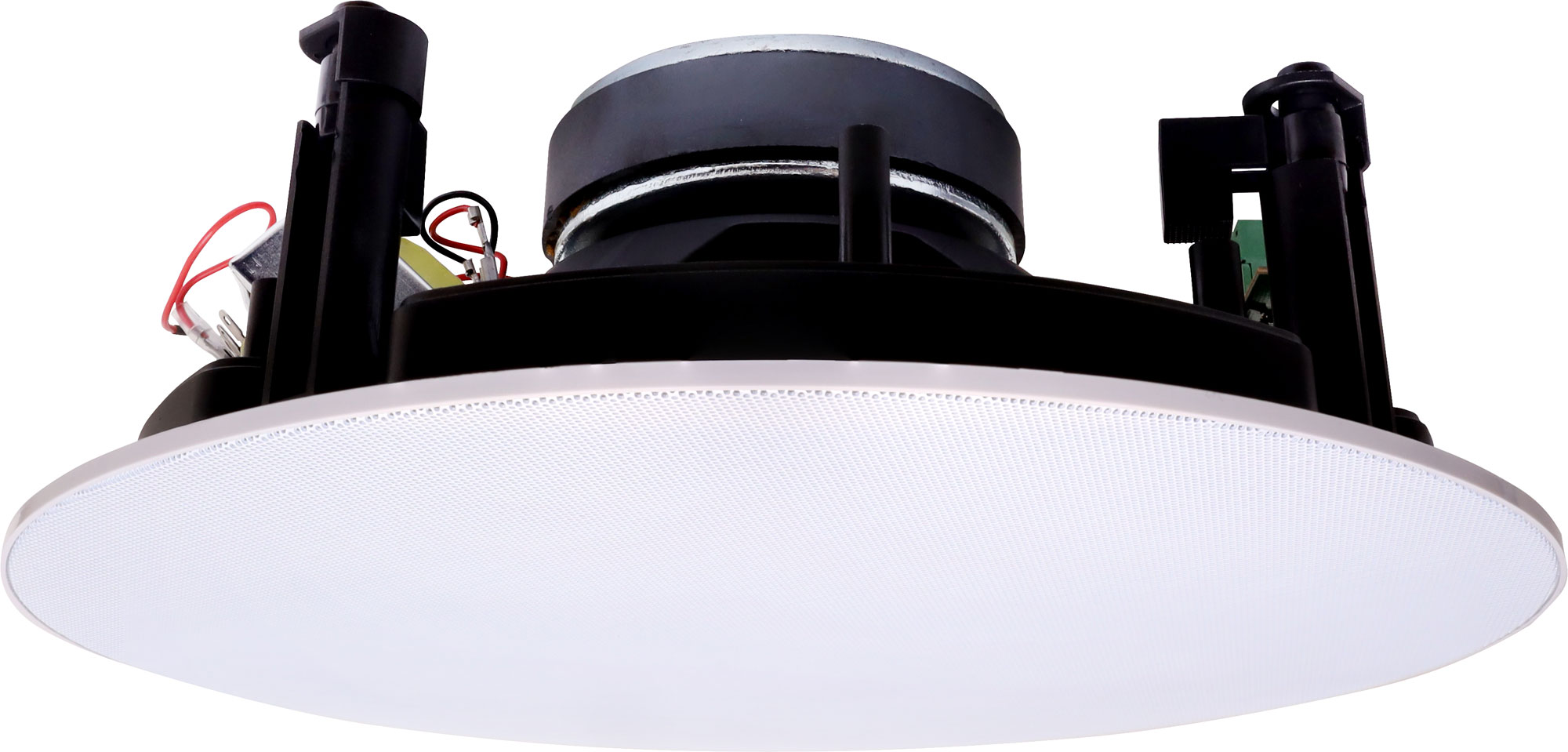

200mm (8") 30W 100V Coaxial Fastfix Ceiling Speaker

Manufacturer: Redback
SKU: C2190A
The C 2190A is a high power 30W PA speaker designed for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space.
$131.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $131.82
4+ $122.73
10+ $108.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The C 2190A is a high power 30W PA speaker designed for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space. This speaker is designed for use in installations designed to deliver both verbal and tone announcements to occupants for evacuation and alarm conditions. It is fitted with line monitoring capacitor and 4 way pluggable terminal block connection.

Specifications:

Power taps: 1.87, 3.75, 7.5, 15, 30 Watts

  • SPL 1W @ 1m: 90dB @ 1kHz ±3dB
  • Freq response: 45Hz - 20kHz
  • Terminal type: 4 way pluggable terminal & 22µF bipolar cap
  • Grille: Steel
  • Ceiling cutout: 250mm Ø
  • Mounting depth: 100mm

Features

  • Magnetic fit ‘edge to edge’ steel grille for a neat flush finish.
  • High power output - upgraded to 30W from previous version.
  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Flip-lock mounting system reduces installation time.
  • Fitted with supervisory capacitor for line monitoring.
  • 5 year warranty.

Warranty & Returns

5 Years

We Offer 5 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 5 Years
