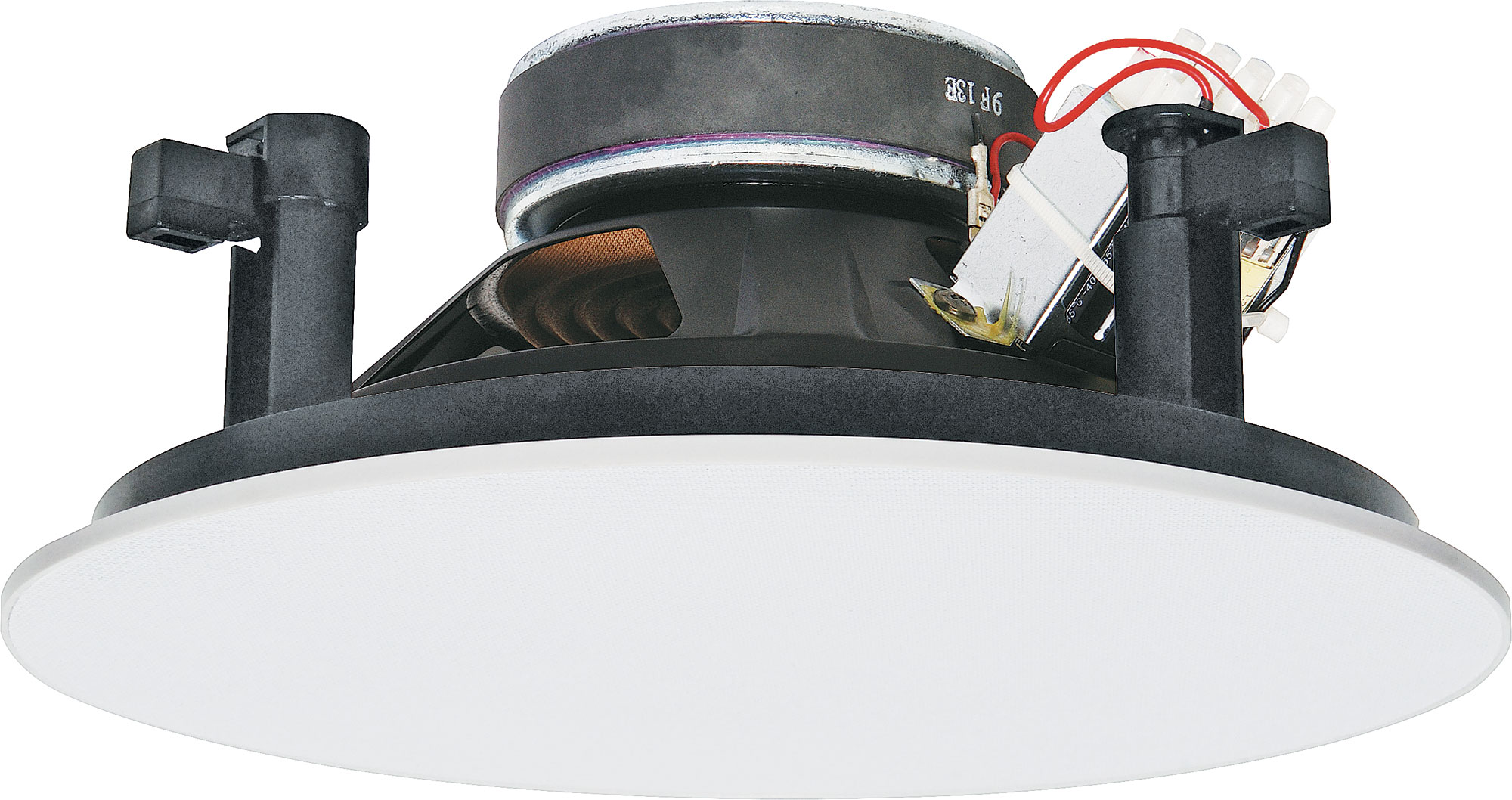

200mm (8") 15W 100V Coaxial 2 Way EWIS Fastfix Ceiling Speaker

Manufacturer: Redback
Be the first to review this product
Features a magnetic fit 'edge to edge' steel grille for a near flush finish.
SKU: C2190
$125.00
Per ea
QuantityPrice
ea$125.00
4+$113.64
10+$100.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The C 2190 is a high power PA speaker designed for EWIS (fire & evacuation) installations. It is ideal for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space. This speaker is designed for use in installations designed to deliver both verbal and tone announcements to occupants for evacuation and alarm conditions. It is fitted with line monitoring capacitor and 4 way wire protect terminal connection.

Specifications:

Power taps: 1.25, 2, 5, 10, 15 watts

  • SPL 1W @ 1m: 90dB @ 1kHz ±3dB
  • Freq response: 45Hz - 20kHz
  • Terminal type: 4 way screw terminal & 22µF bipolar cap
  • Grille: Steel
  • Ceiling cutout: 250mm Ø
  • Mounting depth: 100mm

Features

  • Magnetic fit ‘edge to edge’ steel grille for a neat flush finish.
  • High power output
  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Flip-lock mounting system reduces installation time.
  • Fitted with supervisory capacitor for line monitoring.
  • 5 year warranty.

5 Years

We Offer 5 Years for this product
