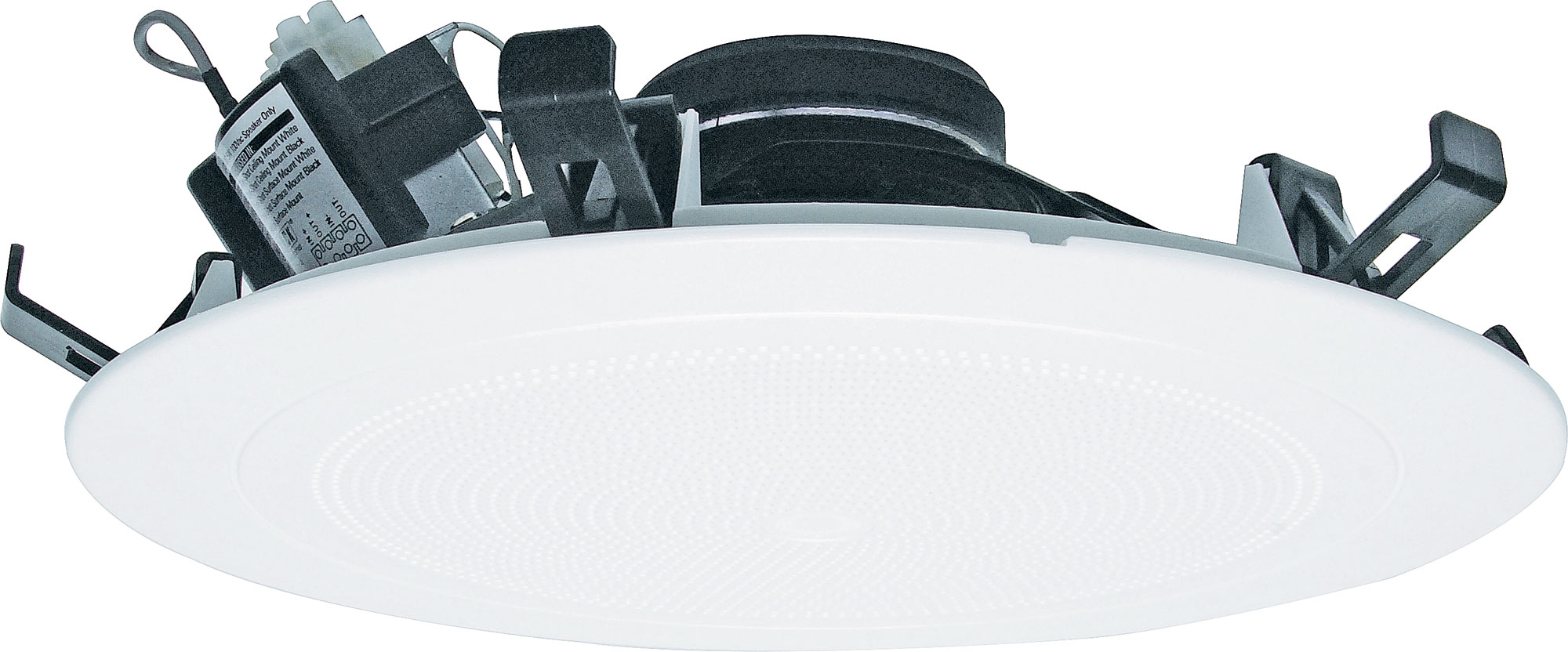

200mm (8") 5W 100V White EWIS One-Shot Ceiling Speaker

Manufacturer: One-Shot
Be the first to review this product
Super fast installation & excellent speech intelligibility. Redback "One-Shot" speaker units install in seconds. They simply snap fit to any 10-13mm thickness ceiling by means of the integral pressure clips. The labour cost savings fo
SKU: C2134C
$52.27
Per ea
QuantityPrice
ea$52.27
4+$47.27
10+$44.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 200mm (8") One-Shot Redback PA ceiling speaker has been engineered to be EWIS compatible and offer fast installation. They are ideal for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space. Fitted with twin cone 200mm driver with 4 way wire protect terminal block & 22uf bipolar cap.

Features:

  • Excellent speech intelligibility.
  • Engineered to meet Australian Standard AS1670.4
  • High quality speaker driver developed for BGM, paging and emergency warning applications.
  • Patented 6 way latching ensures a neat, sag free installation.
  • Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
  • Fitted with cable restraint plate and transformer safety cover as required by Australian Standards.
  • Fitted with supervisory capacitor for line monitoring.
  • High impact styrene grille.
  • 5 year warranty.

Specifications:

Power taps: 0.33, 0.66, 1.25, 2.5, 5W

  • Frequency Response: 75Hz- 15kHz
  • SPL (1W @ 1M): 93dB
  • Size: 200mm
  • Hole Cutout (Ø): 246mm
  • Connection: 4 way terminal block + 22uf bipolar capacitor

Note: All SPL figures are measured at 1KHz +/- 2dB.

    5 Years

    We Offer 5 Years for this product
