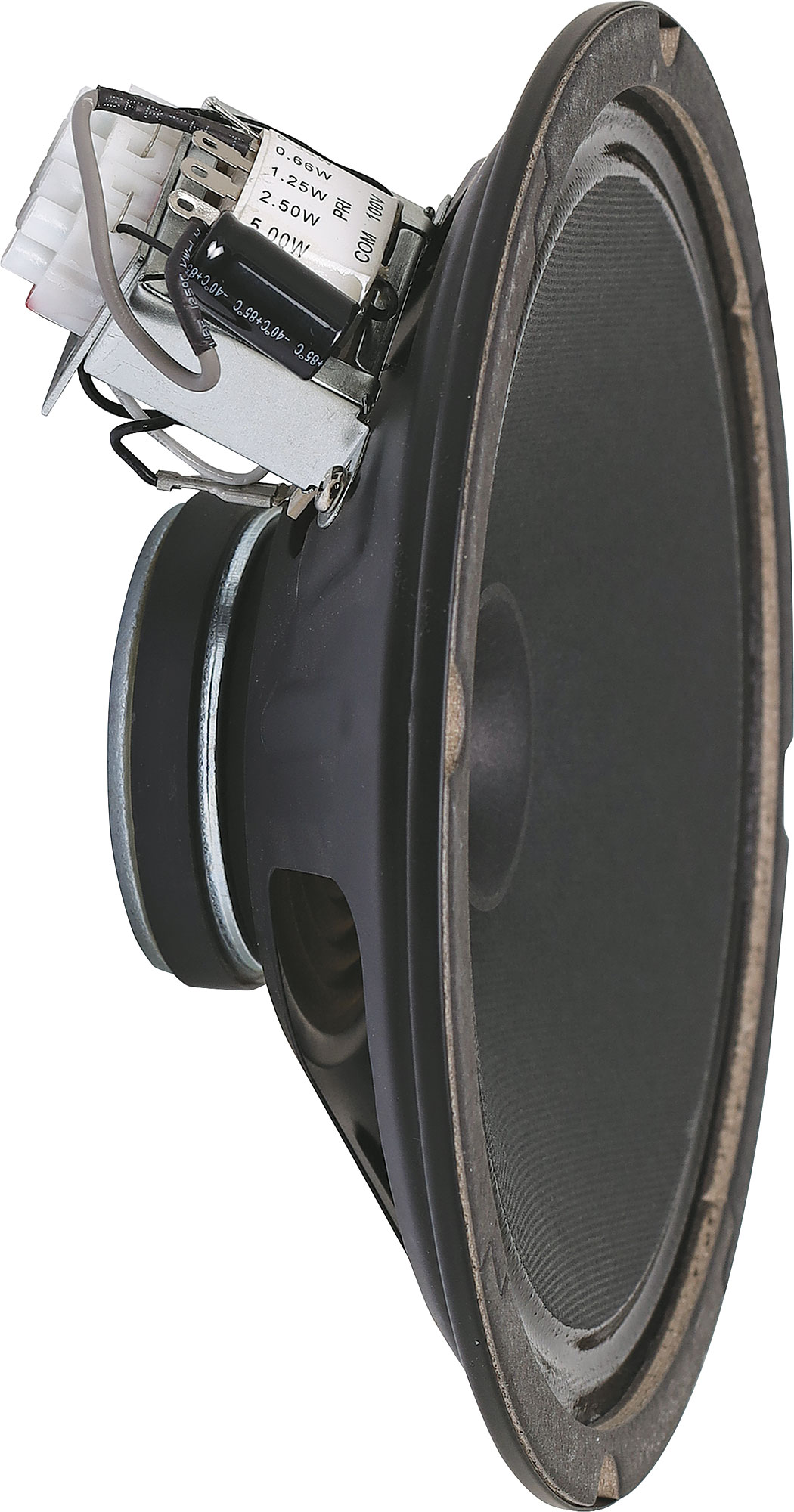

200mm (8") 5W 100V Twin Cone PA Driver Speaker

Manufacturer: Redback
Be the first to review this product
This custom designed speaker and transformer combination has been specifically engineered to ensure a wide frequency range and dispersion angle, plus a high sound pressure level (SPL) ensuring excellent music and speech intelligibility; which is h
SKU: C2109C
$36.32
Per ea
QuantityPrice
ea$36.32
4+$34.09
10+$30.86

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This custom designed speaker and transformer combination has been specifically engineered to ensure a wide frequency range and dispersion angle, plus a high sound pressure level (SPL) ensuring excellent music and speech intelligibility; which is highly desirable for emergency paging applications.

This driver exhibits optimum frequency response and efficiency for BGM & paging. The transformer is wound on a professional grade grain oriented steel core for high efficiency and extended frequency response.


Standard Type:
This model is fitted with a 2 way terminal block.

Specifications

Power Taps: 0.33, 0.66, 1.25, 2.5, 5 Watts

  • SPL 1W @ 1m : 93dB
  • Frequency Response: 100Hz - 15kHz
  • Ceiling Cutout: 185mm Ø
  • Connection: 2 way terminal block

Note: All SPL figures are measured at 1KHz +/- 2dB.

    5 Years

    We Offer 5 Years for this product
