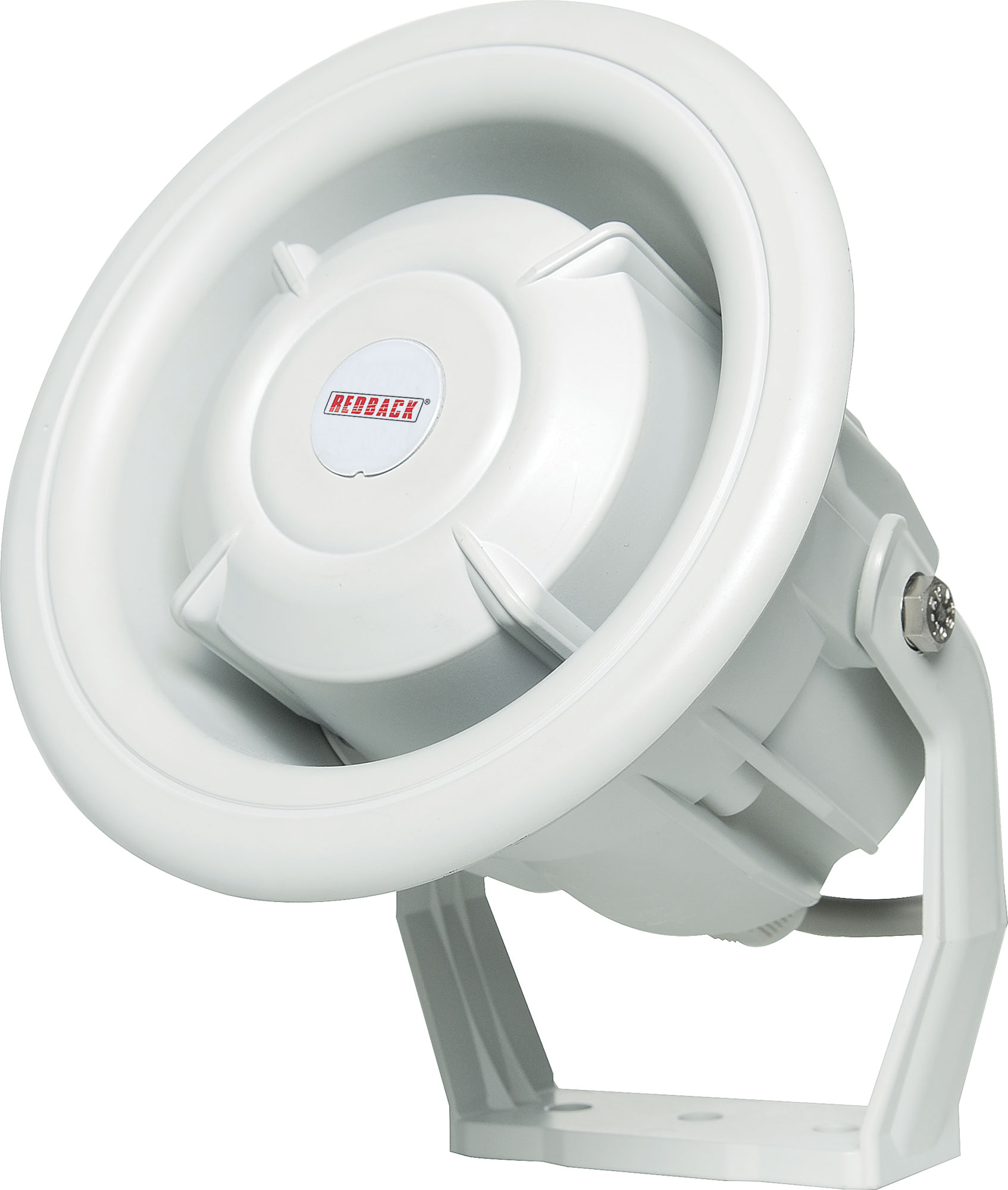

12W 100V IP67 Weather Proof Marine Horn Speaker

Manufacturer: Redback
Be the first to review this product
The perfect choice for harsh industrial environments. A wide operating temperature range, coupled with an IP67 rated enclosure make this horn speaker suitable for a vast range of applications. It is resistant to corrosion and chemicals.
SKU: C2083
$240.91
Per ea
QuantityPrice
ea$240.91
4+$226.36
10+$204.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Includes 22µF capacitor for line monitoring applications. The perfect choice for harsh industrial environments.
A wide operating temperature range and IP67 rated enclosure makes this horn suitable for a vast range of applications. The housing is UV stabilised which allows exposure to full sun. Several power taps are available via multi core cable, including 100V and 8Ω selections. Includes stainless steel hardware. Audio performance has not been sacrificed with excellent efficiency & frequency response. Suitable for flush ceiling mounting.

Features

  • IP67 dust & moisture rated
  • UV stabilised
  • -30°C to 70°C for harsh environments
  • 8 Ohm or 100V tappings
  • Recessed bracket with stainless steel hardware

Specifications

Rated Power (rms): 12W

  • Impedance: 833Ω, 1.67kΩ, 3.33kΩ, 6.67kΩ and 8Ω
  • Power Taps @ 100V: 12W, 6W, 3W, 1.5W & 8Ω
  • Power Taps @ 70V: 6W, 3W, 1.5W, 0.75W & 8Ω
  • SPL (1W / 1m) @1kHz: 98dB
  • Max. SPL (Rated W / 1m) @1kHz: 109dB
  • Frequency Range (-10dB): 570 Hz ~ 4.8k Hz
  • Frequency Range (-20dB): 510 Hz ~ 12k Hz
  • Dispersion 1k Hz / 4k Hz: 185˚/ 45˚
  • Operating Temperature: -30˚C ~ +70˚C
  • Ingress Protection: IEC 529 IP 67
  • Power Selection: 6-core cable
  • Housing material: High impact ABS with UV stable
  • Colour / Finish: Light grey (RAL 7035)
  • Dimensions: 143Ø. X 110.0L mm
  • Cutout size: 110Ø mm
  • Mounting: U-bracket or surface mount
  • Net Weight (ea): 1kg

5 Years

We Offer 5 Years for this product
