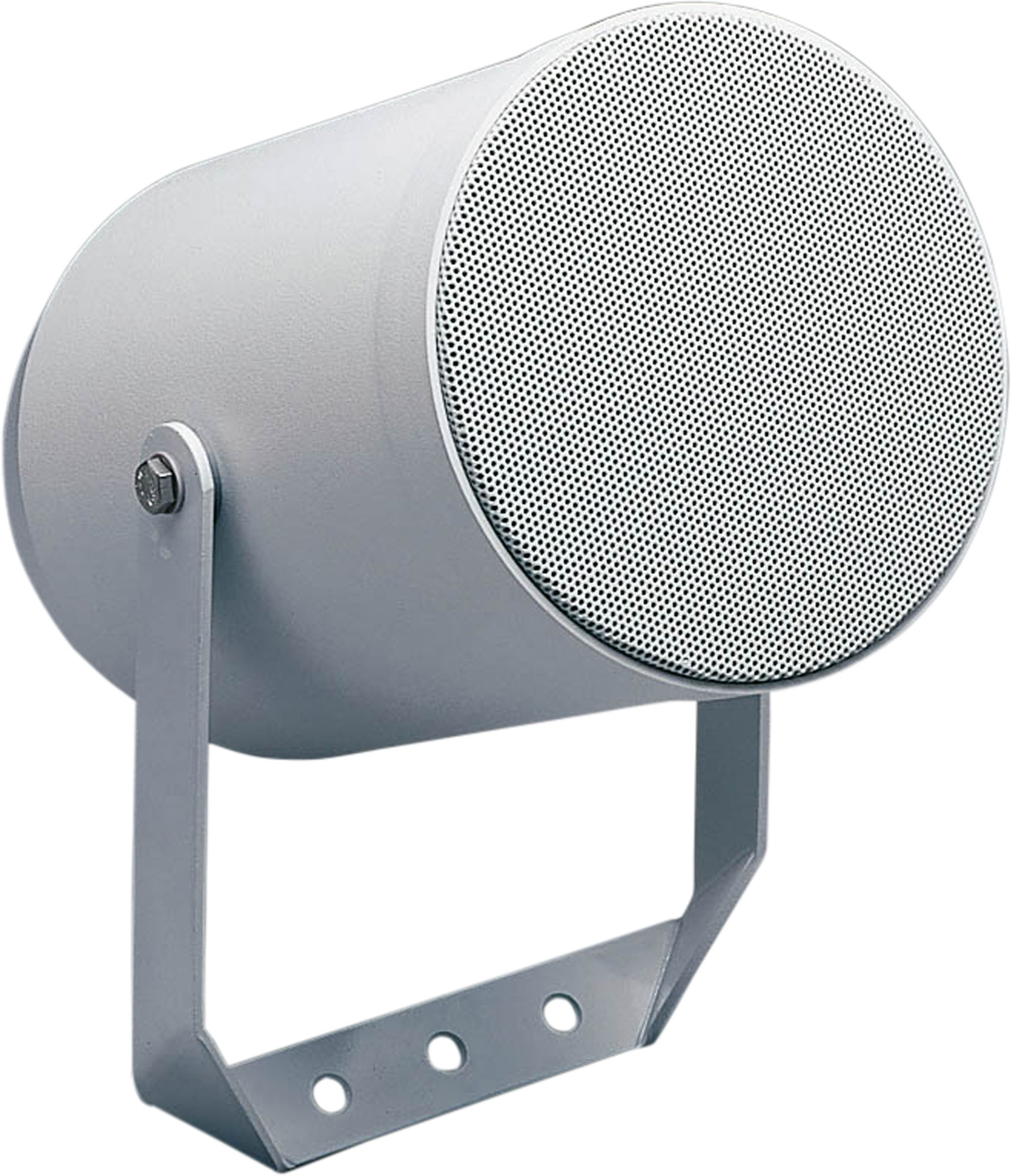

20W 100V IP65 Sound Projector PA Speaker

Manufacturer: Redback
SKU: C1520
The REDBACK PA sound projector speaker is made from strong UV stabilised ABS plastic with a perforated metal grill. It is designed for use in 100V line distributed systems. Sound projectors offer a wide dynamic range making them ideal for both paging and background
$153.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $153.64
2+ $140.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This Redback 100V line PA sound projector is made from strong UV stabilised ABS plastic with a perforated metal grill. It is fitted with a PA transformer with multi-tap selections and is designed for use in 100V line distributed systems. Sound projectors offer a wide dynamic range making them ideal for both paging and background music applications. Typical applications include sport stadiums, train station platforms, shopping centres, aquatic arenas, etc.

Features:

  • Tough UV stabilised high impact ABS construction
  • Durable powdercoated aluminium mounting bracket
  • Stainless steel grille & fixings
  • Exceptional music and speech reproduction
  • Selectable power taps
  • Uses a high efficiency driver and line transformer
  • Suitable for indoor or outdoor use
  • Includes 7-core cable for easy power tap selection
  • Fitted with supervisory capacitor for line monitoring.

Specifications:

Rated power: 20W

  • Tappings 100V line: 20/10/5/2.5W
  • Transformer Impedance: 500/1k/2k/4k Ohms 100V
  • Tappings 70.7V Line: 10/5/2.5/1.25W
  • Driver Impedance: 8 Ohms
  • Effective Frequency range: 110-18,000 Hz (BSEN60268-5)
  • S.P.L @1m, 1W, dB, Test Signal Bandwidth 100Hz-10kHz: 91
  • S.P.L @ Full Power, Octave Bandwidth: 104 dB
  • Acoustic Power (dB-PWL @1W) 1k/2kHz): 89/90 dB
  • Dispersion at 1k/2k Hz: 180/120°
  • Directivity Axial Q factor, 1k/2kHz: 2.6/5.6
  • IP Rating: 66
  • Max/Min Ambient Temp: 70°/-25°
  • Dimensions, front & depth: 138Ø x 204D mm
  • Net Weight: 1.6kg
  • Colour/Finish: White
  • Material: ABS Plastic with UV inhibitor and stainless steel hardware
  • Mounting: Aluminium U bracket

Warranty & Returns

5 Years

We Offer 5 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 5 Years
