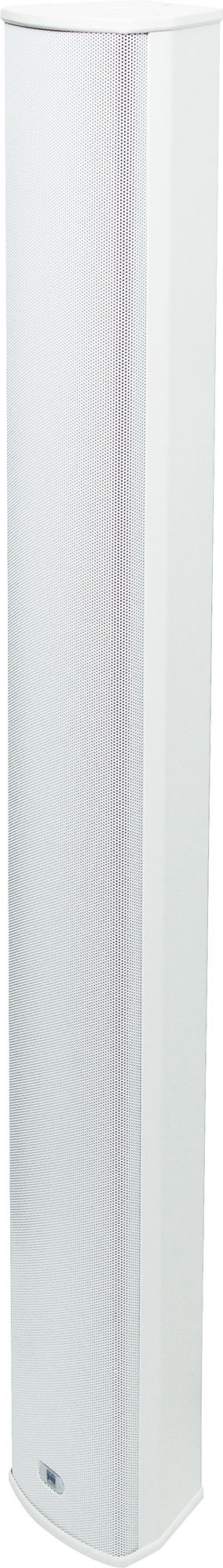

40W 100V Line / 8 Ohm IP66 White Column Speaker

Manufacturer: Redback
These stylish, compact 100V line column speakers utilise multiple 3.5” (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications
SKU: C0957A
$908.18
Per ea
QuantityPrice
ea$908.18
3+$840.91
6+$771.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These stylish, compact 100V line column speakers utilise multiple 3.5” (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications. Ideally suited for use in places of worship, lecture theatres, auditoriums, gymnasiums and school assembly areas. Their IP66 weatherproof construction makes them also suitable for installations in exposed areas, such as train platforms & pedestrian precincts.

The sound columns include a high grade multitap transformer allowing several power taps plus a low impedance setting. These are screwdriver selected from the rear panel (see specifications below for power tap details).

A heavy duty, diecast aluminium mounting bracket is included. This allows both horizontal and vertical adjustment, ensuring sound is directed where needed.

These Redback column speakers will provide excellent all-round performance while remaining architecturally unobtrusive.

Now fitted with 22uF bipolar capacitor for EWIS line monitoring use

Features

  • Durable extruded aluminium housing.
  • 22uf bipolar line monitoring capacitor
  • Attractive slimline construction.
  • Fitted with high specification drivers for exceptional speech & music reproduction.
  • Suitable for accurate, “long throw” applications.
  • Water protected to IEC529 IP66, suitable for indoor and outdoor use.
  • Durable aluminium alloy multi bracket (tested up to 1500 kgf).

Specifications:

Rated Power: 40W

  • Number of Loudspeakers: 8x 3.5" Woofer + 1x 3.25" Tweeter
  • Power Taps @100V: 40W, 20W, 10W, 5W
  • Power Taps @70V: 40W, 20W, 10W, 5W, 2.5W
  • SPL (1W/1m): 93dB
  • Max. SPL (Rated W/1m): 109dB
  • Frequency Range (-10dB): 110Hz ~ 20kHz
  • Dispersion 1kHz / 4kHz
  • Operating Temperature: -40°C ~ +60°C
  • Ingress Protection: IEC 529 IP66
  • Power Selection: 6 Core Cable
  • Material:
  • Housing: Extruded Aluminium
  • Grille: Aluminium
  • Colour: White
  • Mounting: Aluminium Alloy Multi Bracket
  • Net Weight (ea): 7.70kg
  • Dimensions: 960.0L x 114.0W x 96.0D mm




12 Months

We Offer 12 Months for this product
