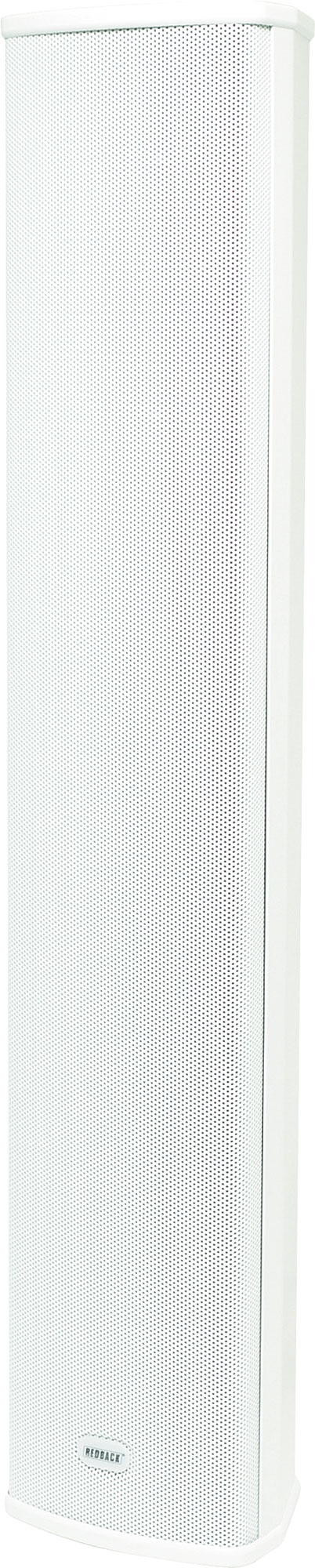

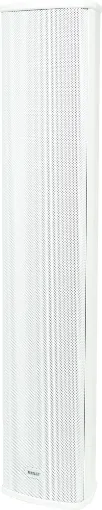

20W 100V Line / 4 Ohm IP66 White Column Speaker

Manufacturer: Redback
Now fitted with 22uF bipolar capacitor for line monitoring use. These stylish, compact column speakers utilise multiple 3.5" (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications.
SKU: C0951A
$544.55
Per ea
QuantityPrice
ea$544.55
3+$499.09
6+$453.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These stylish, compact 100V line column speakers utilise multiple 3.5” (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications. Ideally suited for use in places of worship, lecture theatres, auditoriums, gymnasiums and school assembly areas. Their IP66 weatherproof construction makes them also suitable for installations in exposed areas, such as train platforms & pedestrian precincts.

The sound columns include a high grade multitap transformer allowing several power taps plus a low impedance setting. Multicore cable is provided for power tap selection (see specifications below).

A heavy duty, diecast aluminium mounting bracket is included. This allows both horizontal and vertical adjustment, ensuring sound is directed where needed.

These Redback column speakers will provide excellent all-round performance while remaining architecturally unobtrusive.

Now fitted with 22uF bipolar capacitor for EWIS line monitoring use



Specifications:

Rated Power: 20W

  • Speakers: 4 x 88.9mm Woofer / 1 x 82.55mm Tweeter
  • 100V Power Taps: Common (red), 20W (white), 10W (blue), 5W (yellow) and 4Ω/20W (Green-Pos/Brown-Neg)
  • 70V Power Taps: Common (red), 10W (white), 5W (blue), 2.5W (yellow) and 4Ω/20W (Green-Pos/Brown-Neg)
  • Impedance: 500Ω, 1kΩ, 2kΩ and 4Ω
  • SPL (1W @ 1m): 92dB
  • SPL (Max W @ 1m): 105dB
  • Frequency Range (-10dB): 120Hz - 20KHz
  • Dispersion 1KHz/4KHz: Hor: 180°/90°, Vert: 45°/20°
  • Ingress Protection: IEC529 IP66
  • Power Selection: 6-Core Cable
  • Housing Material: Extruded Aluminium
  • Grille Material: Aluminium
  • Colour/Finish: White
  • Dimensions: 585L x 114W x 96Dmm
  • Protection: IP66 Rated
  • Mounting (included): Aluminium
  • Weight: 4kg

12 Months

We Offer 12 Months for this product
