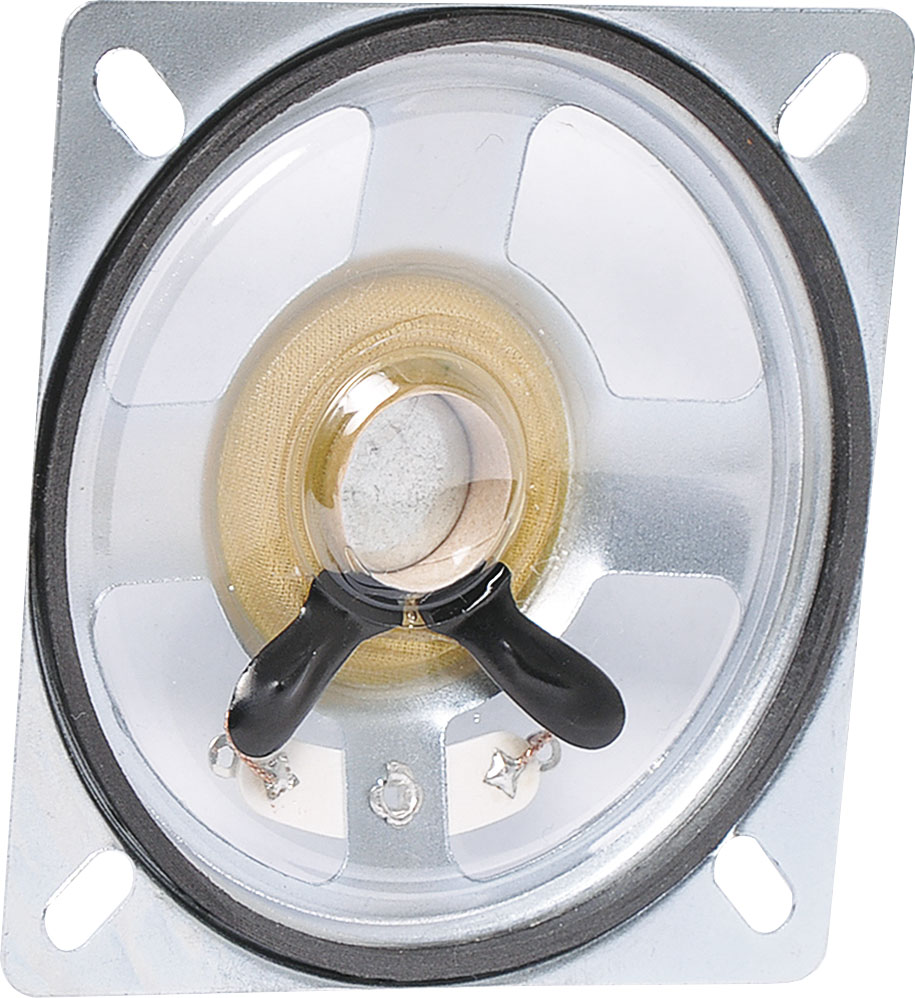

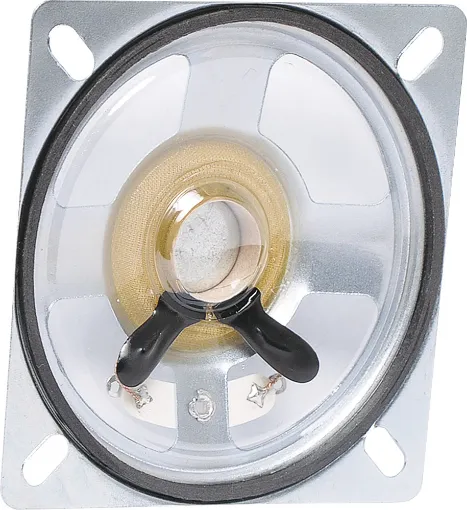

66mm 2W 8 Ohm Mylar Cone Speaker

SKU: C0614B
Sound Pressure Level: 89±2 dBA* Resonance Frequency (Fo): 300±20% Hz Frequency Range: Fo - 10,000 Hz Rated Impedance: 8±15% &#937 Rated Power: 1.0 W Max. Power: 2.0 W Magnet: Ø32 x Ø18 x 6 mm Ferrite Operating Temperature: -20ºC to 60ºC Storage Temperature: -30ºC to 70ºC Housing: Metal, 66mm
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
10+ $7.86
20+ $6.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This 2W 8Ω 66mm speaker features a unique mylar cone for a degree of weather resistance.

Specifications

Sound Pressure Level: 89±2 dBA*

  • Resonance Frequency (Fo): 300±20% Hz
  • Frequency Range: Fo - 10,000 Hz
  • Rated Impedance: 8±15% Ω
  • Rated Power: 1.0 W
  • Max. Power: 2.0 W
  • Magnet: Ø32 x Ø18 x 6 mm Ferrite
  • Operating Temperature: -20ºC to 60ºC
  • Storage Temperature: -30ºC to 70ºC
  • Housing: Metal, 66mm x 66mm
  • Depth: 20mm
  • Diaphragm Material: Mylar
  • Weight: 60g
  • * Tested at 0.5m, 1W, 500, 600, 1kHz Average.
