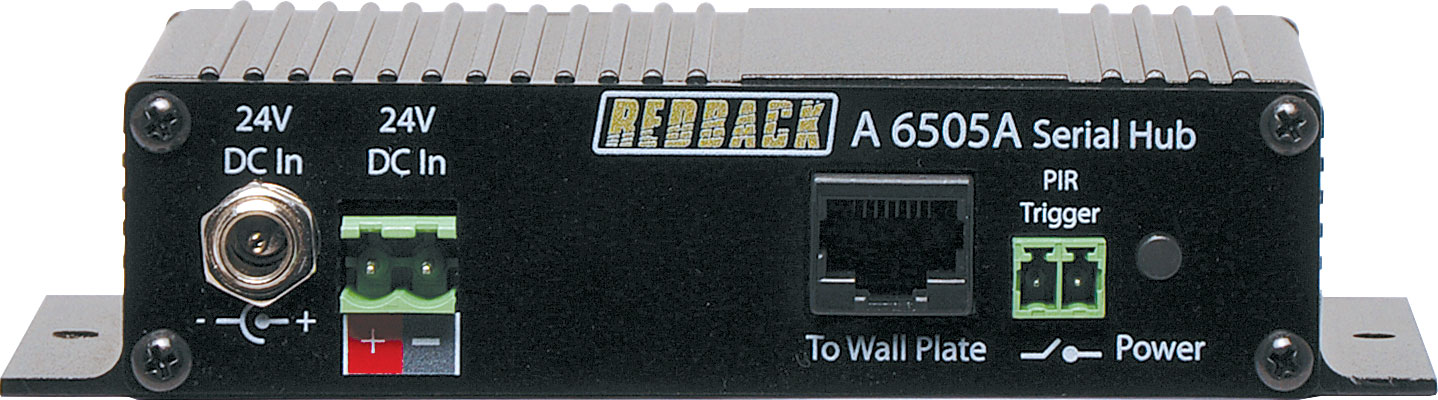

3 Relay, 2 Serial Control Hub With PIR Trigger

Manufacturer: Redback
Be the first to review this product
Designed to be used in conjunction with the A 6500A programmable touchscreen wallplate, this control hub enables the control of a variety of devices. Connection to the A 6500A wallplate is via Cat5/6 cable up to 50m away. Now with PIR trigger input.
SKU: A6505A
$277.27
Per ea
QuantityPrice
ea$277.27
2+$250.00
4+$231.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed to be used in conjunction with Redback Touch programmable touchscreen wallplates, this control hub enables the control of a variety of devices. Connection to the wallplate is via Cat5/6 cable up to 50m away. All commands from the programmed plate are then transported to this hub and the appropriate command signal being either serial (RS232/485 or both), IR or relay is then output to the corresponding pluggable terminals. Combined with the wallplate this could be used for controlling an AV system in a classroom, lecture theatre, board room etc. The serial outputs could be used to control a projector and amplifier, the IR for controlling a set top box and relays for motorised projector screen, lighting etc. A passive infra red (PIR) detector input allows for motion activation of devices, such as when people enter the room. Requires 24V DC power which in turn powers the wallplate.

Size: 66W x 131W x 29H inc flanges.

Features

  • Compatible with Redback Touch control wallplates or third party serial control systems.
  • Two RS232/485 inputs.
  • Three relay outputs.
  • PIR motion detect sensor trigger input.
  • Infra-red control input.
  • Wallplate connection via standard UTP cabling.
  • Powered by 24V DC input (passes power to wallplate – power supply sold separately)
  • Australian Designed & Manufactured.




Specifications

Input Connectors

  • Power connection (24V DC): 2.1mm DC socket, Euroblock terminal
  • Data: RJ45 8P8C

Output Connectors

  • Relay (1-3) Switched Out: Screw Terminals
  • NOTE: Relays rated for low power, typical 24V DC switching
  • IR Out: Screw Terminals
  • Serial Out (RS232 & RS485): Screw Terminals

Mechanical

  • Dimensions: 90W x 131D x 30H
  • Current Draw: 50mA (idle) 150mA (Max)
  • Weight:0.18kg

10 Years

We Offer 10 Years for this product
