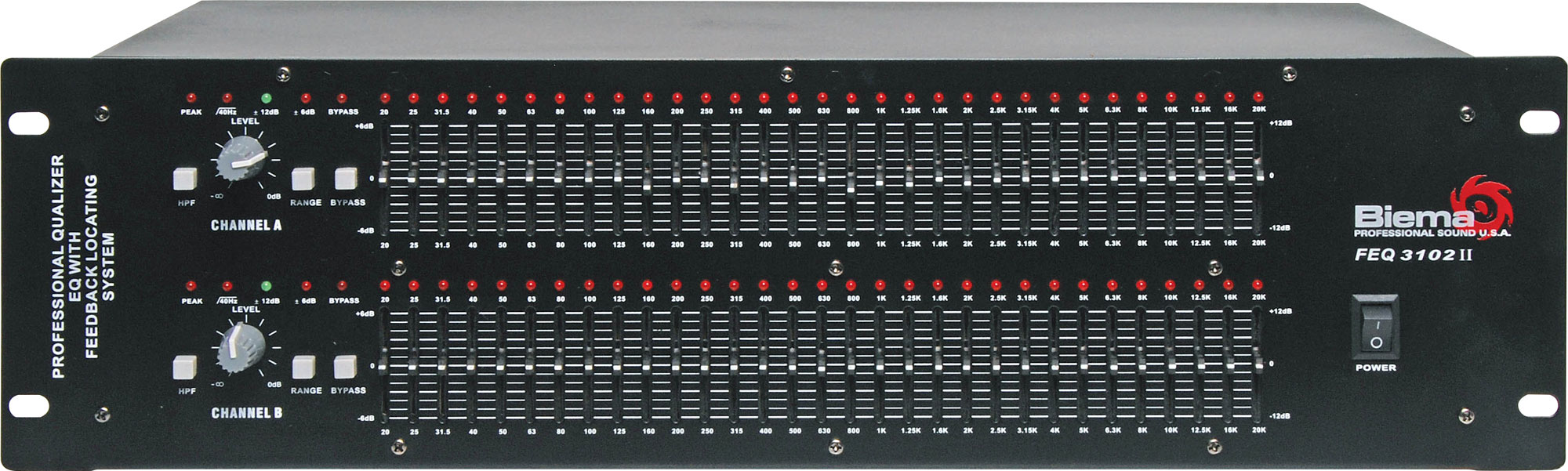

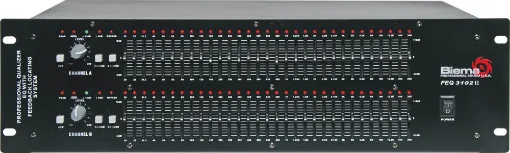

2 Channel 31 Band EQ With Feedback Detection

Manufacturer: Biema
SKU: A5332
This professional unit delivers outstanding equalisation both in live or studio applications. Invaluable for counteracting poor room or venue acoustics. The design employs ultra low noise audio amplifiers with high quality components for outstanding sou
$499.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $499.09
2+ $453.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This professional unit delivers outstanding equalisation both in live or studio applications. Invaluable for counteracting poor room or venue acoustics. The design employs ultra low noise audio amplifiers with high quality components for outstanding sound reproduction. Each channel has 31 frequency bands, each adjustable plus or minus 12dB. It also includes feedback LED indicators for each channel. This allows feedback to be reduced or eliminated by “notching out” ie. reducing the system frequency response at the offending frequency sector. Usually connected between the pre amp out and power input of the sound system amplifier. High pass selectable filter switch provide 12dB per octave below 40Hz. 3 pin XLR and 6.35mm sockets offer balanced connections. A switch is provided to bypass all control settings. Overall output is controlled by the level control.

Specifications:

Input impedance: 20KΩ (bal.)

  • Maximum input level: ≥16dB
  • Connections: Balanced XLR, 6.35mm jack
  • Output impedance: 100Ω
  • Maximum output level: ≥15dB
  • Equaliser control 31 band (1/3 octave)
  • High pass filter: 40Hz 12dB/octave
  • Feedback threshold LED: ≥-22dB
  • Peak sensitivity: Lit 3dB before clip point
  • Frequency response: 20Hz - 20KHz (±0.5dB)
  • THD + S/N %: <0.1% (20Hz - 20KHz @ 0dB)
  • S/N ratio: ≥90dB
  • Power supply: 240VAC
  • Dimensions: ≈482W x 230D x 132Hmm
  • Weight: 5.4kg

Features:

  • 19" rack mount
  • 31 bands of adjustment 1/3 octave
  • Ultra low distortion
  • Balanced inputs and outputs
  • ±12dB on each band
  • High pass filter
  • EQ bypass switch
  • Master level control

Warranty & Returns

12 Months

We Offer 12 Months for this product
