5 Pin XLR PTT Microphone Wallplate UTP Transmitter

Manufacturer: Redback
Be the first to review this product

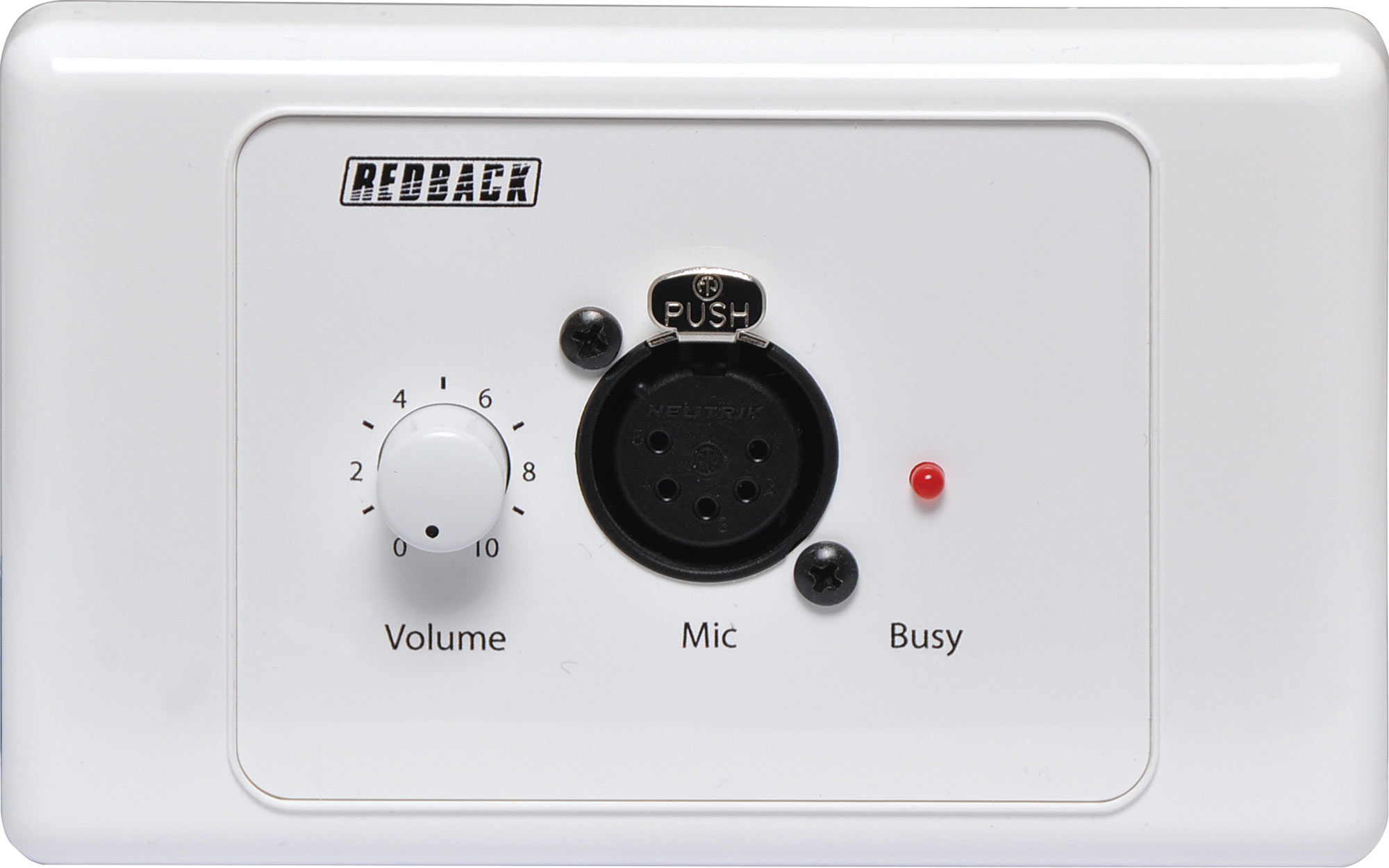

The A5138 UTP wall plate has a standard 5 Pin XLR connector for connection of microphones with PTT switches.
SKU: A5138
$181.82
Per ea
Quantity Price
ea $181.82
2+ $168.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This UTP transmitter wall plate has a standard 5 Pin XLR connector for connection of microphones with PTT switches. This connection is ideal for typical supermarket microphones such as Redback C 0325 or C 0327. The low output level of the microphone is converted to a high level output which is fed down the Cat5 UTP cabling. The output level can be adjusted by the volume control.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Specifications

Input Mic Level Sensitivity: 3mV

  • Output Connector: RJ45 8P8C
  • Input Connector: 5 pin XLR balanced

10 Years

We Offer 10 Years for this product
