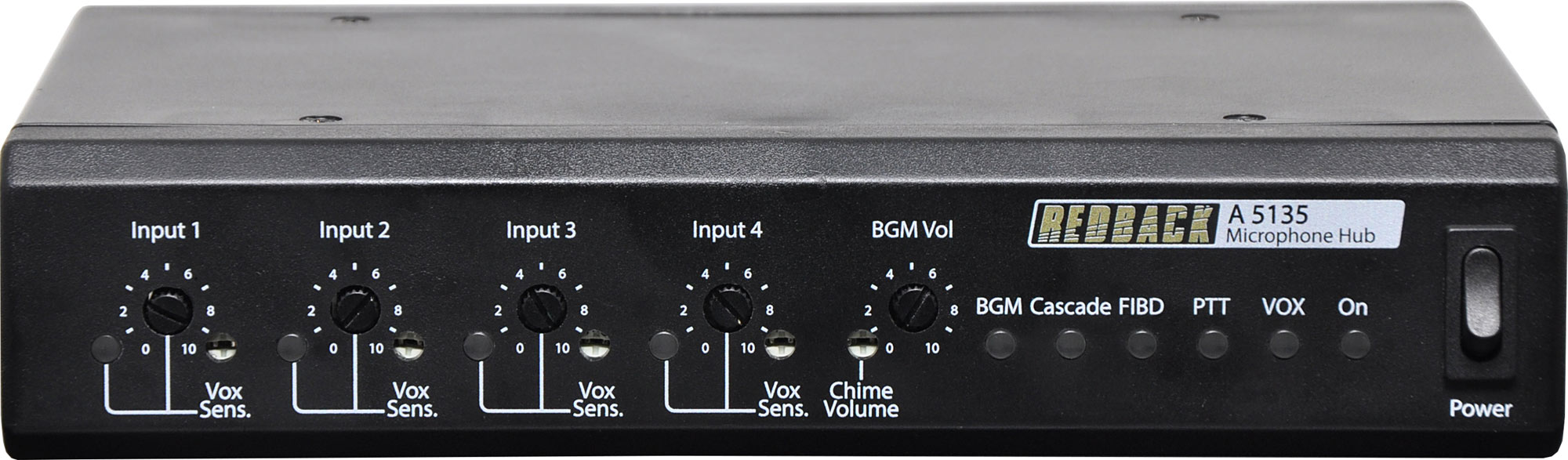

4 Input Microphone Hub

Manufacturer: Redback
Be the first to review this product
Designed with small supermarkets in mind. We've designed the hub to cater for industry standard supermarket 5 pin XLR microphones which connects to a local wallplate (A 5138) over a Cat5/6 cable.
SKU: A5135
$395.45
Per ea
Quantity Price
ea $395.45
2+ $363.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This microphone hub has been designed with small supermarkets in mind. We’ve designed the hub to cater for industry standard supermarket 5 pin XLR microphones which connects to a local wallplate (A 5138) or other Redback UTP transmitter over Cat5/6 cable. This greatly simplifies the install cabling process for multiple microphone systems. Up to four microphones can be connected to one hub with each input configurable to either VOX or PTT muting. Three levels of priority are provided: FIBD, 1 over 2-4, 2 over 3-4, 3 over 4 or mixed options. System busy LED’s are included on each wallplate.













Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Connects to four paging microphones via A 5138 wallplates or other Redback UTP transmitter at each location
  • Built for supermarkets, food outlets or anywhere multiple paging microphones are in use
  • Easy Cat5e/6 cabling back to hub
  • Adjustable VOX sensitivity
  • PTT muting
  • 24V DC operation
  • BGM input
  • Balanced & line outputs
  • Australian designed & assembled.




Specifications

Output Connectors

  • Audio Outputs: Dual RCA, Euroblock terminals

Output Connectors

  • Wall Plate Inputs: RJ45 8P8C
  • 24V DC Power: 2.1mm JACK (centre +ve)
  • 24V DC Power: Euroblock terminals
  • BGM Input: Dual RCA

Controls

  • Volume1-4: Front Volume
  • Vox Sensitivity 1-4: Front Adjust
  • Chime Volume: Front Adjust

General

  • Indicators: BGM Active, PTT Muting, VOX Muting, Cascade Mode, FIBD Mode, On
  • Power Supply: 24V DC @ 1 Amp
  • Dimensions: 210W x 122D x 44H
  • Weight: 0.4 kg
  • Balanced Output Level: 1V
  • Output Line Level: 1V
  • BGM Input Line Level: 1V

10 Years

We Offer 10 Years for this product
