5 Pin XLR Transmitter Wallplate

Manufacturer: Redback
Be the first to review this product

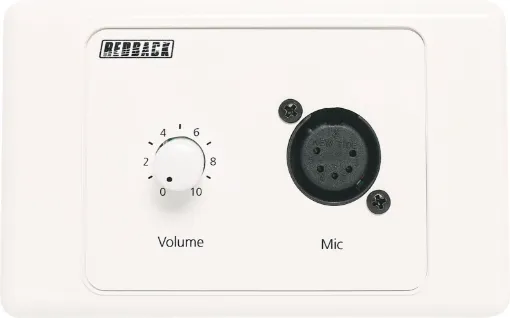

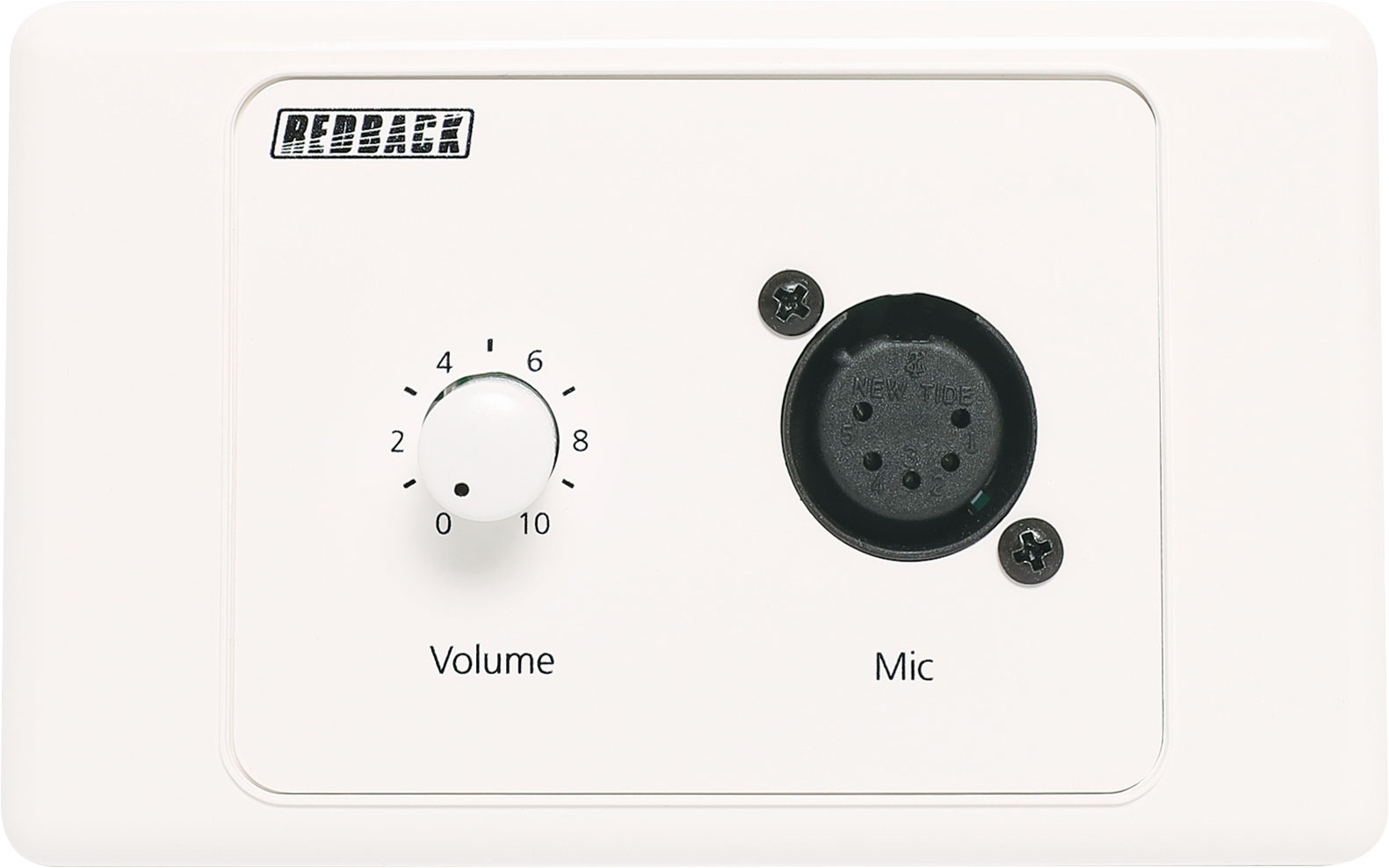

This handy interface wallplate allows balanced signals to be transmitted over long distances using economical UTP data cabling.
SKU: A4953
$172.73
Per ea
Quantity Price
ea $172.73
2+ $159.09
4+ $150.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 5 pin XLR UTP transmitter sends signals to compatible Redback UTP solutions receivers and converts the signal to a balanced XLR output with PTT connection. The output level is DIP switch selectable, and the output volume is adjusted via the volume knob on the front of the unit. Power is supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix).

The Redback® A4953 can be connected to the A 4954 or other compatible Redback® product. Carries the balanced output and push-to-talk (PTT) signal to the A4954 ensuring seamless operation for paging microphones (PTT connects to pins 4 and 5 of the XLR socket).




All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Connects via RJ45 UTP cabling
  • Point to point connection
  • DIP switch selectable sensitivity
  • Level control
  • Fits into a single gang wallbox
  • 24V DC input




10 Years

We Offer 10 Years for this product
