3 Pin XLR Cat5 Extender (Receiver)

Manufacturer: Redback
Be the first to review this product

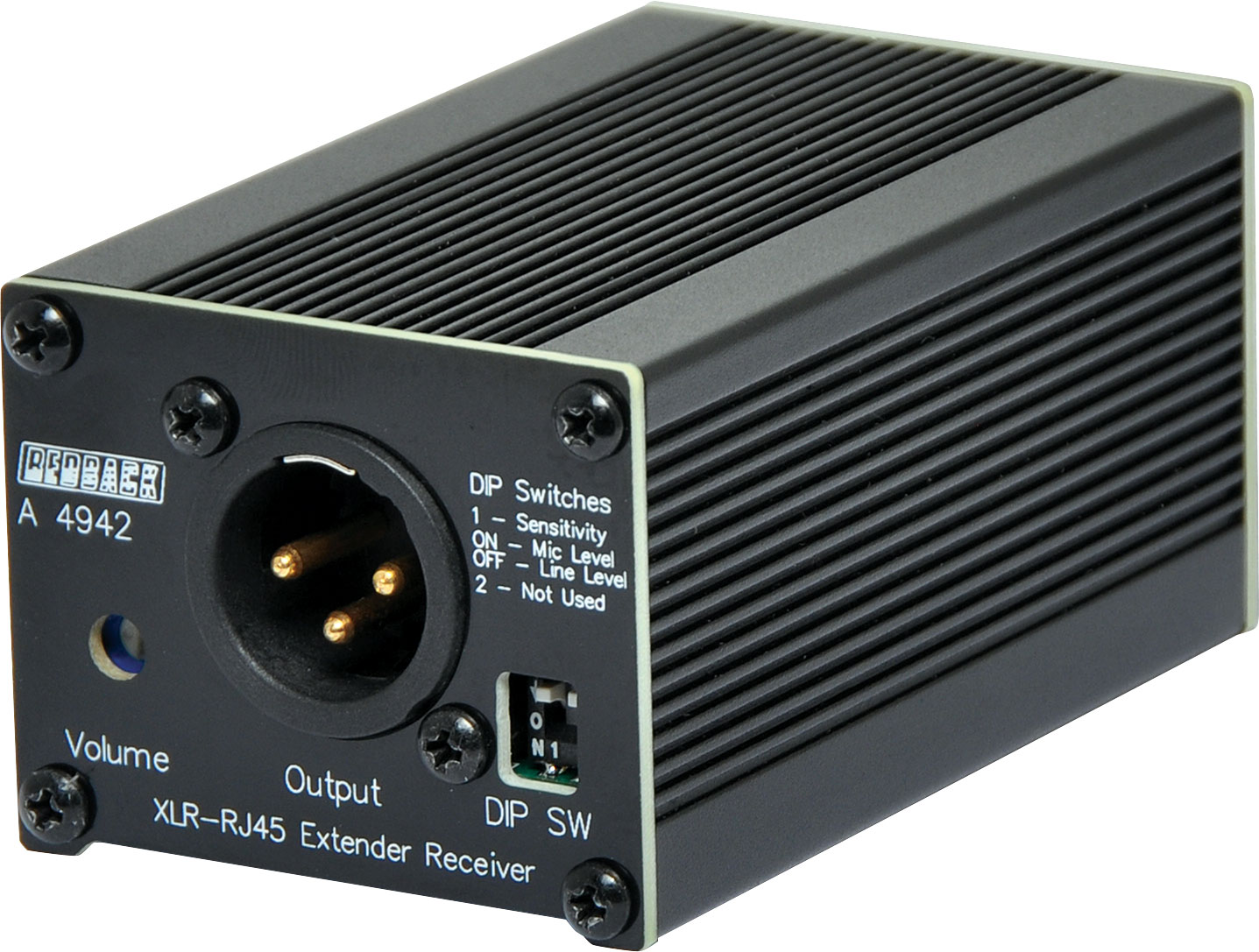

The Redback® A 4942 receives audio from compatible Redback® Cat5e/6 transmitters and converts the signal to a balanced XLR output. The output level is DIP switch selectable, and the ouput volume is screwdriver adjusted via the trimpot on the front of the unit.
SKU: A4942
$172.73
Per ea
Quantity Price
ea $172.73
2+ $159.09
4+ $150.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 3 pin XLR UTP receiver accepts signals from compatible Redback UTP solutions transmitters and converts the signal to a balanced XLR output. The output level is DIP switch selectable, and the output volume is screwdriver adjusted via the trimpot on the front of the unit.The unit is powered from 24V DC, which can be connected to the DC socket on the rear, or it can be supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix). A 24V DC plugpack is supplied for connection to the DC socket.

The Redback A 4942 can be connected to compatible Redback products such as the A 4940 and A 4944.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Connects via RJ45 UTP cabling
  • Point to point connection
  • 3 pin models allow mic or line level connection
  • DIP switch selectable sensitivity
  • Level control
  • 24V DC input




10 Years

We Offer 10 Years for this product
