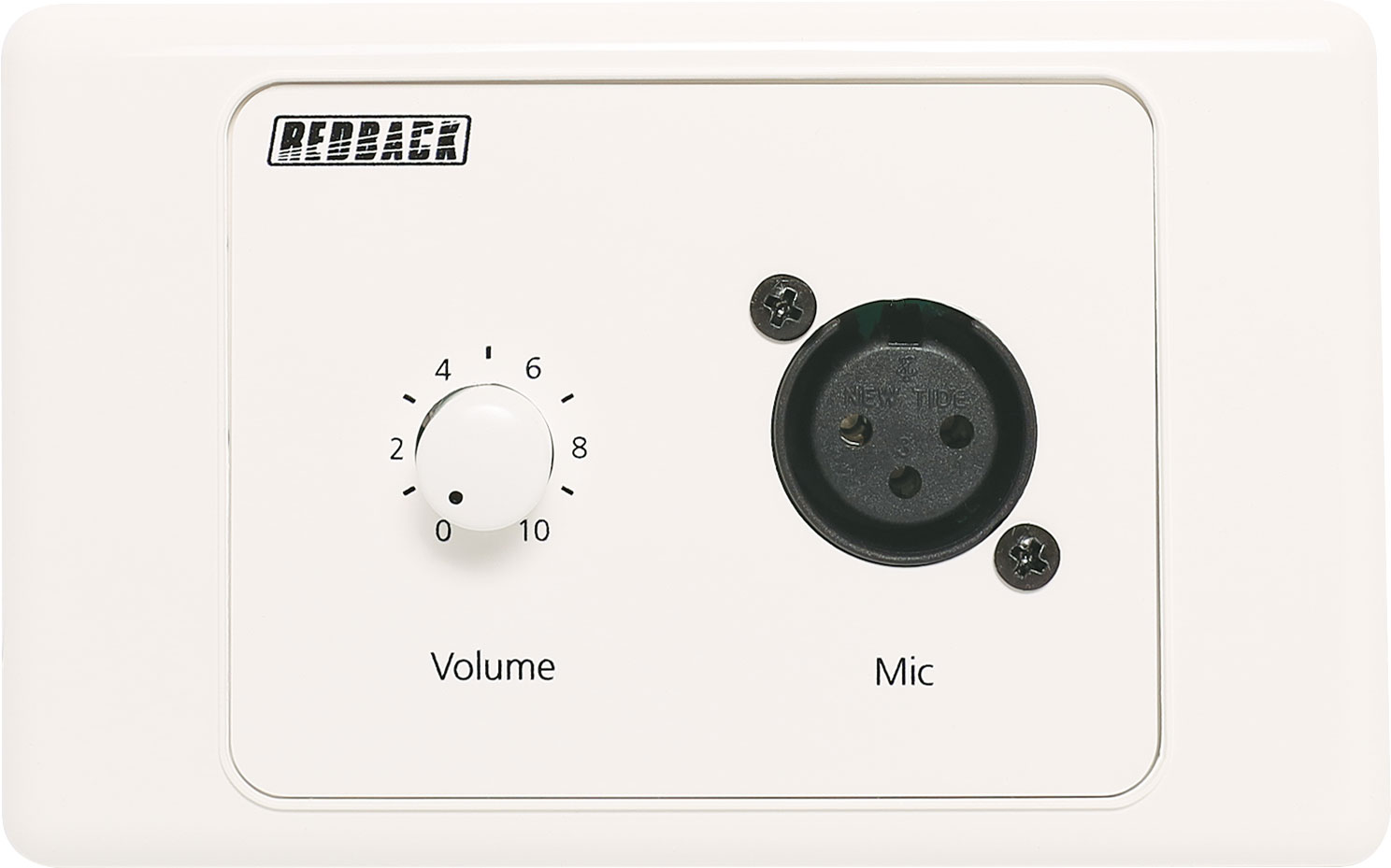

3 Pin XLR Transmitter Wallplate

Manufacturer: Redback
Be the first to review this product
This handy interface wallplate allows balanced signals to be transmitted over long distances using economical UTP data cabling.
SKU: A4941
$172.73
Per ea
Quantity Price
ea $172.73
2+ $159.09
4+ $150.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 3 pin XLR UTP transmitter wall plate sends signals to compatible Redback UTP solutions receivers. It converts a balanced XLR signal to an RJ45 connection suitable for transmission over Cat5/6 UTP cabling. The input level is DIP switch selectable, and the input volume is adjusted via the volume knob on the front. The unit is powered from 24V DC, which can be connected to the DC socket on the rear, or it can be supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix). A 24V DC plug pack is supplied for connection to the DC socket. The Redback A4941 can be connected to compatible Redback® products such as the A4942.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Connects via RJ45 UTP cabling
  • Point to point connection
  • Allows mic or line level connection
  • DIP switch selectable sensitivity
  • Level control
  • Fits into a single gang wallbox
  • 24V DC input




10 Years

We Offer 10 Years for this product
