3 Pin XLR Cat5 Extender (Transmitter)

Manufacturer: Redback
Be the first to review this product
Allows balanced signals to be transmitted over long distances using economical UTP data cabling.
SKU: A4940
$172.73
Per ea
Quantity Price
ea $172.73
2+ $159.09
4+ $150.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

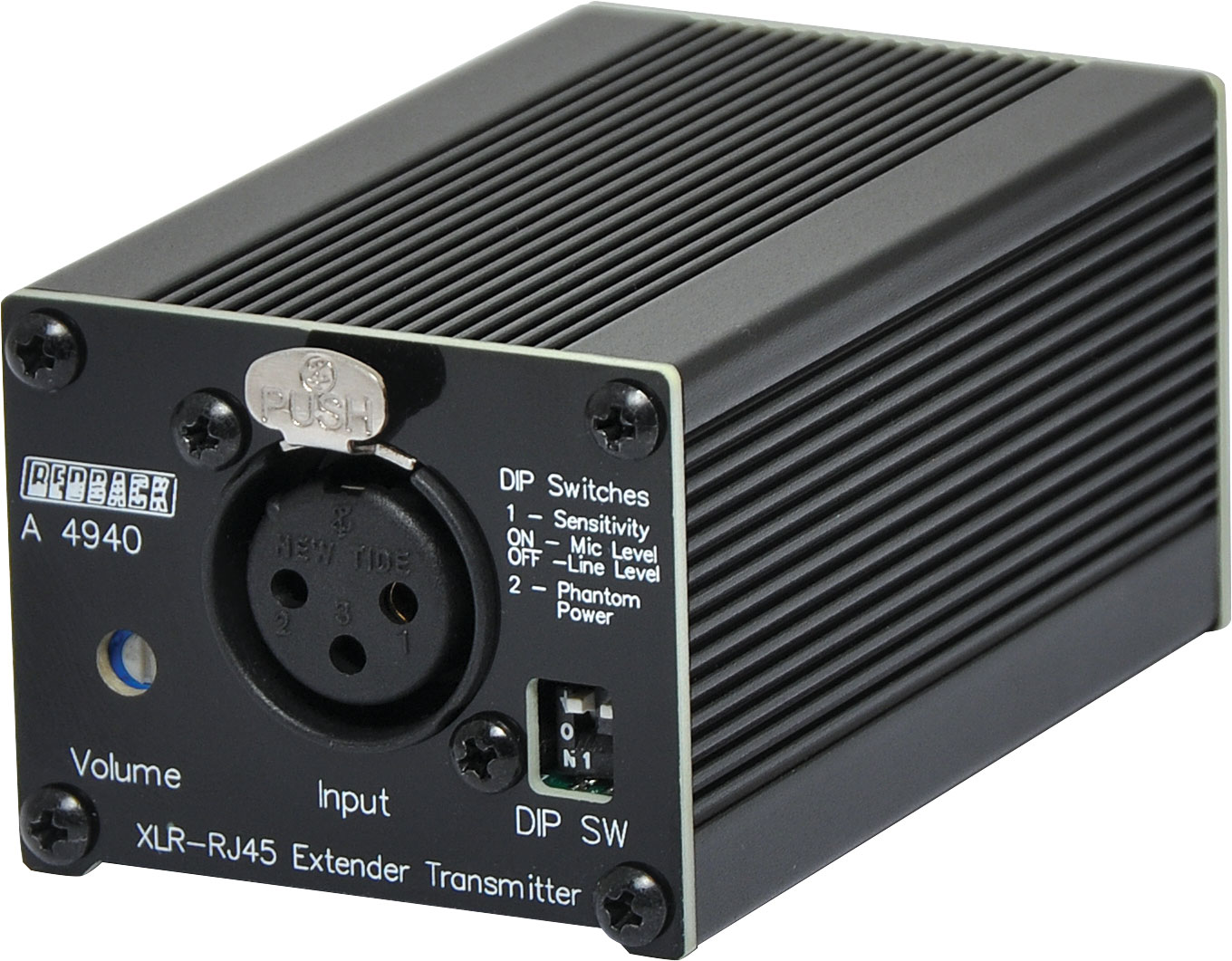

This 3 pin XLR UTP transmitter sends signals to compatible Redback UTP solutions receivers. It converts a balanced XLR signal to an RJ45 connection suitable for transmission over Cat5/6 UTP cabling. The input level is DIP switch selectable, and the input volume is screwdriver adjusted via the trimpot on the front of the unit. The unit is powered from 24V DC, which can be connected to the DC socket on the rear, or it can be supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix).

The A 4940 can be connected to compatible Redback products such as the A 4942.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Connects via RJ45 UTP cabling
  • Point to point connection
  • 3 pin models allow mic or line level connection
  • DIP switch selectable sensitivity
  • Level control
  • 24V DC input




10 Years

We Offer 10 Years for this product
