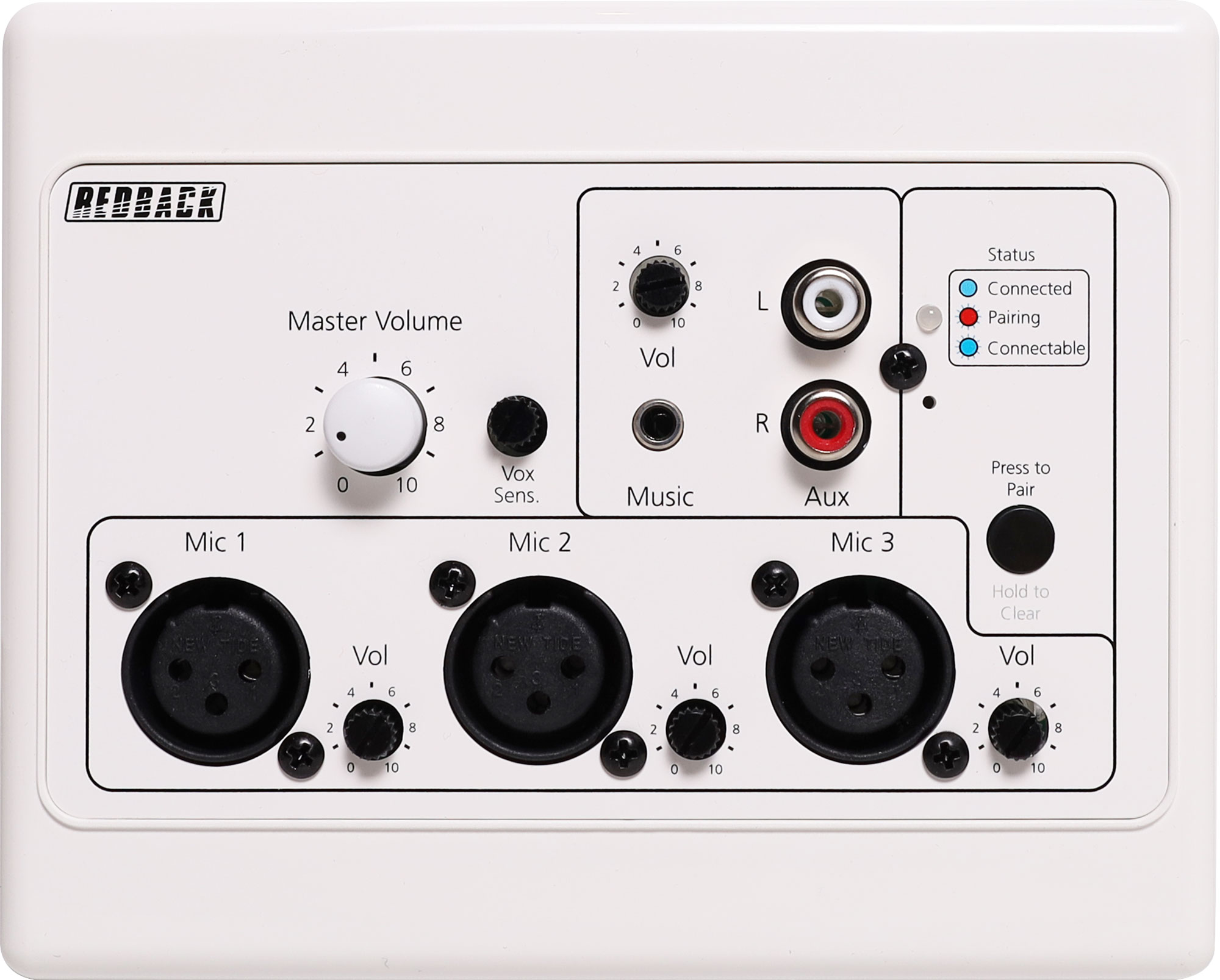

3 Input XLR Mic/Line Pre-Amp Bluetooth Wallplate

Manufacturer: Redback
Be the first to review this product
These local zone input wallplates allow for multiple mic/line inputs to be sent over UTP cabling back to a single UTP receiver for connection to a zone amplifier. This model also features bluetooth audio streaming for local zone playback of music.
SKU: A4937
$250.00
Per ea
Quantity Price
ea $250.00
2+ $236.36
4+ $222.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These local zone input wallplates allow for multiple mic/line inputs to be sent over UTP cabling back to a single UTP receiver for connection to a zone amplifier. This model also features bluetooth audio streaming for local zone playback of music. It also connects to the Redback A 4480B directly allowing multiple microphones to be connected to a single zone input. All audio inputs are mixed with individual level controls.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Standard dual gang wallplate
  • Connects via RJ45 UTP cabling
  • Mixed audio output
  • Bluetooth 5.1 audio streaming receiver in-built
  • 30m clear light of sight BT streaming range.
  • Connects to A 4942 balanced UTP receiver or other Redback UTP compatible products.
  • Individual & master level controls
  • Stereo RCA input
  • 24V DC input via Cat5 UTP cable from connected equipment
  • 3 pin XLR mic/line level inputs




Specifications

Frequeny Response

  • Mic input: 140Hz - 20kHz
  • Aux input: 140Hz - 20kHz
  • Music input: 140Hz - 20kHz

Input Sensitivity

  • Mic input: 1mV - 13mV balanced
  • Aux input: 40mV - 800mV balanced
  • Music input: 40mV - 800mV balanced

Connectors

  • Mic Input: 3 pin XLR
  • Aux Input: 2 x RCA
  • Music Input: 3.5mm Stereo Socket

General

  • BT version: 5.1
  • BT range: Up to 30m (clear line of sight)
  • Output: RJ45 8P8C
  • Data transmission: Cat5e/6 cabling (max 300 metres)
  • Weight: ˜0.19kg
  • Dimensions: ˜ 145mm(L) x 115mm(W) x 50mm(H)
  • Power: Powered over Cat5e/6 cable

10 Years

We Offer 10 Years for this product
