Microphone/Line Pre Amplifier Wallplate

Manufacturer: Redback
Be the first to review this product
This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4930 Hub.
SKU: A4931
$181.82
Per ea
Quantity Price
ea $181.82
2+ $168.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

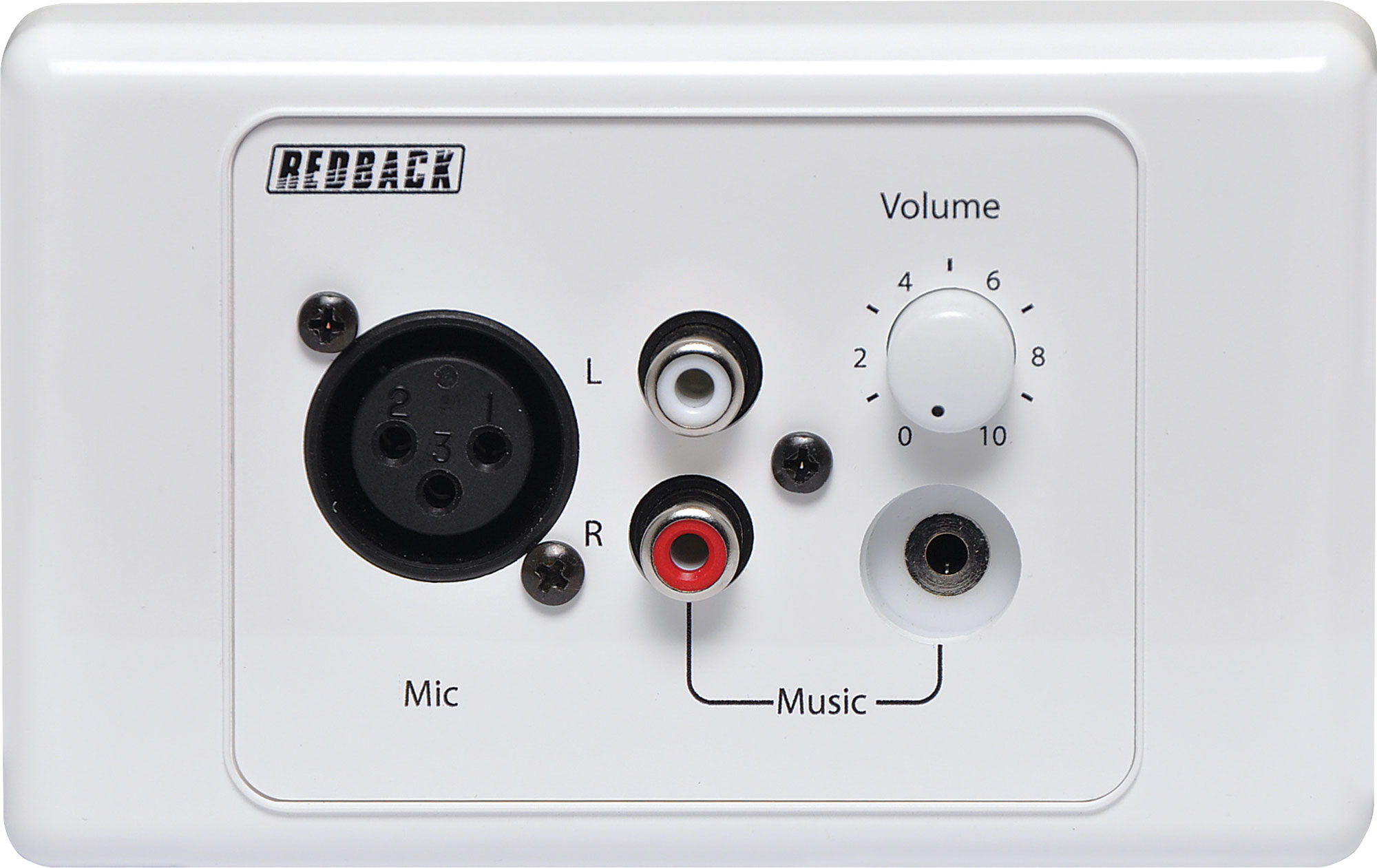

This mic/line pre-amplifier wall plate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to a Redback compatible UTP receiver unit. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. Power is supplied to the wall plate over the UTP cabling.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Use with Redback A4480B and A4432
The wall plate provides a means of overriding the input to a zone with a local input source located in that zone. An example may be a mobile phone for background music or a microphone for speeches at a wedding function.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Specifications

Input Mic Level Sensitivity: 3mV

  • Input Line Level Sensitivity: 1V
  • Music Input Level Sensitivity: 500mV
  • Output Connector: RJ45 8P8C
  • Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm JACK

10 Years

We Offer 10 Years for this product
