Single Output Microphone/Line Hub

Manufacturer: Redback
Be the first to review this product
A single mic/line output box designed to operate with A 4931 and A 4932 zone connection boxes.
SKU: A4928
$200.00
Per ea
Quantity Price
ea $200.00
2+ $181.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

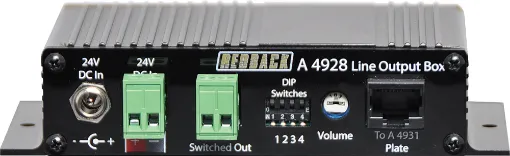

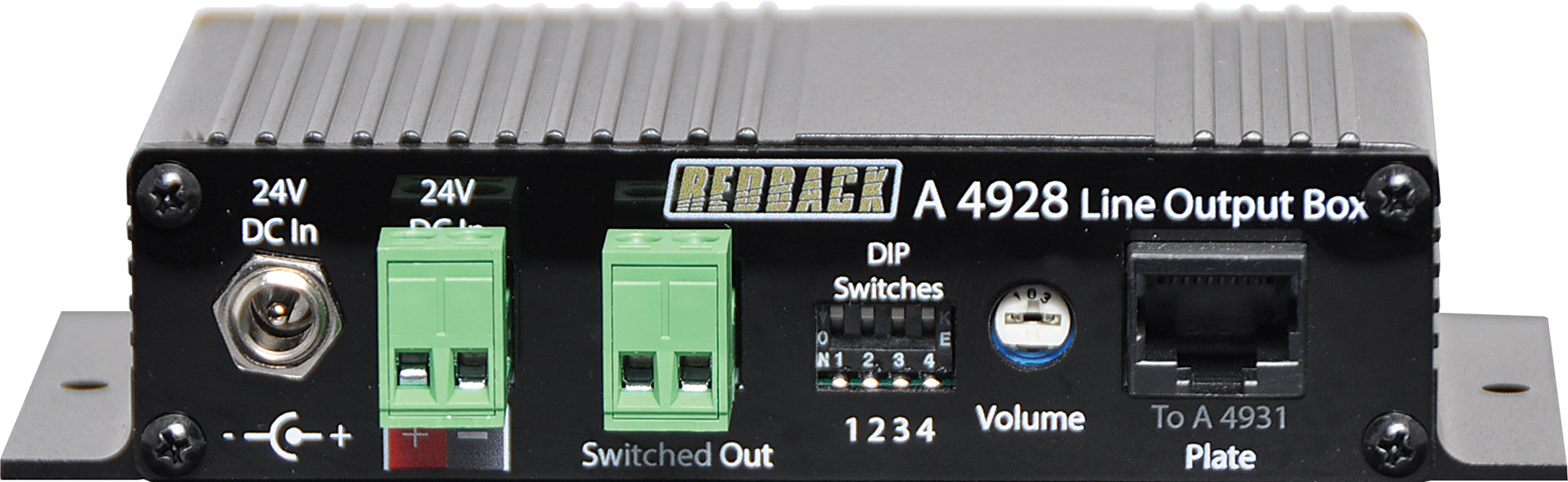

This single output microphone/line hub is designed to accept audio from a preamp UTP wallplate or compatible transmitter box. Accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4928. The unit is equipped with a dedicated balanced or unbalanced output, with volume control. Output has DIP switch selectable balanced mic/line, or unbalanced line level output which can be fed directly into amplifiers. Powered by 24V DC from the supplied plugpack.





Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

  • Connects to a variety of compatible Redback UTP transmitters
  • Easy Cat5e/6 UTP data cabling connection.
  • Up to 300m cable runs out to wallplate/box.
  • Balanced Euro terminal block connections.
  • Balanced mic or line level operation.
  • 24V DC operation.
  • Australian designed & assembled.




Specifications

Input Mic Level Sensitivity: 3mV

  • Input Line Level Sensitivity: 1V
  • Music Input Level Sensitivity: 500mV
  • Output Connector: RJ45 8P8C

10 Years

We Offer 10 Years for this product
