200W Subwoofer Amplifier

Manufacturer: Redback
SKU: A4861
A compact dedicated subwoofer amplifier providing up to 200W into 4 ohms. Ideally paired with the A 4860 and C 1065 ceiling subwoofer, but is also suitable for any passive subwoofer. Ideal for integration with commercial systems in fashion boutiques, shopping centres, gymnasiums etc. Front panel provides level control, phase adjustment and crossov
$472.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $472.73
2+ $431.82
4+ $409.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

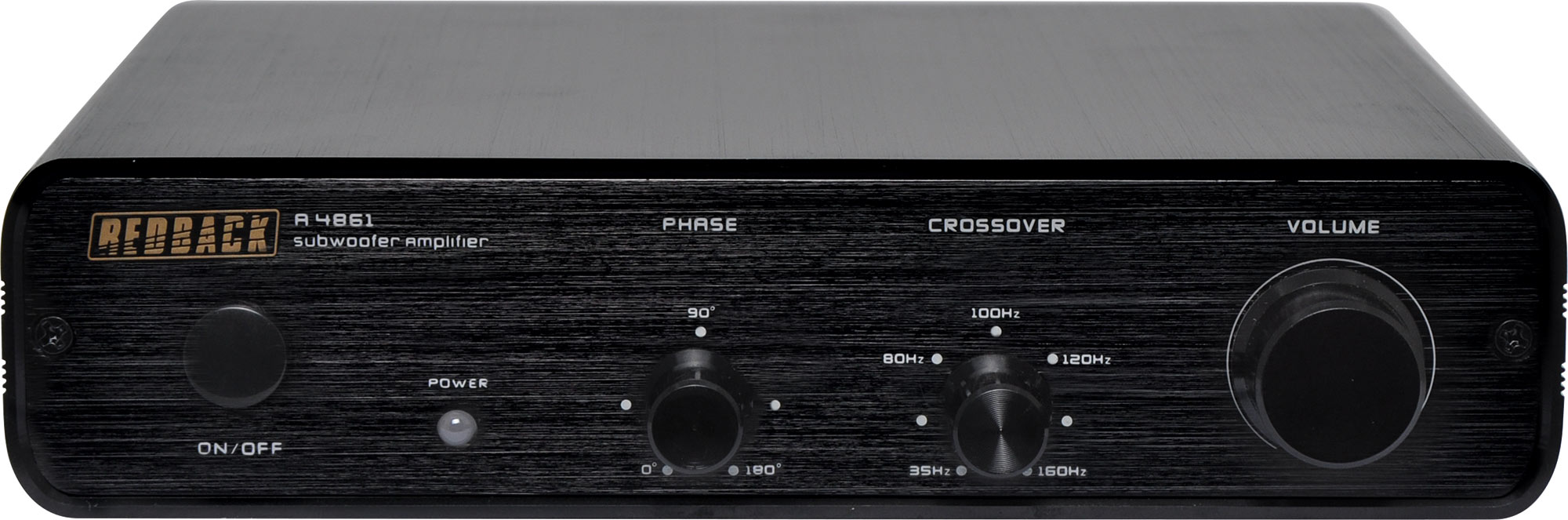

A compact dedicated subwoofer amplifier providing up to 200W into 4 ohms. Ideally paired with the A 4860 and C 1065 ceiling subwoofer, but is also suitable for any passive subwoofer. Ideal for integration with commercial systems in fashion boutiques, shopping centres, gymnasiums etc. Front panel provides level control, phase adjustment and crossover frequency selection (35Hz - 160Hz). Stereo RCA and speaker level input/outputs provided. Size: 200W x 48H x 220Dmm.

Features

  • 200W into 4 ohms
  • Stereo RCA input
  • Speaker level input and outputs
  • Adjustable phase and crossover frequency
  • Volume level control
  • 240V AC operation


Connection diagram

Specifications

Power Output: 200W (RMS @ 4Ω)

  • Total Harmonic Distortion (THD): <1%(Rated power: 200W @ 4Ω)
  • Adjustable Low Pass Crossover: 35Hz ~ 160HZ
  • Frequency Response: 20Hz~20KHz +0/-2dB@ -3dB
  • Line Level Input Sensitivity: 200mV
  • Phase Range: 0 ~ 180°
  • Auto Turn-on Sensitivity: 2mV @ 50 Hz
  • Trigger In: 12VDC
  • Thermal Protection: Yes
  • AC Input: Voltage 115V or 230V
  • Dimension: 200mm x160mm x 47.5mm (WxDxH)
  • Weight: 1.32kg

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
