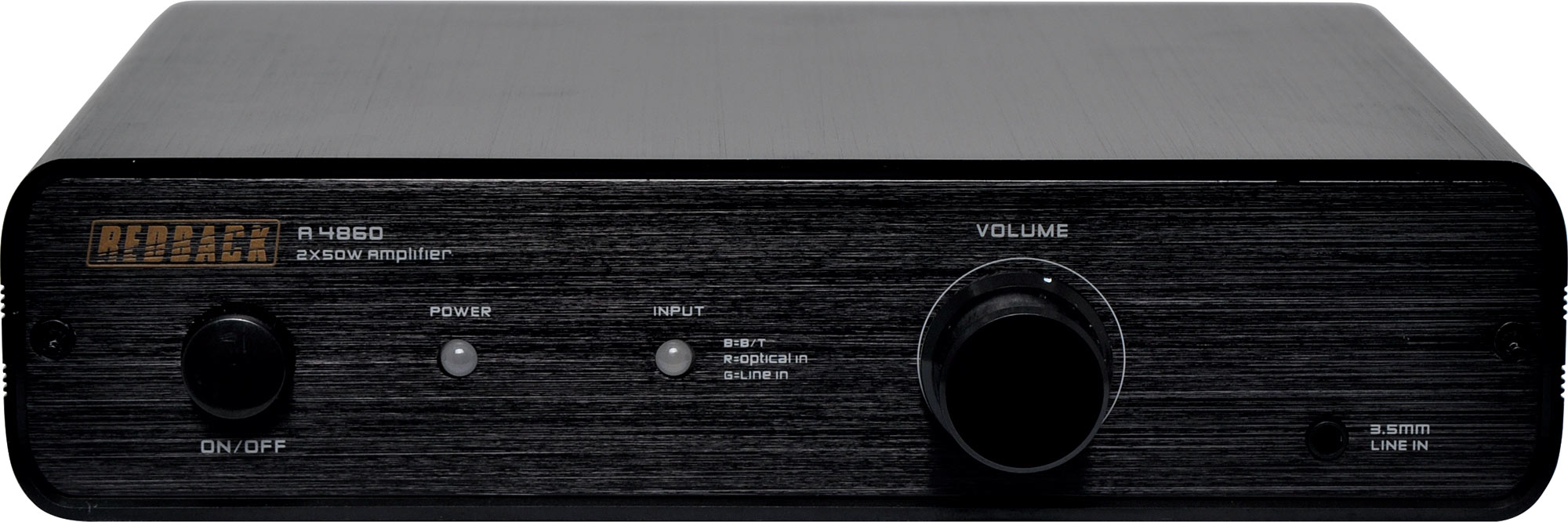

2 x 50W Bluetooth Amplifier

Manufacturer: Redback
Be the first to review this product
A compact bluetooth stereo amplifier for home and commercial sound systems. Features a high spec Class-D 2x50W RMS amplifier and optical input for connection to digital audio sources. Pairs well with the A4861 200W subwoofer amplifer.
SKU: A4860
$335.45
Per ea
QuantityPrice
ea$335.45
2+$304.55
4+$271.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact stereo class-D amplifier features Bluetooth 4.2 streaming with in-built optical input for digital audio sources. The amplifier is also fitted with 3.5mm stereo jack and stereo RCA inputs for connection to external audio sources. Bluetooth takes priority over all other inputs, providing easy wireless streaming when you need it. The 2 x 50W RMS output is ideal for small retail environments. It is perfectly paired with the A 4861 subwoofer amplifier and C 1065 ceiling mount subwoofer for added musical performance.

Features

  • Class-D 2 x 50W amplifier
  • Bluetooth 4.2 wireless streaming
  • Stereo RCA & 3.5mm jack inputs
  • Optical input with high performance DAC
  • Automatic signal switching with priority for Bluetooth audio source
  • 240V AC operation


Connection Diagram

Specifications:

Power output: 25W x 2 (RMS @ 8Ω)

  • 50W x 2 (RMS @ 4Ω)
  • Distortion: <1 %( rated power: 50w @ 4Ω) output: 4-8Ω signal to noise ratio:>92 dB A WTD
  • Frequency response: 20Hz – 20KHz +0/-2dB@ -3dB
  • Sub out frequency: 100Hz/1V
  • Line level input sensitivity: 700mV
  • Channel separation: 50dB
  • Bluetooth: 4.2
  • Protection: Overload, speaker short circuit
  • Dimensions: 200W x 125D x 48H mm
  • Weight: ≈0.6kg

12 Months

We Offer 12 Months for this product
