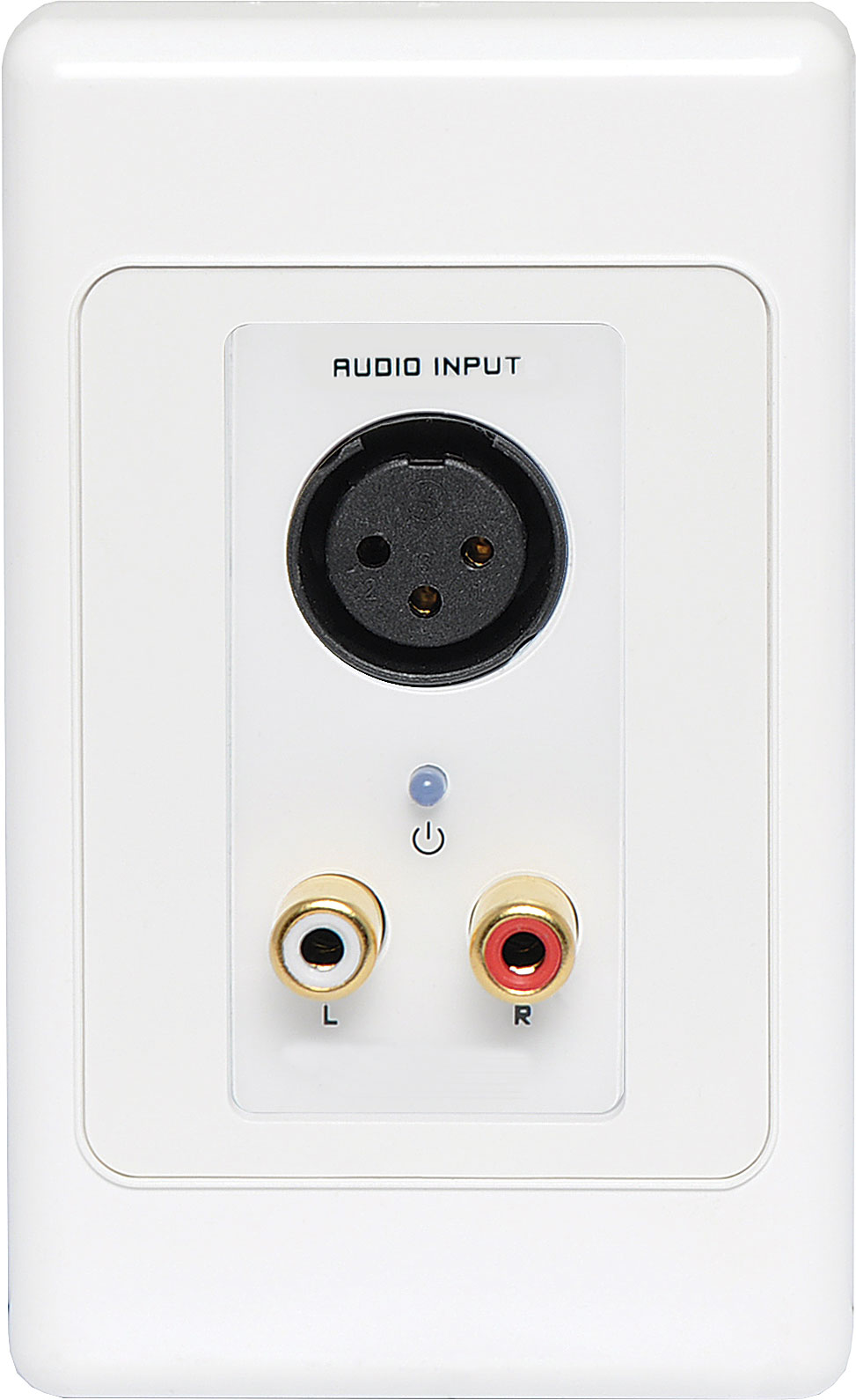

3 Pin XLR & Stereo RCA Input UTP Balun Wallplate

SKU: A4824
This 3 pin XLR Line/Balanced and Stereo RCA input wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).
$186.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $186.36
2+ $171.82
4+ $162.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This 3 pin XLR Line/Balanced and Stereo RCA input wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).

Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues. This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A 4830/A 4831 converter boxes. Powered by 24V DC input.

Features

  • Balanced MIC XLR Input
  • Selector switch MIC GAIN
  • RCA Jack Audio Inputs
  • XLR Goes to Pair A; L (Left) Goes to Pair B; R (Right) Goes to Pair C.
  • Signal and Power Pair Pass-Through on RJ45 jack
  • Power can be linked to the removable terminal
  • Blue LED Indicates Module is Powered
  • Daisy chain topology
  • AFC Design (AFC: Auto Feedback Gain Circuitry)

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
