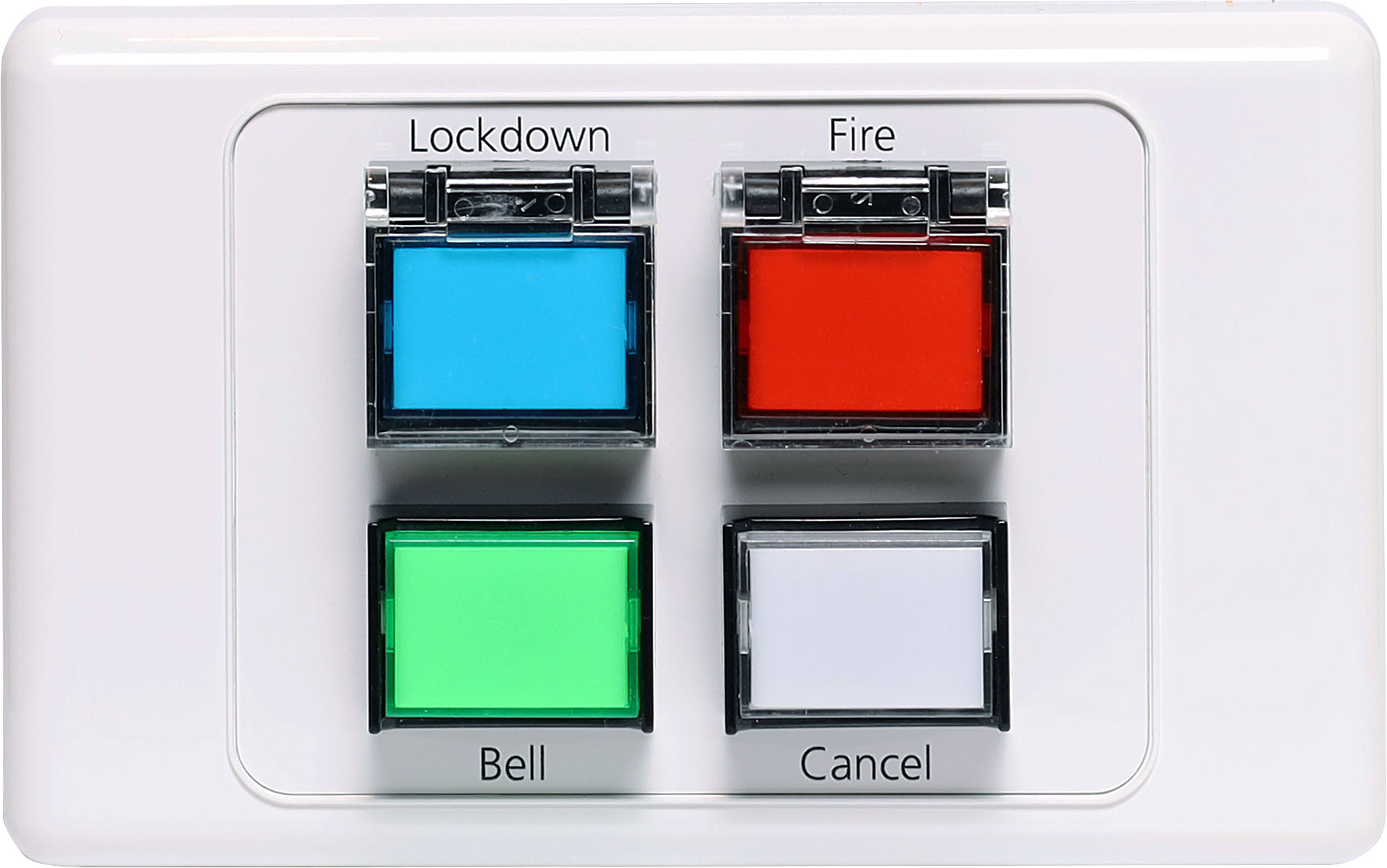

Lockdown/Chime/Fire/Cancel Remote Wall Plate

The Redback® A4599 wall plate allows the Redback® A4505 Lockdown Timer to be controlled remotely. With the remote function the user is able to trigger the Lockdown, Fire and Bell tones and the cancel function. The switches are momentary operation and must be pressed for up to 3 seconds to activate. The switches have protective “flip up” covers to prevent accidental operation. Connection is made to the Redback® A4505 via standard Cat5e cabling. There are two RJ45 ports on the rear of the wall plate, either of which can be used. Only one Redback® A4599 wall plate is allowed to be connected to the Redback® A4505 via the RJ45 port.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.
