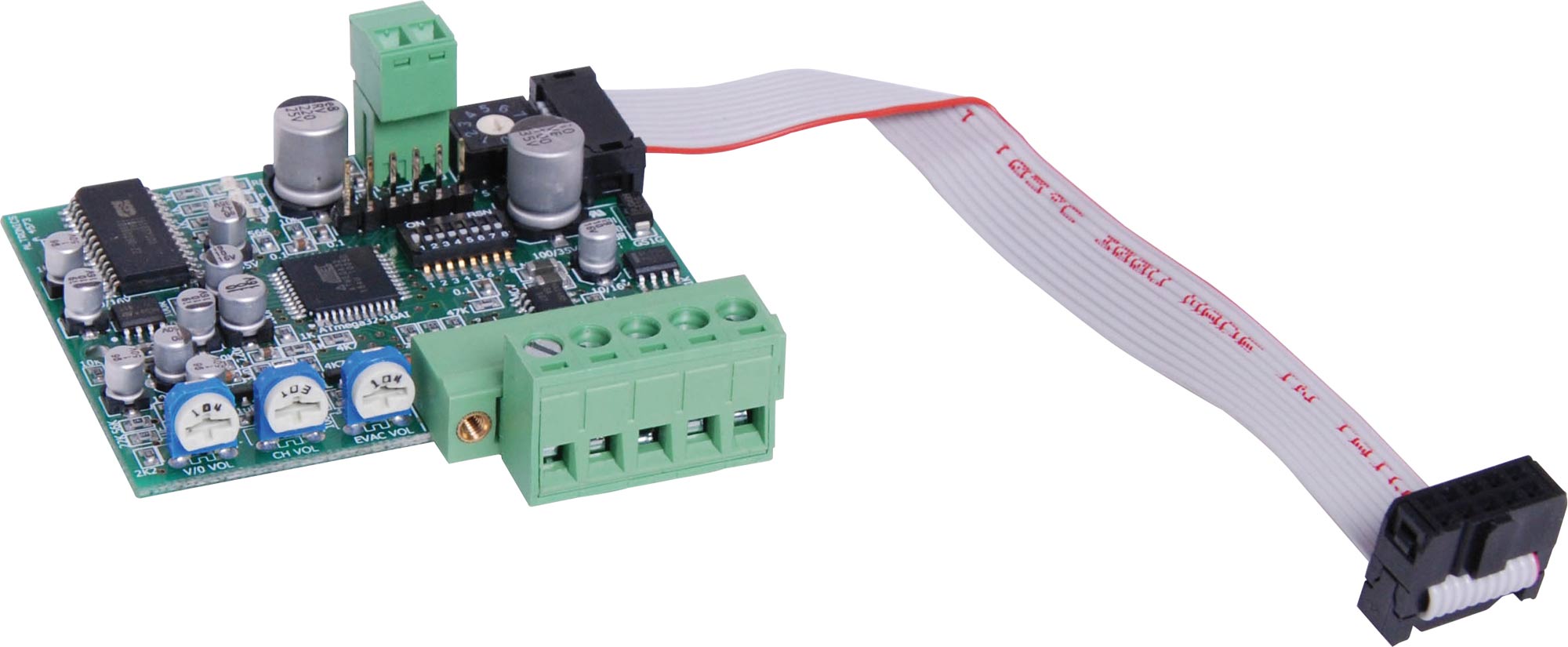

Alert/Evac Option Board For Mixers and Amplifiers

The A 4573 module generates pre announcement chimes and alert and evacuation tones for selected Redback® products.
Separate volume controls are included for adjustment of the alert/evac tone level, the chime level and the message
voice-over level. The chime and alert/evac tones are triggered by closing contacts via a five way euro block. These triggers
can be set to momentary or alternate action by on board DIP switches. Chimes included on the module include pre announcement, Ding Dong, repeating Bing and repeating Bong. All of these
are DIP switch selectable.

The module is also fitted with a switch over option which changes the evacuation tone from the Alert tone to the
Evacuation tone after a set time. This can be adjusted from 30 seconds to 270 seconds in 30 second increments or it can
be switched off altogether. A microphone has been included which is used to record an emergency voice over message if required. This message can be turned on via DIP switches, and will play twice after the evacuation tone has repeated four times.

Important Note:
The evacuation tone for this device conforms to fire evacuation standards AS1670.4.2004
The evacuation tone (temporal pattern) conforms to international standards.

Compatible Amplifiers - see accessories listed below
A 4037 40 Watt Amplifier
A 4043 60 Watt Amplifier
A 4047 100 Watt Amplifier
A 4377A 125 Watt Amplifier
A 4387A 250Watt Amplifier
A 4275C 125 Watt Amplifier
A 4285C 250 Watt Amplifier

Compatible Mixers - see accessories listed below
A 4480A
A 4480B

Suitable Wallplates for remote triggering - see accessories listed below
A 2078B
A 2081

Designed & manufactured in Australia.
