7 Day Timer With Lockdown & Fire Alarm Control

Manufacturer: Redback
SKU: A4505C

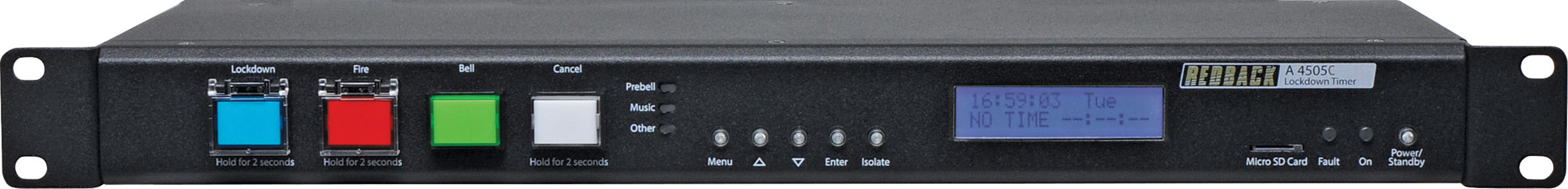

A timed audio announcement, lockdown and fire alarm controller all housed in a convenient 1RU rack mount chassis. For scheduled announcements a total of 200 “event” switching times are available through the timing functions.
$904.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $904.55
2+ $850.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A timed audio announcement, lockdown and fire alarm controller all housed in a convenient 1RU rack mount chassis. For scheduled announcements a total of 50 “event” switching times are available through the timing functions. Each event can be set to turn on from 1 sec up to 24 hours. When a timing event is activated, an MP3 audio file will be played with 99 playback folders to choose from, which include bell, prebell, music and folders 5-99 on the included micro SD card. If more than one MP3 is in a folder the MP3 will be random played. Timing events can be programmed on the unit or with included PC software. The timing events can also be programmed to only trigger the Bell 24V out (and the common 24V out), with no audio output.

The lockdown/fire controller is designed around industry standard building emergency requirements. When connected to a paging system amplifier, building occupants can be alerted and/or evacuated in the event of an emergency e.g. fire, gas leak, bomb scare, earthquake.

The lockdown, fire, bell tones and cancel function are triggered by the front switches, external wall plates (see below) or by the rear terminal contacts for remote activation. Switched 24V DC Out connections are provided for bell, lockdown, fire or a common out. These contacts are for connection of override relays in remote volume controls, warning strobes, bells etc.

The units timer and bell times can be remotely managed over a local area network (LAN) or virtual private network (VPN) using A 4498 ethernet adaptor pack.

Features

  • MP3 for bell, prebell & music timing output.
  • Emergency tones conform to AS 1670.4
  • Random play of MP3 for prebell and music triggers.
  • Easy PC based timing event setup
  • Local & remote triggering of lockdown, fire and bell.
  • Provision for connection to A4660 touchscreen paging console.
  • MP3 voice over message (available in the lockdown and the fire cycle)
  • Switched 24VDC outputs
  • Pluggable screw terminal connections
  • Auxiliary level output
  • Battery backup of current time
  • 24V DC operation
  • 1RU 19” rack case
  • Suitable for any amplifier with aux input
  • 10 Year Warranty
  • Australian Designed and Manufactured

Specifications

Output Level: 0dBm

  • Distortion: 0.01%
  • Frequency Response: 140Hz - 20kHz
  • Signal to noise ratio: Lockdown/Fire/Chime - 70dB typically

Output Connectors

  • Audio Output: RCA Stereo Socket
  • Common 24V DC Out: Screw Terminals
  • Lockdown 24V DC Out: Screw Terminals
  • Fire 24V DC Out: Screw Terminals
  • Bell 24V DC Out: Screw Terminals

Please Note: Output loads limited 0.12Amp each

Input Connectors

  • 24V DC Power: Screw Terminals
  • 24V DC Power: 2.1mm DC Jack
  • Remote Lockdown, Fire, Bell, Cancel: Screw Terminals

Muting: Via Microphone Switch Contact

Controls

  • Lockdown/Fire: Rear Volume
  • Voice over: Rear Volume
  • Bell: Rear Volume
  • Prebell: Rear Volume
  • Music: Rear Volume

Power: On/Off Switch

  • Lockdown Switch: Illuminated Push Switch
  • Fire Switch: Illuminated Push Switch
  • Bell Switch: Illuminated Push Switch
  • Cancel Switch: Push Switch

Indicators: Power on, MP3 error, Prebell

MP3 File Format: 128kbps, 44.1kHz, 32bit, VBR or CBR, Stereo (even better as mono).

General

  • Power Supply: 24V DC
  • Dimensions: ˜482W x 175D x 44H
  • Weight: ˜2.1 kg
  • Colour: Black

Warranty & Returns

10 Years

We Offer 10 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 10 Years
