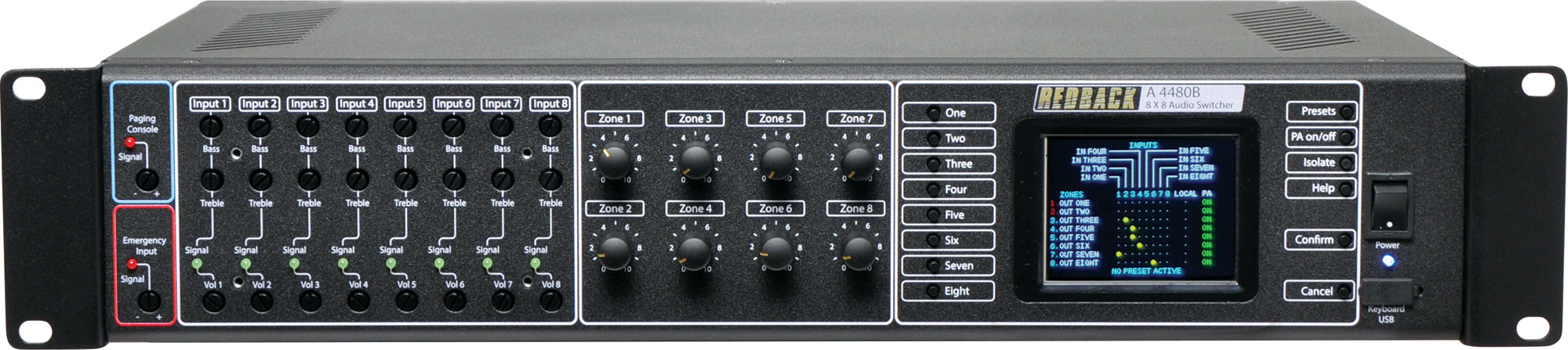

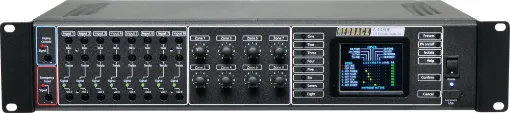

8 Input to 8 Output Audio Switcher

Manufacturer: Redback
Designed to meet the demands of todays complex audio installations. This very versatile, cost effective, PA/BGM control system is suitable for clubs, pubs, gyms etc. It is ideally suited as a central controller for all audio inputs and outputs.
SKU: A4480B
$2,727.27
Per ea
QuantityPrice
ea$2,727.27
2+$2,454.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Brings together paging, balanced line and stereo line level sources into a single multi zone mixer controller. With remote wallplate control, programmable presets and local zone input wallplates it is incredibly flexible for large scale multi source environments.

This cost effective, PA/BGM control system is suitable for clubs, pubs, gyms etc. It is ideally suited as a central controller for all audio inputs and outputs in a multi zone installation. The design is highly flexible and easily set up by the installer. No special training or complex programming is required. Each input and output can be custom labelled and displayed on the front panel screen. This shows at a glance, which input is selected to which output.

The system is configured with 8 auxiliary source inputs, 1 emergency paging input and 1 alert/evac input. Inputs 1 and 2 are 3 pin XLR/dual RCA. All other inputs are dual RCA only. Each zone can be fitted with a touchscreen controller (A 4462/4 or A4495/6) for easy source selection and level control. Plus a local zone source input wallplate such as A 4931 or A 4935. Up to six user presets are provided for recalling regularly used configurations. These can be selected via the front panel or A 4476 preset selector wallplate.

Optional accessories/features for the A 4480B:
Zone and emergency over-ride paging via A 4660 paging console.
Remote zone control of volume and music sources via A 4462, A 4464, A 4495, A 4496 wall plates.
Preset selection via A 4476 preset wall plate.
Local microphone or music input connection via A 4931 and A 4462, A 4464, A 4495, A 4496 wall plates.

Package Contents
A 4480B Audio Switcher
M 8973 24V 5A Power Supply
240V AC power lead (suits Australian Standard)
USB keyboard
Acrylic anti tamper cover

Connection Matrix

connection matrix

Features:

  • 8 Stereo RCA line inputs (mono mixed)
  • Adjustable line input sensitivity 0.3/0.7V
  • Balanced mic or RCA line on inputs 1 and 2.
  • Bass, treble and volume for all line inputs.
  • 8 Balanced 3 pin XLR line outputs
  • Individual volume controls for all 8 outputs
  • Colour TFT screen for easy review of settings.
  • Up to 8 paging consoles per system.
  • All call priority line input - ideal for RSL clubs for Ode playback or telephone paging.
  • Program isolate function for each zone.
  • Alert/evacuation/pre chime tone generator (complies to AS1670.4)
  • Emergency balanced input
  • Custom source & zone names
  • Four programmable presets
  • On-screen help menu system
  • Tampering lockout feature
  • 24V DC operation
  • 19” rack mount (2 unit)

Specifications

Electrical

  • Wallplate & paging console inputs: RJ45 8P8C
  • Data transmission: Cat5e cabling max 300m
  • Keyboard input: USB type A socket (front & rear)
  • Power (24V DC): Euroblock terminal or 2.1mm DC socket
  • Protection (DC): 4A M205

Controls

  • Outputs: Individual level controls
  • Inputs: Individual bass, treble and level controls
  • Zone selection: Push buttons
  • Rear panel level controls: voiceover, chime, alert/evac, priority
  • input, priority input VOX, emergency input VOX.
  • Rear panel DIP switches: aux input sensitivity, phantom power,
  • mic/line, emergency input, optional settings.

Mechanical

  • Dimensions: 482W x 152D x 88H mm
  • Weight: 4kg

10 Years

We Offer 10 Years for this product
