6 Input, 2 Output Public Address (PA) Mixer

Manufacturer: Redback
SKU: A4424
New to the Redback mixer stable, this model incorporates six inputs which can be routed to 1 of 2 outputs or both as the installation requires. Inputs can be configured for either RCA line level signals or 3 pin XLR balanced mic signals.
$795.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $795.45
2+ $745.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

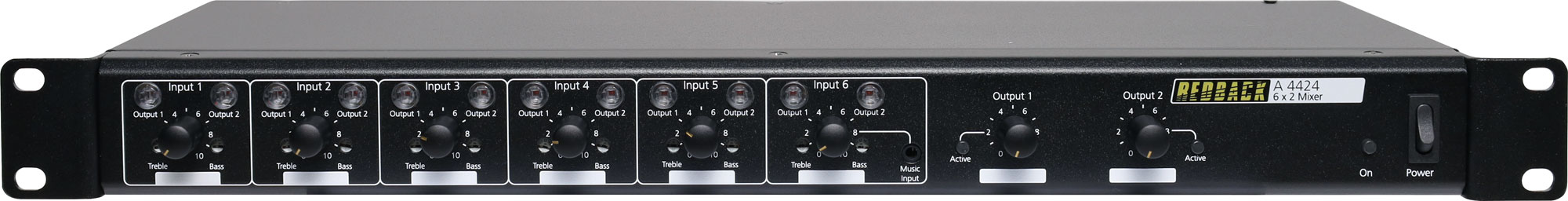

This Redback PA mixer incorporates six inputs which can be routed to 1 of 2 outputs or both as the installation requires. Inputs can be configured for either RCA line level signals or 3 pin XLR balanced mic signals. Outputs are via RCA and 3 pin XLR balanced 1V signals. Front panel controls including volume, treble and bass are included for each input. Independent master volume controls are provided for each output. Pushbutton  switches are provided to enable inputs to be switched to either output 1, output 2 or both outputs 1 and 2. DIP switches allow for each input sensitivity to be set to 100mV and phantom power on/off, and choice of RCA or XLR connection for that chosen input. All housed in a low profile 1RU 19” rack mountable case.

Features:

  • Six mic / line input channels.
  • Two outputs via XLR/RCA 1V balanced.
  • Level, bass and treble control on all inputs.
  • Adjustable input sensitivity.
  • Phantom power selection on each input.
  • Route signals to each output or both outputs.
  • Includes power supply
  • 1RU 19” rack mount case.
  • Australian designed & assembled

Specifications:

Audio

  • Output level: 0dBm
  • Distortion: 0.01%
  • Frequency response: 140Hz - 20kHz
  • Mic input sensitivity: 3mV balanced
  • Line input sensitivity: 100mV/1V

Connection

  • Output: RCA Line out (mono) or 3 pin XLR balanced
  • Input - Microphone: 3 pin XLR
  • Input - Aux: Dual RCA, 3.5mm stereo jack front panel

Power

  • 24V DC power: Screw terminals, 2.1mm DC Jack
  • Power supply: 24V DC

Controls & Indicators

  • Power: Standby Switch
  • Bass: ±10dB @ 100Hz
  • Treble: ±10dB @ 10kHz
  • Output 1 and 2: Volume
  • Indicators: Power on, Signal Present

Size & Weight

  • Dimensions: 482W x 175D x 44H
  • Weight: 2.1 kg





Warranty & Returns

10 Years

We Offer 10 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 10 Years
