New
RoHS

1 In to 4 Out Audio Distributor

Manufacturer: Redback
SKU: A4414
This compact half rack distributor comprises of a single 3 pin balanced XLR input to four 3 pin balanced XLR outputs. Great for splitting a single audio source out to multiple zones without interference between channels.
$453.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $453.64
2+ $390.00
2+ $359.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

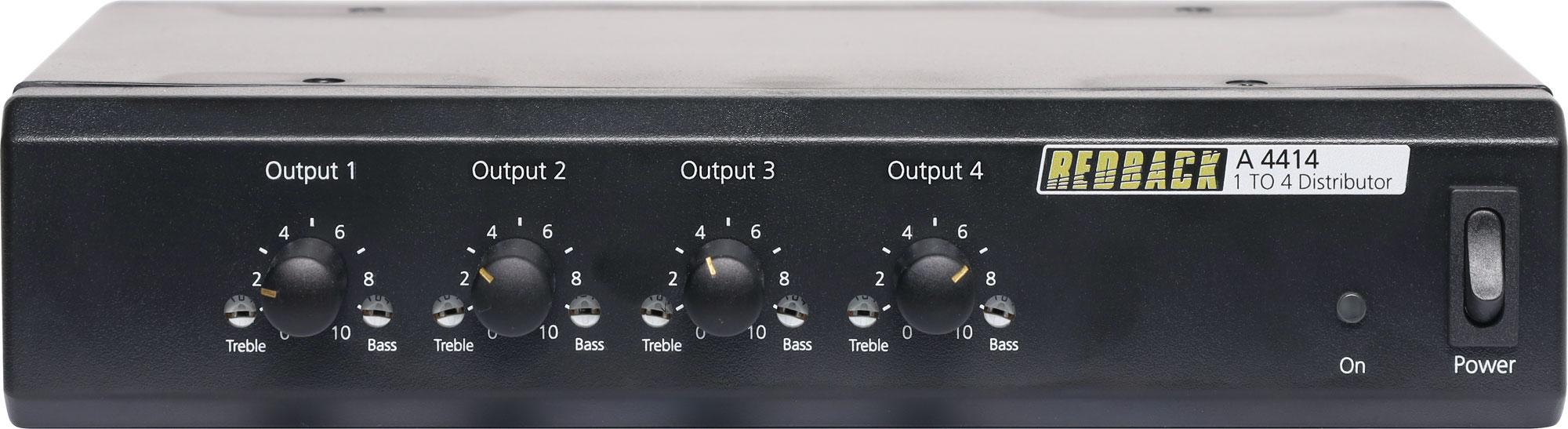

This compact half rack distributor comprises of a single 3 pin balanced XLR input to four 3 pin balanced XLR outputs. Great for splitting a single audio source out to multiple zones without interference between channels.  The input and all outputs can be configured individually for either mic or line level operation. Front panel volume and recessed treble and bass controls are provided for each output. A “loop” output 3 pin XLR socket is provided to connect additional units to increase the total number of outputs as required. It is housed in a half rack 1RU cabinet and powered by 24V DC power source (power supply included).

Features

  • Balanced input and outputs
  • 3 pin XLR connections
  • Mic or line level operation for individual input/outputs
  • Loop output for connection to multiple distributors
  • Compact half rack 1RU cabinet
  • 24V DC operation
  • Australian designed and manufactured

Specifications

Connections:

  • Inputs: 1 x 3 pin XLR balanced female
  • Outputs: 4 x 3 pin XLR balanced male
  • Loop Output: 1 x 3 pin XLR balanced male

Controls:

  • Power switch
  • Volume (outputs 1 to 4)
  • Bass & treble adjustment
  • Sensitivity selectors (rear mounted DIP switch)

General:

  • Power Supply: 24V DC @ 1 Amp
  • Dimensions: 210W x 122D x 44H
  • Weight: 0.4 kg

Warranty & Returns

10 Years

We Offer 10 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 10 Years
