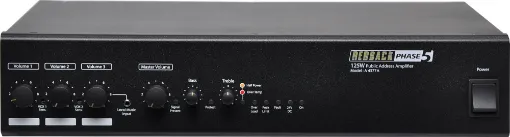

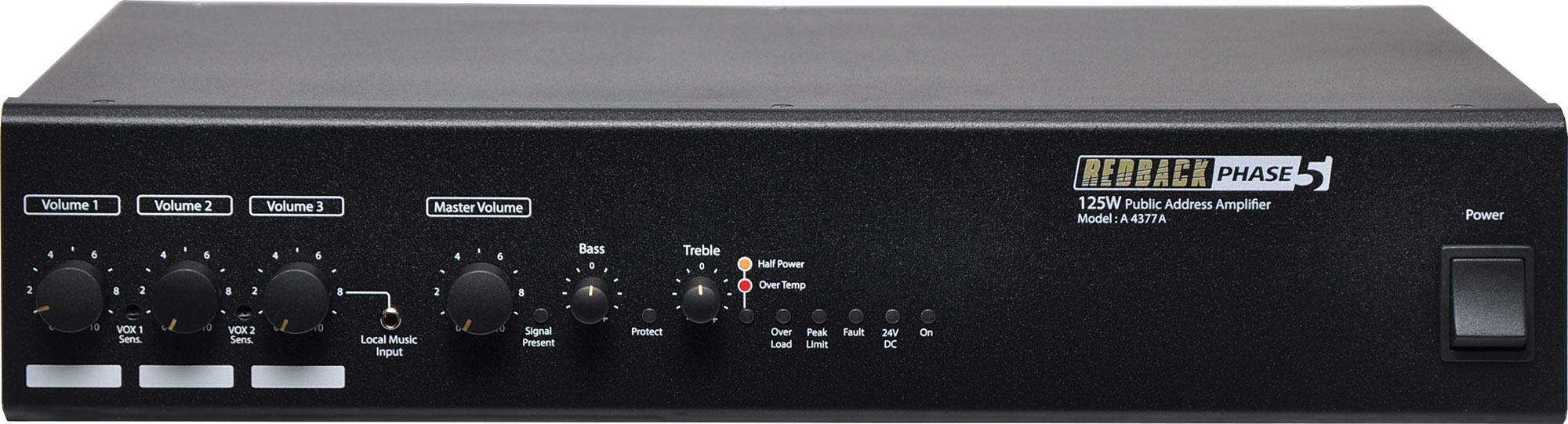

Public Address Amplifier (PA) 125W 4 Input

Manufacturer: Redback
SKU: A4377A
This 125 Watt 4 channel mixer amplifier is specifically designed for applications requiring up to three microphone inputs, without compromising output power and overall performance. The amplifier feature three inputs which can be configured for either microphone or line level operation.
$1,086.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $1,086.36
2+ $968.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The Redback A 4377A 125 Watt 4 channel mixer amplifier is specifically designed for applications requiring up to three microphone inputs, without compromising output power and overall performance. The amplifier features three inputs which can be configured for either microphone or line level operation. Dimensions: ˜483W x 300D x 88H.

The A 4377A conservatively delivers 125W RMS power, while the A 4387A (see related below) delivers 250W RMS. Frequency response extends from 50Hz to 15kHz ±3dB at a total harmonic distortion (THD) of less than 0.5% @ 1kHz.

Vox muting is provided on inputs one and two, which, when activated, automatically mutes the other inputs. Bass and treble controls and phantom powering capability enable unparalleled flexibility for a wide scope of applications such as factories, workshops, mine sites, sports clubs and office buildings.

The amplifiers operate from 240V AC mains or 24V DC permitting battery backup operation during mains power failure. The output comes standard suitable for a 100V line load, but this can be configured internally to 70V line or low impedance (4 - 16Ω) loads.

Thermal overload, overcurrent and overload protection circuitry and fuses on both AC and DC provide excellent fault condition protection and robust performance. The amplifier also utilises a half power mode which enables the amplifier to continue to run at a reduced output level if it is being over driven.

Tape output sockets are provided for recording purposes or feeding into additional power amplifiers.

Remote volume available when A 4373 Digital volume control module fitted internally and external A 2280B wall plate or 1KΩ potentiometer connected.

Alert and Evacuation tones (conforming to AS1607.4) along with chime tones and voice over message option available when optional A 4573 fitted.

Features:

  • 3 Balanced microphone inputs / 3 Aux inputs / 1 Music input
  • Robust design incorporating latest Mosfet technology
  • Very Low noise and distortion
  • 100V standard with optional 70V and 4-16Ω outputs
  • 240V AC or 24V DC operation
  • VOX muting on inputs 1 and 2 (Switch selectable internally)
  • Adjustable VOX level sensitivities
  • Bass and Treble controls
  • Tape Output
  • Phantom power on microphone inputs (DIP switch selectable internally)
  • Multi stage thermally cued fan cooling
  • Output Peak Limited
  • Thermal Overload protected
  • Signal Presence Indicator
  • Half power mode when overdriven
  • Fault Indicators
  • 24V DC Power Status Indicator
  • Optional Alert/Evac module with voice over message for emergency tones (A 4573)
  • Optional remote volume (With A 4373 Digital volume control module fitted and external A 2280B wall plate)
  • Rack Mountable (suits 19 inch racks) with optional A 4376 rack ears

Specifications:

Power Outputs

  • Power: 125 watts RMS
  • Distortion: < 0.5%, @ 1kHz
  • Output line: 100V

Frequency Response

  • Mic inputs : 50Hz - 12kHz, -3dB
  • Line inputs: 50Hz - 15kHz, -3dB

Mic Sensitivity

  • Mic inputs: 3mV
  • Line inputs: 1V
  • Music input: 500mV

Signal To Noise Ratio

  • Mic inputs: > 75dB below rated output

Line Output600O balanced, 0dB , 3 Pin XLR

Output Connectors

  • Speakers: Screw terminals

Input Connectors

  • Inputs: 3 pin XLR balanced or 2 x RCA
  • 24V DC power: Screw terminals
  • 240V AC power: IEC power connector

MutingPTT via microphone switch contacts and VOX muting (inputs 1-2)

Controls

  • Mic/Line/Music inputs: Volume
  • Power: On/off switch
  • Indicators: Power, signal present, output peak limiting, over-temp , overload protect, half power, 24V DC

General

  • Power Supply: 240V AC or 24V DC
  • Fuse Protection: 125W - 5A AC ,10A DC
  • Dimensions: ˜483W x 300D x 88H
  • Weight: ˜ 11kg
  • Current Draw: Min ˜ 300 mA, Max ˜ 9.6A

Warranty & Returns

10 Years

We Offer 10 Years for this product
