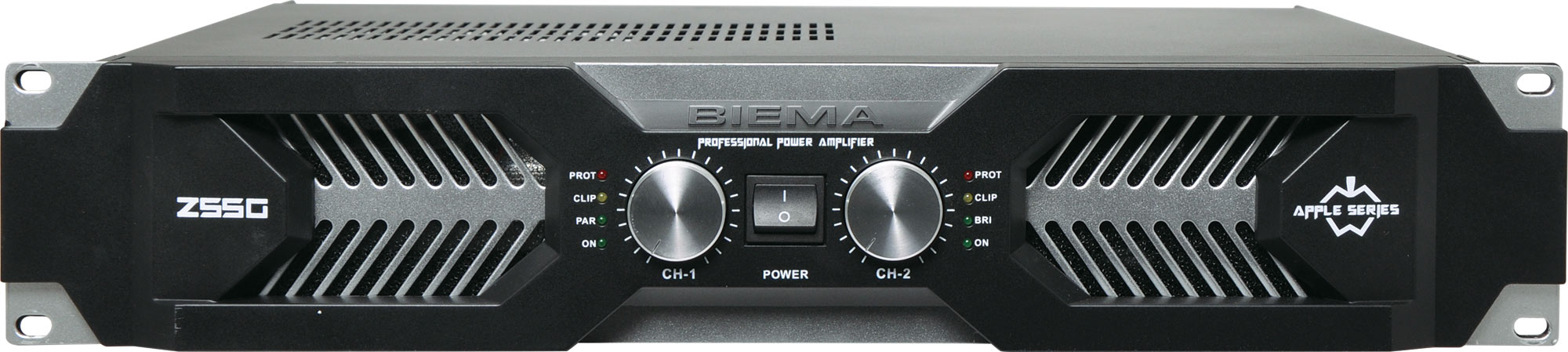

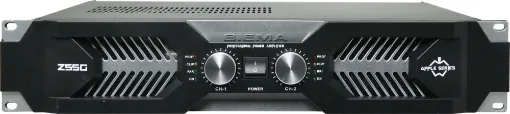

PA Amplifier Stereo/Bridgeable 2x550W

Manufacturer: Biema
This new series dubbed the "Apple" range have been completely redesigned by Biema to offer vastly improved cooling, efficiency and circuit protection. This range is designed to function as a stereo or high power single channel amplifier for use in foreground sound reinforcement ie: pubs, clubs, cinemas and multi-function venues.
SKU: A4173A
$908.18
Per ea
QuantityPrice
ea$908.18
2+$817.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This PA Amplifier Stereo/Bridgeable 2x550W is an effective solution for demanding commercial audio applications. This new series dubbed the β€œApple” range have been completely redesigned by Biema to offer vastly improved cooling, efficiency and circuit protection. This range is designed to function as a stereo or high power single channel amplifier for use in foreground sound reinforcement ie: pubs, clubs, cinemas and multi-function venues. The variable speed cooling fan and β€˜T’ shaped heatsink tunnel ensure the amplifier performs well even in demanding conditions.

The protection circuitry employed ensures the integrity of the amplifier during overload condition, output terminal short circuit and output clipping. Each channel is fitted with a recessed front mounted volume level. Inputs are via balanced 3 pin XLR. Output connections are made via binding post or heavy duty Speakon connector.

Features:

  • Rugged heavy duty construction
  • 19” rack mount
  • Bridgeable, parallel or two channel stereo operation
  • Earth lift switch
  • 3 pin XLR inputs.
  • Short circuit protection with indicator
  • Overload protection with indicator
  • Clipping prevention circuitry with indicator
  • Variable speed fan forced cooling
  • Muting circuit for switch on/off

Specifications

Power: 2 x 550W 8O, 2 x 800W 4O

  • Power (bridged): 1600W 8Ω
  • Output Connections: Speakon / Binding post
  • Freq. response: 20Hz - 20kHz Β±0.5dB
  • Input sensitivity: 0.77V
  • Input Impedance: 20k Ω/Balanced, 10k Ω/un-balanced
  • S/N Ratio: =95dB
  • THD: =0.03%
  • Crosstalk @ Rated Output/8kΩ/1kHz: >70dB
  • Damping Factor/8kΩ/1kHz: >240
  • Slew Rate: 15V/uS
  • Protection: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut
  • Cooling System: Two Steps speed fan
  • Mains Power Supply: AC: 220-230V 50Hz/60Hz
  • Dimensions (mm): ˜ 482W x 430D x 88H
  • Net Weight: 10.5kg
  • Gross Weight: 12.5kg

2 Years

We Offer 2 Years for this product
