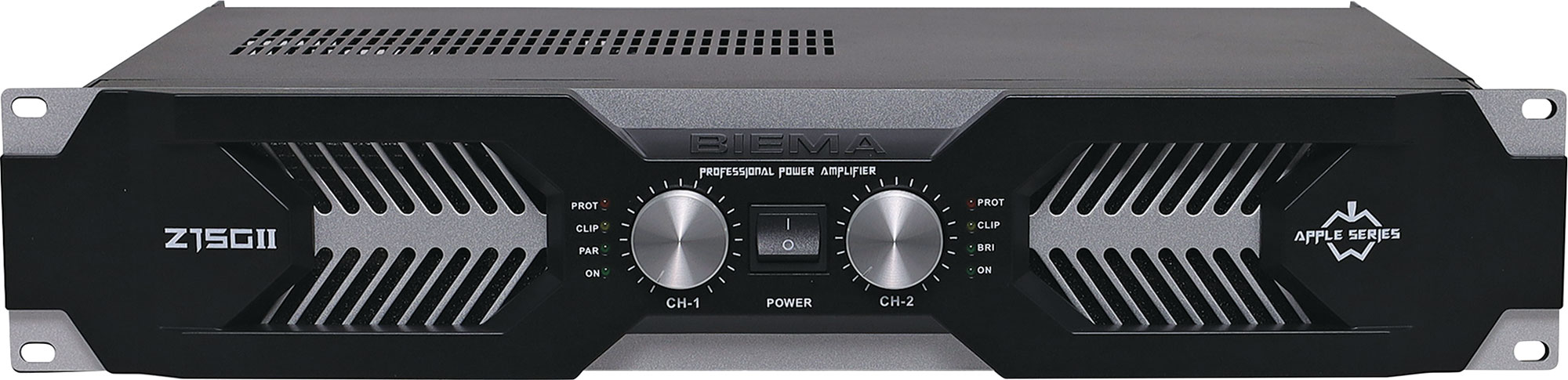

PA Amplifier Stereo/Bridgeable 2x150W

Manufacturer: Biema
Be the first to review this product
The Apple series Biema power amplifiers are a cost effective solution for demanding commercial audio applications. These non-bridgeable models are designed to be used as standard 2 channel or stereo amplifiers. The design incorporates a fan forced cooling sys
SKU: A4155
$544.55
Per ea
Quantity Price
ea $544.55
2+ $490.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This series dubbed the “Apple” range have been completely redesigned by Biema to offer vastly improved cooling, efficiency and circuit protection. This range is designed to function as a high power bridgeable stereo amplifier for use in foreground sound reinforcement ie: pubs, clubs, cinemas and multi-function venues. The variable speed cooling fan and ‘T’ shaped heatsink tunnel ensure the amplifier performs well even in demanding conditions. The protection circuitry employed ensures the integrity of the amplifier during overload condition, output terminal short circuit and output clipping.

Please note the images and information included in the current 2021-22 downloadable and printed catalogue is incorrect due to a product update. The pictures and information on the website is current.

Specifications

Output Power (Stereo 8O): 150W + 150W

  • TA 1KHz THD=1% (4Ω): 220W + 220W
  • Bridge 8Ω: 440W
  • Frequency Response: 20Hz-20KHz +/-0.5dB
  • Input Sensitivity: 0.77V
  • Maximum input level: 18dB/6.2V
  • Input Impedance active balanced: 20KOHMS/Balanced, 10KOHMS/un-Balanced
  • Signal/noise ration a-weighted RMS: =95dB
  • Crosstalk at rated output power (8Ω 1kHz): >70dB
  • Damping Factor (f=1kHz 8Ω): >240
  • Slew rate internal: 15V/us
  • Protection: Short circuit, current limited DC fault AC line fuse, thermal cut off, power up/down transients
  • Indicators: POWER (BLUE) PROT (RED) CLIP (YELLOW) BR (GREEN) PAR (GREEN)
  • Cooling: Variable Speed Fan
  • Front Panel Controls: LEVEL ACH, BCH POWER SWITCH
  • Rear Panel Controls: STEREO/BRIDGE/PARALLEL MODE SWITCH
  • Connector: XLR BALANCED INPUT, PROFESSIONAL SPEAKON OUTPUT
  • Power consumption half power 8Ω: <440W
  • Power Supply: 240V AC/50Hz
  • Interior Dimensions: 482 x 325.5 x 88mm
  • Exterior Dimensions: 555 x 415 x 168mm
  • Net Weight: 8.5kg
  • Gross Weight: 10.5kg

2 Years

We Offer 2 Years for this product
