HDMI Two Core Cabling Balun Extender System Receiver

SKU: A4126
This ingenious Foxtel compatible device allows you to extend your 1080p HDMI source over any 2-conductor cable including twisted cable, telephone cable or Cat5/6 etc. We recommend 12AWG - 19AWG cable. Extends a 1080p signal up to 3800m over standard gure 8 cable!
$68.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $68.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This ingenious Foxtel compatible device allows you to extend your 1080p HDMI source over any 2-conductor cable including twisted cable, telephone cable or Cat5/6 etc. We recommend 12AWG - 19AWG cable. The transmitter compresses/ converts the HDMI signals into a serial data stream, which is then encoded for transmission over any copper media. It is an ideal HDMI extender over your existing cabling. It can distribute HDMI up to 3800m. Includes power supplies and mounting hardware. Size: 206 x 110 x 33mm. NOTE: This is not a HDMI over mains product. DO NOT CONNECT TO MAINS VOLTAGE WIRING OF ANY KIND.

Specifications

Support Audio Format: LPCM audio format

  • Transmission Distance: 3800m 2-Conductor cable (Recommend to use 12AWG-19AWG cable)

Supported Video Format:

  • DTV/HDTV:480i/ 480P/576i/576P/720P/1080i/1080P
  • VESA: 800x600, 1024x768, 1280x768,1280x960,1280x1024, 1680x1050,1920x1080, 1280x720, 1360x768,1400x1050,1280x1024.

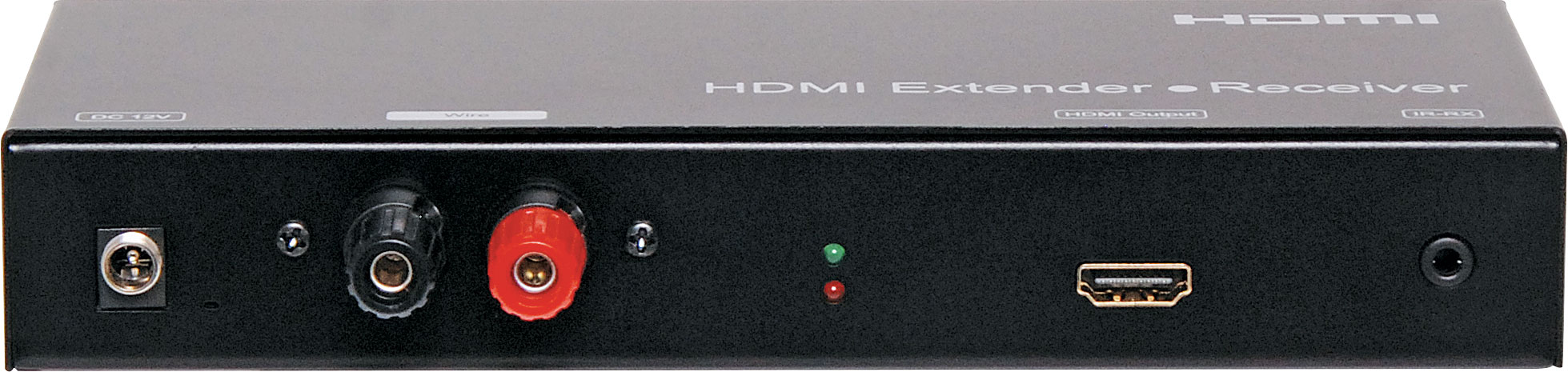

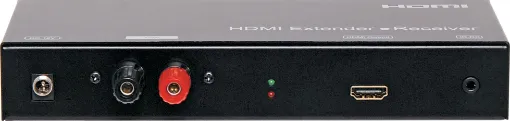

Connector on Receiver:

  • 1x Red Terminal Post, 1x Black Terminal Post
  • 1x HDMI Output, 3.5mm
  • 1x 3.5mm jack for IR-RX
  • DC 5.5 x2.1mm Jack

Power consumption: 5.5watts(Maximum)

  • Dimension: 206Lx110Wx33Hmm
  • IR frequency: 38K-56KHZ
  • Weight: 548g

Features:

  • HDMI over 2-conductor cable (Such as Twisted cable, telephone cable, Cat5e/6/7 cable etc)
  • With 1x Loop HDMI output at transmitter
  • Transmission more than 3800m
  • Support Multi-level cascading
  • HDMI Resolution up to 1080p
  • HDCP compliant
  • IR pass-through control
  • Includes power supply

Warranty & Returns

12 Months

We Offer 12 Months for this product
