15W Public Address (PA) Amplifier

Manufacturer: Redback
SKU: A4017

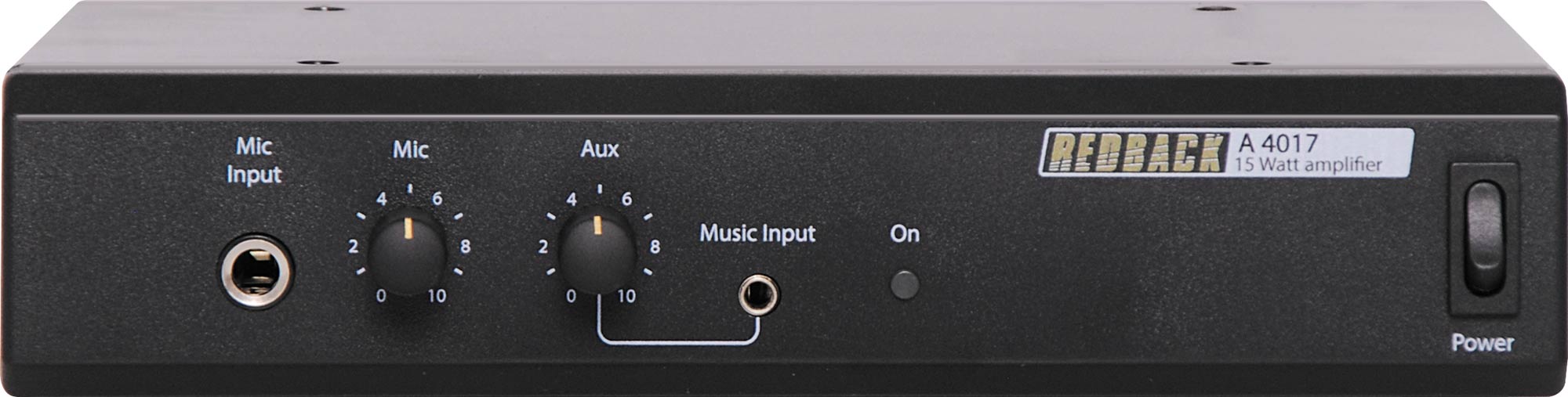

Super compact with surprising performance specifications, intended for smaller PA system applications. Our engineering team based the design around a National TDA1519 monolithic IC achieving virtually "destruction proof" operation under quite severe misuse
$236.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $236.36
2+ $218.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Super compact with surprising performance specifications, intended for smaller PA system applications. Our engineering team based the design around a National TDA1519 monolithic IC achieving virtually “destruction proof” operation under quite severe misuse such as over temperature, over voltage, over load and short circuit speaker line conditions.

The amplifier is extremely stable even where microphone (balanced line) and speaker cables are run together for long distances. The unit will automatically shut down when severely overloaded and will restore to normal operation when the fault condition is removed. Suitable as a stand alone desk/bench unit or rack mount with optional hardware. Up to 2 units can be accommodated side by side in 1RU of rack space (44mm high). 12VDC (includes M8936 plugpack) operation makes it well suited for use in tour buses and mobile installations.

Features:

  • 15W RMS Output
  • Headphone Socket
  • 1 balanced XLR and unbalanced jack mic input
  • Selectable 12V DC Phantom Power on Mic Input
  • 1 Auxiliary Input
  • Music Input on Front Panel
  • 4-16Ω Output
  • Selectable Aux Input Sensitivity
  • 12V DC operation (includes M8936 power supply)
  • Power Status Indicator

Specifications:

Power Output

  • Power: 15 watts RMS
  • Distortion: < 3% @ 1kHz
  • Signal to Noise Ratio: Typically > 75dB
  • Frequency Response
  • Mic input: 50Hz - 10kHz, -3dB
  • Line input: 50Hz - 15kHz, -3dB

Input Sensitivity:

  • Mic: Rear 1.5mV balanced, Front 1.5mV unbalanced
  • Line input: 500mV

Output Connectors

  • Speakers: Screw terminals
  • Output impedance: 4-16Ω

Input Connectors

  • Mic : Rear 3 pin XLR balanced, Front 6.35mm jack unbalanced
  • Line input: RCA stereo socket, bridged mono
  • 12V DC power: 2.1mm socket

Controls

  • Mic input: Volume
  • Line input: Volume
  • Power: On/off switch
  • Indicators: Power
  • Power supply: 12V DC
  • Protection: 3A DC fuse
  • Weight: 0.38kg
  • Dimensions: 210W x 130D x 44H mm
  • Colour: Black

Warranty & Returns

10 Years

We Offer 10 Years for this product
