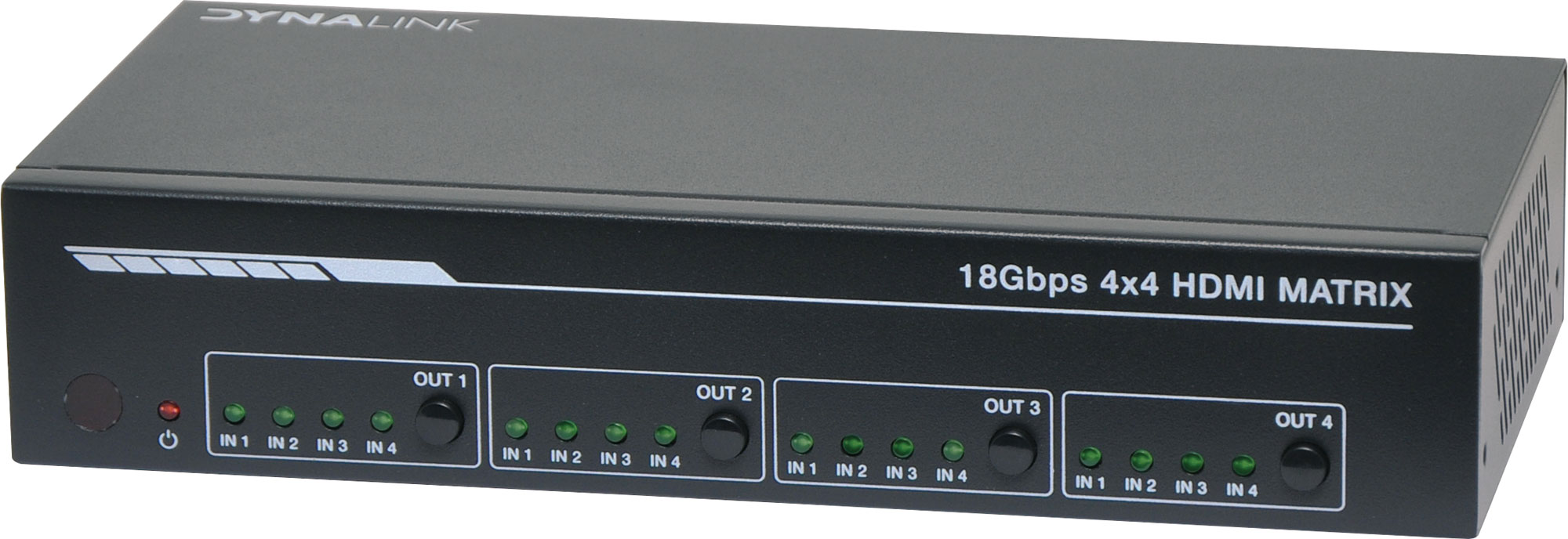

4x4 HDMI 2.0 18Gbps Matrix Switcher

Manufacturer: Dynalink
Be the first to review this product
This 4x4 HDMI 2.0 18Gbps Matrix Switcher can switch any of these 4 HDMI 2.0 Sources to four HDMI 2.0 Displays.
SKU: A3443B
$680.91
Per ea
QuantityPrice
ea$680.91
2+$613.64
4+$544.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 4x4 HDMI 2.0 18Gbps Matrix Switcher is designed for commercial AV systems and can switch any of the 4 HDMI 2.0 Sources to four HDMI 2.0 Displays. Each input and output supports up to 4K @ 60Hz 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote or TCP/IP. See accessories list below for replacement remote control battery.

Package Contents
1 x 4x4 HDMI 2.0 18Gbps Matrix Switcher
1 x 12V/2.5A Locking Power Adapter
1 x IR Remote
2 x Mounting Ears
1 x 38KHz IR Receiver Cable (1.5m)
1 x 3-Pin Phoenix Connector
1 x User Manual

Features

  • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • Four 18G HDMI 2.0 video outputs support up to 4K60 444 resolution
  • Four outputs can be individually scaled for 4K - 1080p
  • De-embedded audio to analog L/R and Coaxial ports output
  • ARC audio return to the coaxial ports output only
  • Built-in Web GUI for TCP/IP control
  • Advanced EDID management supported
  • Four methods of control: Front panel, RS-232, IR remote and TCP/IP
  • Compact design for easy and flexible installation

Specifications

Mechanical

  • Housing: Metal Enclosure
  • Colour: Black
  • Dimensions: 220W × 105 × 44H mm
  • Weight: 792g
  • Power Supply: Input: AC100~240V 50/60Hz, Output: DC12V/2.5A (Locking connector)
  • Power Consumption: 10W (max), 1.56W (Standby)
  • Operating Temperature: 0°C ~ 40°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 20~90% RH (non-condensing)

Technical

  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth:18 Gbps
  • Video Resolution: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats, All PC resolutions including 1920 x 1200
  • Output Scaling: 4K to 1080p
  • 3D Support: Yes
  • Colour Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
  • Colour Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr 4:4:4)]
  • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Coaxial Audio Formats: PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
  • L/R Audio Formats: PCM2.0CH
  • HDR Support: HDR10, HDR10+. Dolby Vision, HLG
  • ESD Protection: Human-body Mode:l ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connections

  • Input Ports; 4×HDMI Type A [19-pin female]
  • Output Ports: 4×HDMI Type A [19-pin female], 4×L/R audio out[3.5mm Stereo Mini-jack] 4×COAX audio out[RCA]
  • Control ports: 1x TCP/IP [RJ45], 1x RS-232[3-pin phoenix connector], 1x IR EXT [3.5mm Stereo Mini-jack]

Resolution/Cable Length

  • HDMI IN / OUT : 4K60 - 3M
  • HDMI IN / OUT : 4K30 - 10M
  • HDMI IN / OUT : 1080P60 - 15M
  • The use of “Premium High Speed HDMI” cable is highly recommended.

12 Months

We Offer 12 Months for this product
