USB 2.0 To Cat5e/6 Wallplate Balun With POE

Manufacturer: Dynalink
SKU: A3255

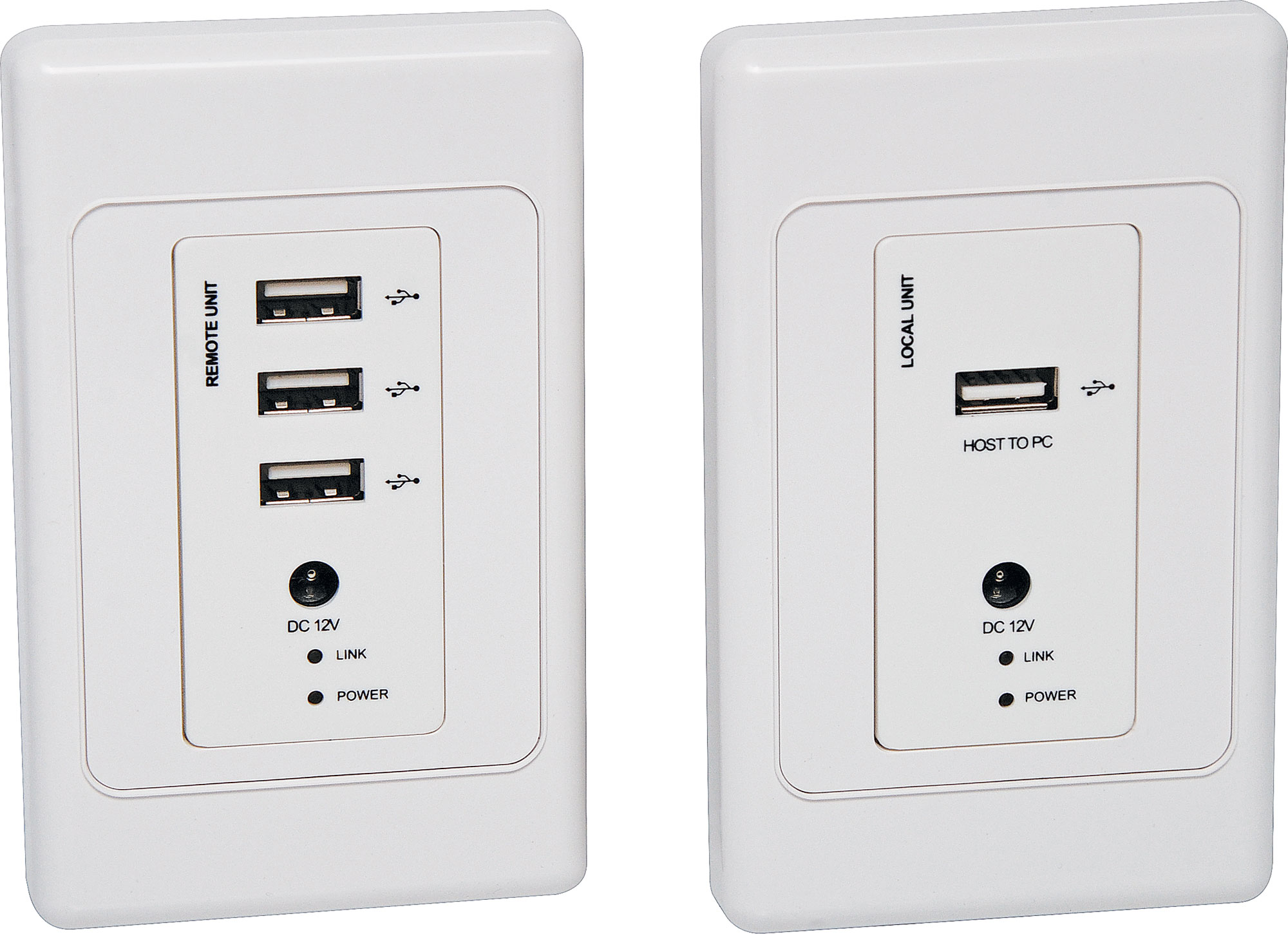

A point to point USB2.0 over UTP balun pair mounted into a wallplate for transmission of USB data between rooms. Installation is made easier via PoE, which only requires a single power source at either the receiver or transmitter end.
$208.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $208.18
2+ $190.00
4+ $168.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A point to point USB 2.0 over UTP balun pair mounted into a wallplate for transmission of USB data between rooms at rates of up to 480Mbit/s. Installation is made easier via Power over UTP, which only requires a single power source at either the receiver or transmitter end. Maximum USB transmission distance 50m when using a standard Cat5e UTP cable type. No drivers need to be installed. Plug and play operation.
Ideal for extending the reach of cameras, display cards, network adaptors, hard drives, flash drives, MP3 players, CD/DVD Roms, printers and scanners etc.

Features

  • Extends USB 2.0 range up to 50 meters at 480Mbit/s
  • Transparent to USB hosts and devices, no driver is needed
  • Support hot swap, plug and play
  • Ideal for extending the reach of USB2.0 I/O devices such as cameras, display cards, network adapters, hard drives, flash drives, mp3 players, CD/DVD ROMs, printers and scanners, etc. between rooms
  • ESD protection level to HBM ±4 kV （Contact Discharge）
  • Standard wall plate outline, easy to install.
  • Includes Power Supply

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
