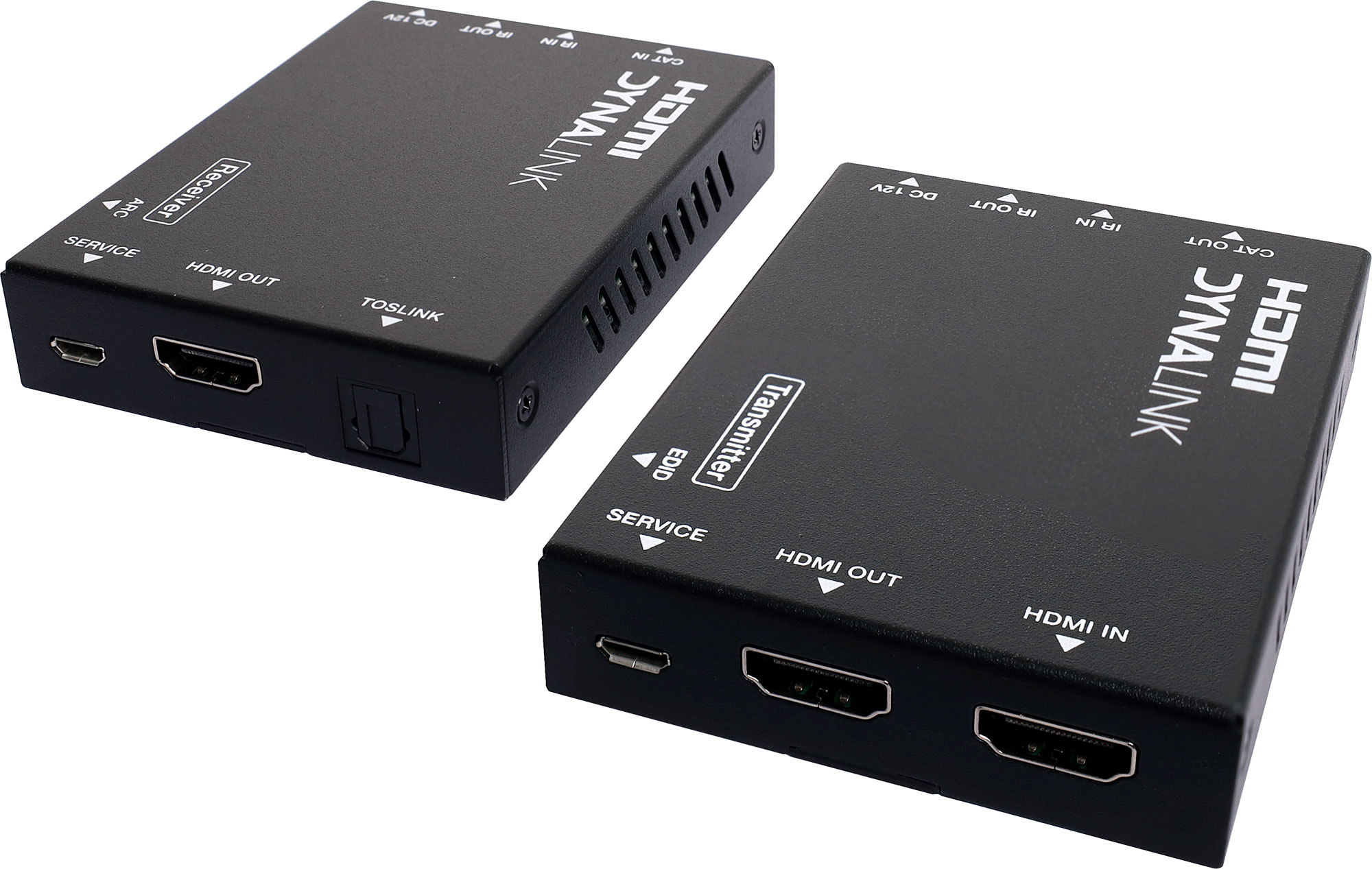

HDMI & Bi-Directional Infra-Red Cat6 Extender UTP Balun

Manufacturer: Dynalink
Be the first to review this product
This HDMI & One Way Infra-Red Cat6 Extender UTP Balun is designed to extend HDMI signals over distances up to 70m across economical UTP cabling.
SKU: A3242B
$253.64
Per ea
QuantityPrice
ea$253.64
2+$231.82
4+$213.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 18Gbps HDMI Extender can extend HDMI HD signal and IR control signal to a distance up to 70m via a single CAT6/6a cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. Video resolution is up to 4K/2K@60Hz. It supports EDID copy pass-through function between the source device and display device. It supports POC (Power over Cable) and audio-return-channel (ARC) functions.

This Extender can be widely used in multi-media conference halls, TV teaching and large-screen displays.

Package Contents
1 x HDMI Transmitter
1 x HDMI Receiver
1 x 12V DC Adapter
1 x IR Blaster Cable
1 x IR Receiver Cable
4 x Mounting Ears
8 x Machine Screws (KM3*4)
1 x User Manual

Features

  • HDMI 2.0b and HDCP 2.2 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K/2K@60Hz RGB/YCBCR 4:4:4
  • The transmission distance can be extended up to 70m via a single CAT6/6a cable
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Support bi-directional IR control signal pass-through
  • Audio formats: LPCM 7.1, Dolby True HD, DTS HD Master
  • EDID copy pass-through function between the source device and display device
  • Support ARC and audio de-embedding, audio is output through the optical fibre port of the receiver
  • Support bi-directional POC (Power over Cable) function
  • Compact design for easy and flexible installation

Specifications

Technical

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K/2K@60Hz RGB/YCBCR 4:4:4
  • IR Level: 5Vp-p
  • Transmission Distance: 4K/2K@60Hz 4:4:4--70m, 1080P--70m (CAT 6/6a cable)
  • Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Colour Depth: 8/10/12bit
  • HDR: HDR. HDR10, HDR10+, Dolby Vision, HLG
  • Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0

Transmitter Connection

  • Input: 1xHDMI IN (TypeA, 19-pin female)
  • Output: 1xHDMI Out (RJ45), 1x CAT OUT (RJ45)
  • Control: 1x SERVICE (Micro-USB jack), 1x IR IN (3.5mm Stereo Mini-Jack), 1x IR OUT (3.5mm Stereo Mini-Jack)

Receiver Connection

  • Input: 1xCAT IN (RJ45)
  • Output: 1xHDMI Out (TypeA, 19-pin female), 1x TOSLINK
  • Control: 1x SERVICE (Micro-USB jack), 1x IR IN (3.5mm Stereo Mini-Jack), 1x IR OUT (3.5mm Stereo Mini-Jack)

Mechanical

  • Housing: Metal Enclosure
  • Colour: Black
  • Dimensions: Transmitter/Receiver: 90W x 68D x 18Hmm
  • Weight: Transmitter: 160g, Receiver 155g
  • Power Supply: DC 12V/1A; Support bi-directional POC Function
  • Power Consumption: 3.36W (max)
  • Operating Temperature: 0°C-40°C
  • Storage Temperature: -20°C-60°C
  • Relative Humidity: 20-90% RH (non-condensing)
