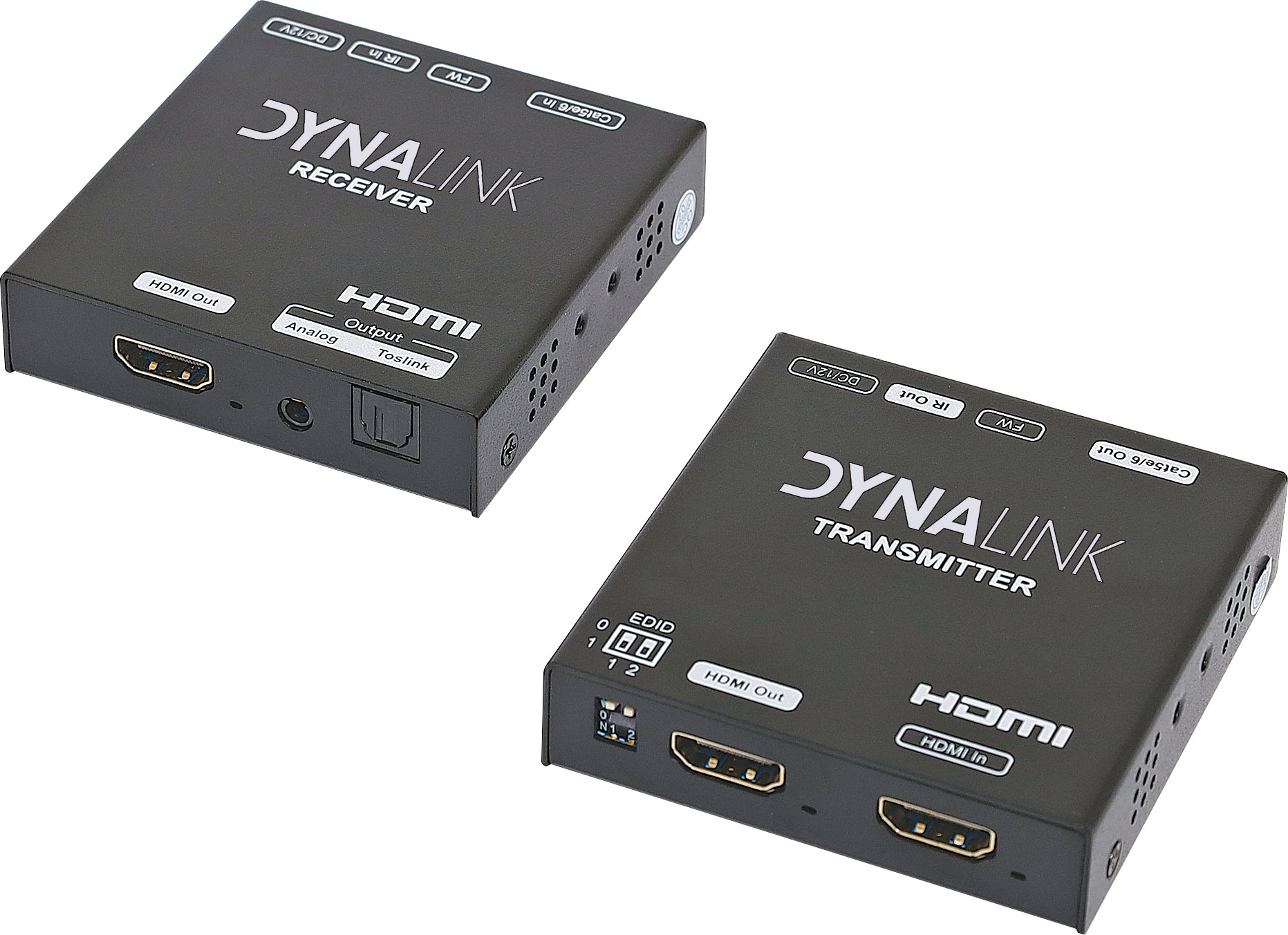

HDMI & One Way Infra-Red Cat6 Extender UTP Balun

Manufacturer: Dynalink
Be the first to review this product
This HDMI & One Way Infra-Red Cat6 Extender UTP Balun is designed to extend HDMI signals over distances up to 70m across economical UTP cabling.
SKU: A3242A
$253.64 $162.73
Per ea
Save $90.91
QuantityPrice
ea $253.64 $162.73
2+ $231.82 $162.73
4+ $213.64 $162.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This HDMI & One Way Infra-Red Cat6 Extender UTP Balun is designed to extend HDMI signals over distances up to 70m across economical UTP cabling. Maximum resolution of 4K @ 60Hz 4:4:4 is achieved when used with Cat6/6a/7 type cables. One way infra-red control of source equipment is also possible using the included infra-red target and emitter. Includes transmitter, receiver, IR target, IR emitter and power supply.

Connection Diagram:


Package Contents:
1 x HDMI Transmitter
1 x HDMI Receiver
1 x IR TX Emitter
1 x IR RX Receiver
1 x 12V DC Adapter
1 x Mounting Ears
1 x User Manual

Features

  • Transmit up to 70m under 4K@60Hz YUV4:4:4
  • 1x HDMI loop out on transmitter
  • Supports EDID management
  • Supports wide band IR Pass through
  • HDMI audio sampling rate up to 192KHz, max LPCM 7.1 channel
  • Supports S/PDIF and PCM2.0 analog audio extraction
  • Supports Dolby True HD, PCM and DTS-HD master audio
  • Micro USB port to upgrade new firmware
  • POC “Power Over Cable”. Only one power supply required per system
  • Power from either Transmitter or Receiver end

Specifications

Operating Temperature Range: -5°C to +40°C

  • Operating Humidity Range: 5 to 90% RH (no condensation)
  • Connectors On Transmitter: 2 x HDMI (1x HDMI input/1x HDMI loop output), 1x DC Power Socket, 1x IR Emitter (for IR TX)
  • Connectors on Receiver: 1x HDMI input, 1x IR Target (for RX Cable)
  • Resolution Outputs: 4k@60Hz YUV4:4:4, 4k@30Hz, 1080p, 1080i, 720p, 576p, 480p
  • Supported Audio Formats: DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM etc.
  • Output Video Signal: HDMI
  • Transmission Distance: up to 70m under 4k@60Hz YUV4:4:4
  • Power Supply: 12V/2A DC Power Supply
  • Power Consumption: 3.8W (max)
  • Weight: TX - 305g, RX - 305g
  • Dimensions: TX - 75.8L x 72.2W x 18H mm, RX - 75.8L x 72.2W x 18H mm

12 Months

We Offer 12 Months for this product
