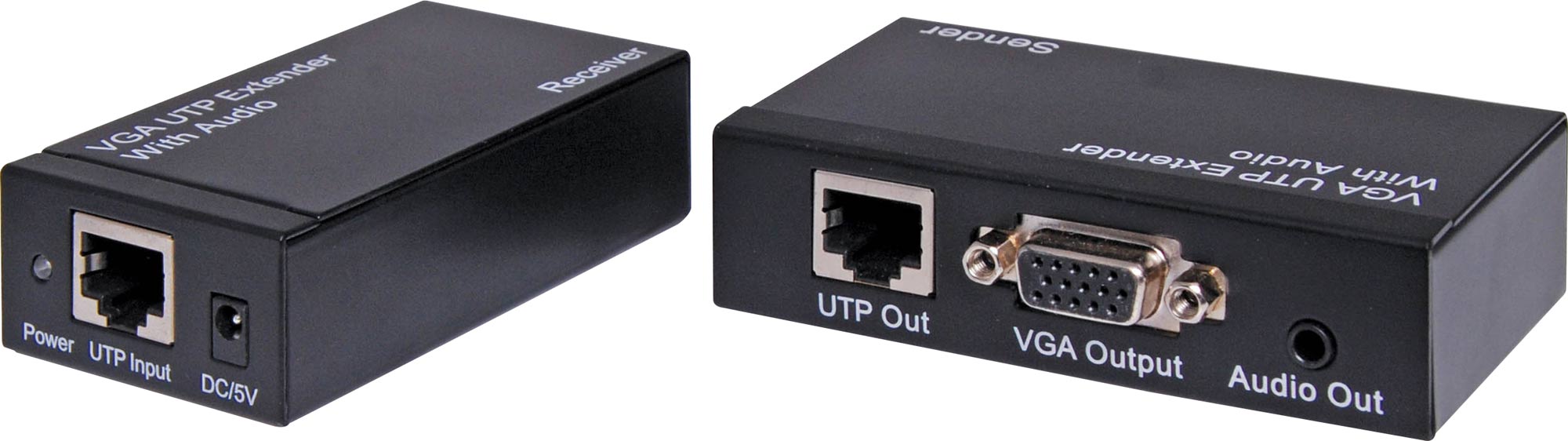

VGA + Audio Balun UTP - Single Channel

Manufacturer: Dynalink
Be the first to review this product
Permits audio & video transmission over Cat 5e/6 cable.
SKU: A3221A
$167.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Permits audio & video transmission over Cat 5e/6 cable. Applications include LCD monitor & projectors. DE15 VGA input. Gain & peak adjustments. Transmission distance up to 300m.

Package includes transmitter, receiver and power supplies.

Max resolution: 1920 x 1200 @ 85Hz.

Features

  • Huge 300m range over a single solid core Cat5e/cat6 cable
  • Support for up to 1900 x 1200 resolution
  • SVGA and RJ45 output on the transmitter unit.
  • Compatible with any TV, monitor or projector with a VGA output.

Specifications

Input/Output Connections

  • Input: VGA Socket 15 pin
  • Output: VGA Socket 15 pin, 1 x RJ45

Operating Frequency

  • Vertical Frequency Range: 60/75/85Hz

Resolution:

  • 600x480, 800x600, 1024x768, 1280x768, 1280x960, 1280x1024, 1600x900, 1600x1200, 1920x1080, 1920x1200

Mechanical

  • Transmitter dimensions: 100L x 65W x 25.5H mm
  • Transmitter weight: 208g
  • Receiver dimensions: 81.5L x 43W x 23H mm
  • Receiver weight: 108g

Environmental

  • Operating temperature: 0ºC - +70ºC
  • Operating humidity: 10% to 85% RH
  • Storage temperature: -10ºC - +80ºC
  • Storage humidity: 5% to 90% RH

Power Requirement

  • Transmitter: 5V DC 2A 5W max (plug pack included)
  • Receiver: 5V DC 2A 5W max (plug pack included)
