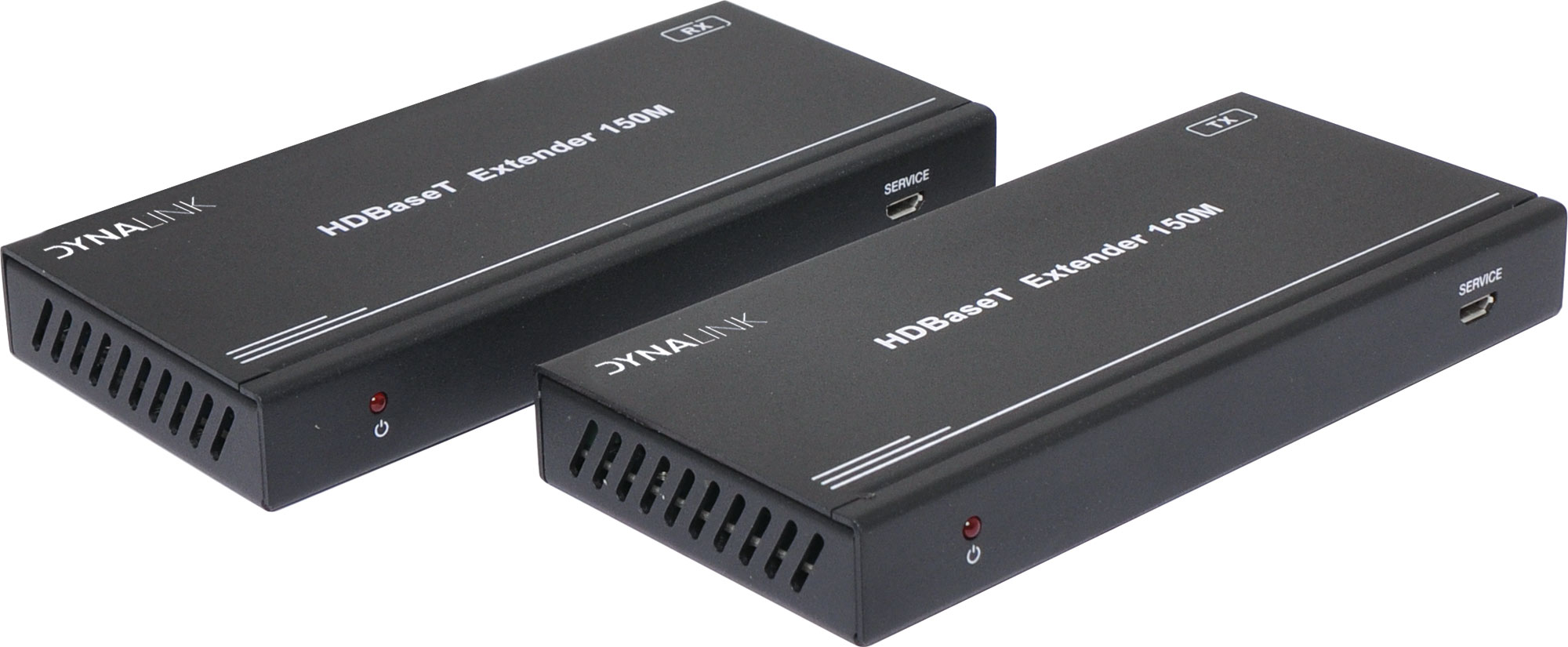

HDMI over HDBaseT Extender with IR

Manufacturer: Dynalink
SKU: A3218C
This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable.
$417.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $417.27
2+ $377.27
4+ $335.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR RS232 control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR RS232 control signal. The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability.

Package includes:
1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
1 x IR Blaster cable (1.5 meters)
1 x 20~60KHz IR Receiver cable (1.5 meters)
2 x 3-pin Phoenix connector
1 x 24V/1A Locking Power adapter
1 x User Manual

Features:

  • Compact design for easy and flexible installation
  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant.
  • Supports 18Gbps video bandwidth.
  • Single Cat5e/6 cable transmission: 120m @ 4K2K, 150m @ 1080p.
  • HDMI loop output on transmitter
  • Analogue 3.5mm stereo output on receiver
  • Bi-directional IR control (two targets and two emitters included)
  • RS232 pass-through
  • CEC pass-through
  • HDR, HDR10+, Dolby Vision and HLG support
  • Supports PoC (Power over Cable)

Specifications:

Technical

  • HDCP Compliance: HDCP 2.2 / HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, All HDMI 3D TV formats, All PC resolutions including 1920 x 1200
  • Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr, 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • L/R Audio Formats: PCM 2.0
  • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

  • Transmitter: Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female], 1x HDBT OUT [RJ45, 8-pin female] Control:, 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack] , 1x RS232 [Phoenix jack], 1x SERVICE [Mini-USB, Update port]
  • Receiver: Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female], 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack] , 1x RS232 [Phoenix jack], 1x SERVICE [Mini-USB, Update port]

Mechanical

  • Housing: Metal Enclosure
  • Colour: Black
  • Dimensions: Transmitter / Receiver:140mm [W] x 65mm [D] x 18mm [H]
  • Weight: Transmitter: 160g, Receiver: 155g
  • Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 24V/1A (Locking connector)
  • Power Consumption: 9.36 W
  • Operating Temperature: 0 - 40°C
  • Storage Temperature : -20 - 60°C
  • Relative Humidity : 20 - 90% RH (no condensation)

Resolution/Distance

  • 4K2K: 120M
  • 1080P: 150M

Warranty & Returns

12 Months

We Offer 12 Months for this product
