Audio Over IP Dante POE Transmitter

Be the first to review this product

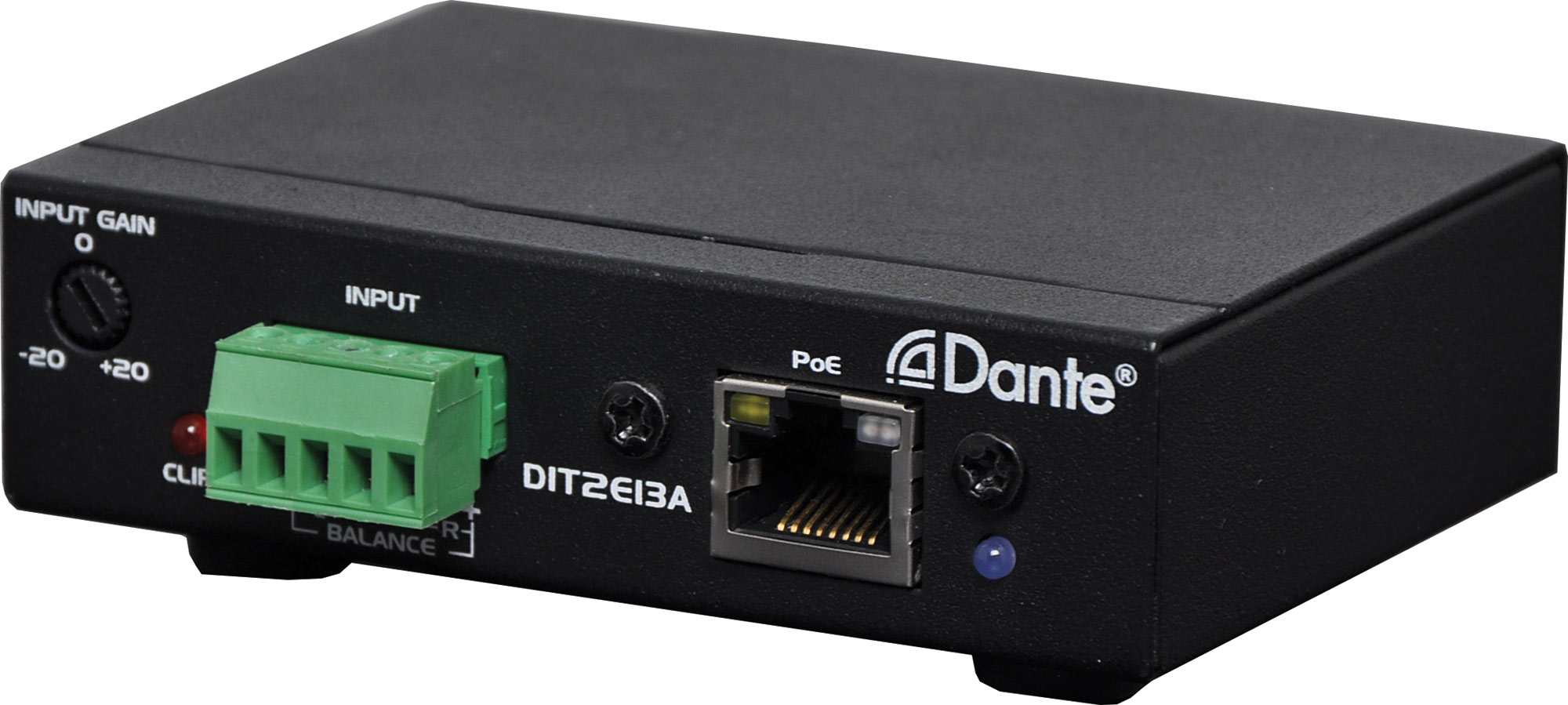

This device is designed to provide two channels audio signal to the Dante network by the Euro terminal input. Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using "Dante controller" to route the low latency of signal to other devices which already connected on the same Dante network.
SKU: A3165
$453.64
Per ea
Quantity Price
ea $453.64
2+ $409.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These quality Dante interface boxes allow for conversion of analog audio signals into Dante channels for sending audio over IP. These allow for high quality audio signals to be transferred over very long distances without signal loss using economical UTP cabling. Each device is PoE enabled allowing easy powering from a standard 802.3af compliant PoE switch. Balanced input is provided via euro block connection on the receiver (A 3165), whilst RCA stereo line output is provided on the transmitter (A 3164).

Features

  • Dante Interface for Audio Output
  • Terminal Block Input Jack on front panel
  • Converts Line Audio Signal to Dante Network
  • Input Gain Control on front panel
  • Dante Sample Rates Support: 44.1, 48, 88.2, 96KHz
  • High Resolution Analog to Digital Conversion
  • Power over Ethernet (PoE)
  • Excellent Audio quality

Specifications

LINE Input: 5 pin Euro Terminal , Balanced/Unbalanced.

  • Input Impedance: 40 Ω
  • Sensitivity
  • Input Level Sensitivity: -10 dBu nominal
  • Input Level Sensitivity: +10 dBu Maximum
  • Frequency Response: 20Hz to 20KHz (+/- 0.5 dB)
  • THD+N: <0.1 %
  • Noise: <-75dB
  • Crosstalk: <-70dB

Dante channel

  • Transmitters/Receivers: 2/2
  • Transmission rate: 100 Mbps
  • Resolution: 16/24/32 Bit
  • Sampling rate: 44.1 kHz, 48 kHz, 88.2 KHz, 96 KHz.
  • Dante interface: RJ45 jack
  • Power supply: PoE IEEE 802.3af
  • Dimensions: 92.5mm(W) × 25.2mm(H) × 68.2mm(D)
  • Weight: 200 g

12 Months

We Offer 12 Months for this product
