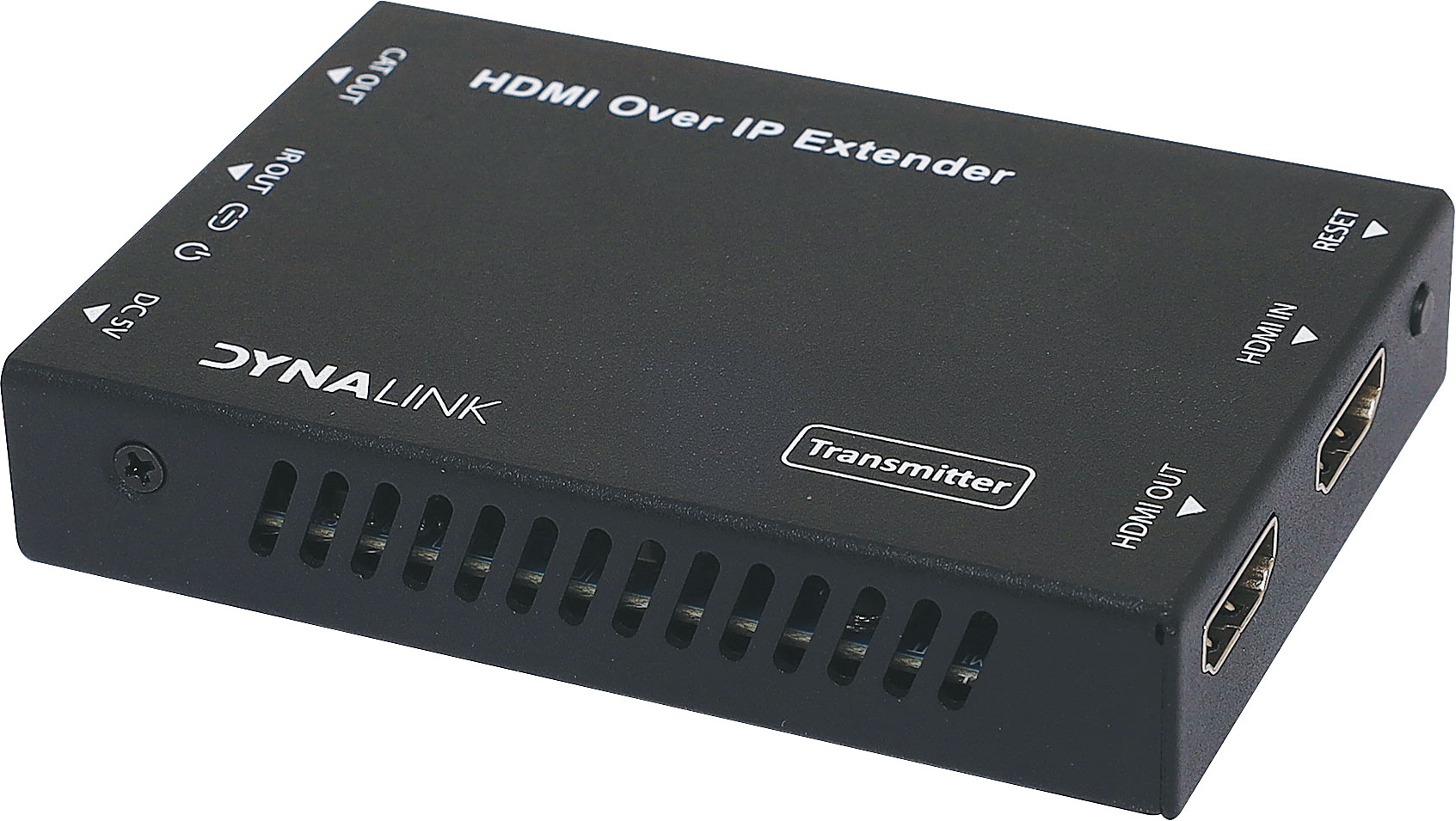

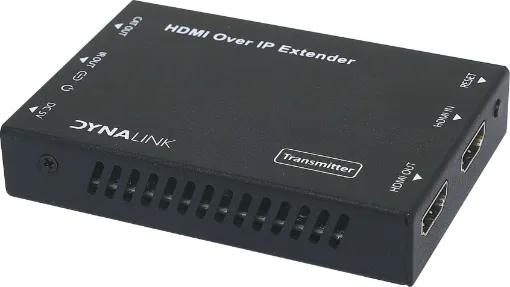

HDMI over IP Extender Cat5e/6 Transmitter

Manufacturer: Dynalink
SKU: A3138A
HDMI Over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable.
$144.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $144.55
2+ $131.82
4+ $117.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

HDMI Over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920x1200@ 60Hz YCbCr 4:4:4. It also supports HDMI loop output on transmitter.

HDMI over IP Extender requires two units: Transmitter and Receiver (sold separately).

The Transmitter (A3138A) is responsible for obtaining HDMI signals for encoding, transmitting via CAT 5e / 6 cables. It supports HDMI loop output.

The Receiver (A3139A - see accessories listed below) is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single Cat5e/6 cable and is the perfect solution for any application.

Box Contents
1x HDMI over IP Extender(Transmitter)
1x 20-60KHz IR Receiver cable (1.5m)
1x 5V/1A Power Adapters
1x User Manual

Features

  • HDCP 1.4 compliant
  • Supports 6.75Gbps video bandwidth
  • Video resolution is up to 1920x1200@60Hz YCbCr 4:4:4
  • Extend distance up to 150m between encoder and decoder via Cat5e/6 cable
  • Adopts Standard H.265 encoding/decoding
  • Supports 1G standard IP switcher / router / hub
  • Supports one-way IR control signal transmission
  • Compact design for easy and flexible installation



pic

pic

Specifications

Technical

  • HDCP Compliance: HDCP 1.4
  • Video Bandwidth: 6.75Gbps
  • Video Resolution: 640x480@60Hz ~1920x1200@60Hz
  • HDMI Audio Formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
  • IR Frequency: 20Hz ~ 60KHz
  • Compression Technology: H.265
  • Request for Switcher/Router: Support 1 GMP, Support DHCP
  • Colour Space: RGB YCbCr 4:4:4, YCbCr 4:2:2
  • Colour Depth: 12-bit
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact Discharge)
  •

Connection

  • Inputs: 1x HDMI Type A (19-pin female)
  • Outputs: 1x HDMI Type A (19-pin female), 1 x CAT OUT (RJ45 connector)
  • Control: 1 x IR OUT (3.5mm stereo mini-jack)
  •
  • Mechanical
  • Housing: Metal Enclosure
  • Silkscreen Colour: Black
  • Dimensions: 88W x 61.2D x 16.5Hmm
  • Weight: 155g
  • Power Supply: Input: AC100 -240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)
  • Power consumption: Encoder: 1.5W, Decoder: 1.25W
  • Operation Temperature: -10°C ~ +50°C
  • Storage Temperature: -20°C ~ +60°C
  • Relative Humidity: 20~90% RH (non-condensing)

Resolution/Distance 1920x1200@60Hz

  • CAT 5e/6 cable: 150m
  •
  • Resolution/Cable Length 1920x1200@60Hz
  • HDMI IN/OUT: 15m

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
