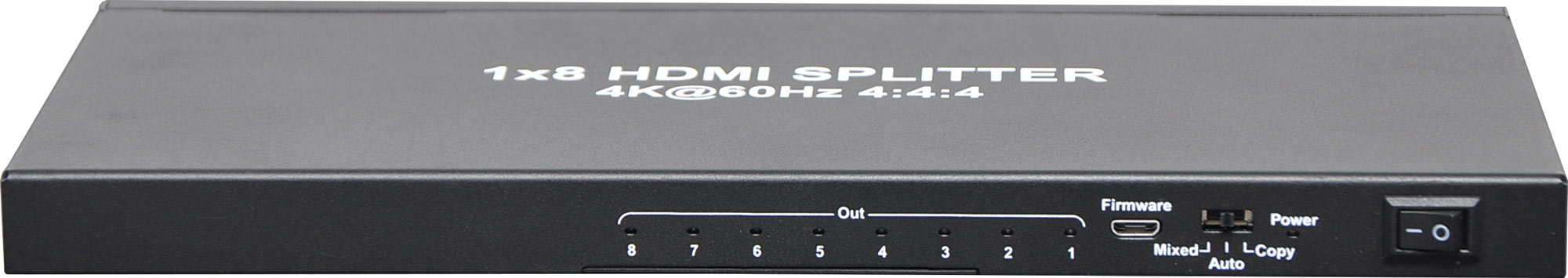

8 Way HDMI Splitter 18GBps Bandwidth

SKU: A3136C
Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required.
$271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $271.82
2+ $244.55
4+ $217.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required. Three units may be daisy chained together for connection to 22 displays.

Package Contents
1 x HDMI Splitter
1 x 5V/1A DC Adapter
1 x User Manual

Note: In mixed EDID mode, this splitter allows for mixed resolution displays. For instance, a 4K input source is connected to the splitter, two outputs are connected to a 4K television and a 1080p television. The 4K television will display 4K and the 1080p television will display 1080p.

Features

  • Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays
  • Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4)
  • Supports three kinds of EDID handling abilities.
  • Supports HDCP2.2/1.4 Compliant
  • Supports 36 bit Deep Color
  • Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
  • Supports 3D
  • Bandwidth 18G
  • Supports HDR
  • Supports online firmware upgrade via Micro USB Port

Specifications

Operating Temperature Range: -5 to +40°C(+23 to +104°F)

  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Bandwidth frequency: 18Gbps
  • HDCP: HDCP2.2
  • Input ports: 1xHDMI(female)
  • Output ports: 8xHDMI outputs(female)
  • Resolution outputs: up to 4Kx2K(3840x2160@60Hz YUV 4:4:4)
  • Dimensions(LxWxH): 247.2x110x17mm
  • Power consumption: 5W(MAX)
  • Transmission Distance: 15m(Maximum)over standard HDMI cable/26AWG
  • Net Weight: 610g

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
