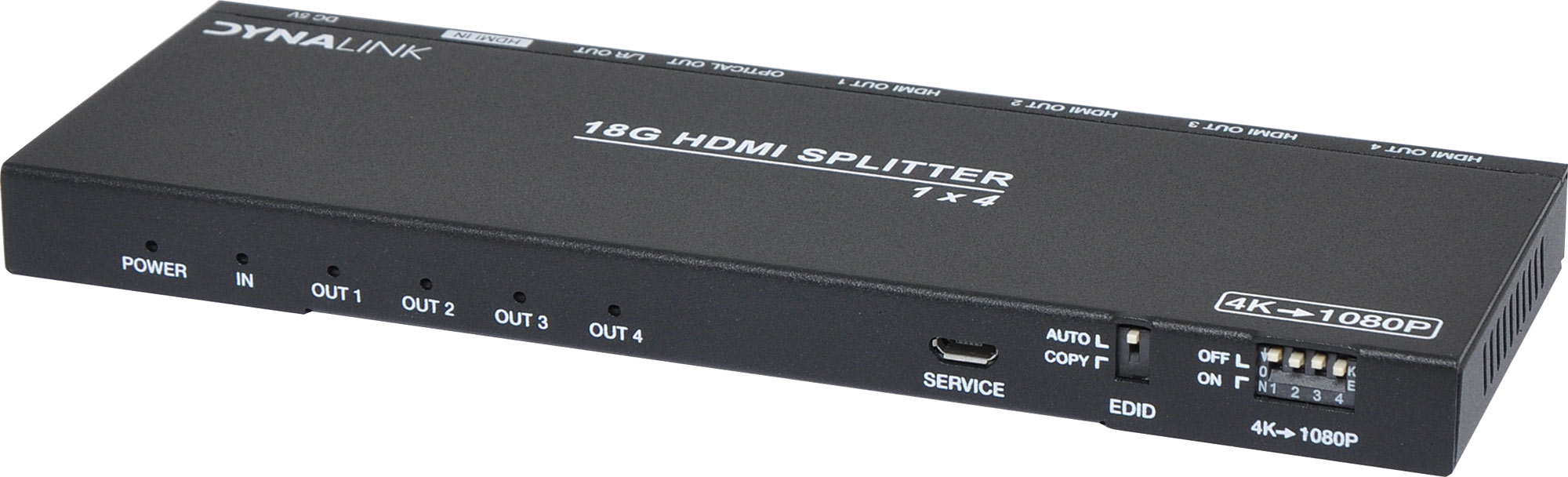

1x4 HDMI Splitter With Downscaler & Audio Extractor

Manufacturer: Dynalink
Be the first to review this product
Designed to split a single HDMI source into four HDMI outputs.
SKU: A3114
$199.09
Per ea
QuantityPrice
ea$199.09
2+$180.91
4+$162.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 1x4 HDMI Splitter With Downscaler & Audio Extractor is designed to split a single HDMI source into four HDMI outputs. This allows for a HDMI source to be distributed to multiple screens within a single location such as a venue, function centre etc. It can also be used to for distributed video signage requirements. It also extracts audio from the HDMI signal and converts it into S/PDIF optical output or 3.5mm stereo jack output. Supports full 4K @ 60Hz input and output with downscale to 1080p function. Power supply included.

Features

  • 1 input / 4 outputs.
  • HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
  • Maximum HDMI resolution up to 4K2K@50/60Hz (4:4:4).
  • Supports digital & analog audio extraction from HDMI source.
  • Supports output bypass and 4K to 1080P downscaling.

Specifications

HDMI Compliance: 2.0b

  • HDCP Compliance: 2.2 / 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K 60Hz 4:4:4
  • Colour Space: RGB / YCbCr 4:4:4, 4:2:2
  • Colour Depth: 4K 60Hz 8-bit, 1080p 12-bit
  • HDMI Audio: LPCM, Dolby digital, True HD,
  • DD+, DTS, DTS-EX, DTS HD Master, DTS High Res, DSD
  • Stereo Audio: PCM 2.0
  • Optical Audio: LPCM, Dolby 5.1, Dolby True HD,
  • DD+, DTS, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
  • Inputs: HDMI x 1
  • Outputs: HDMI x 4, 3.5mm stereo audio jack, S/PDIF optical
  • Case Dimensions: 180W x 62D x 14H
  • Power Supply: 5V DC 1A (included)

12 Months

We Offer 12 Months for this product
