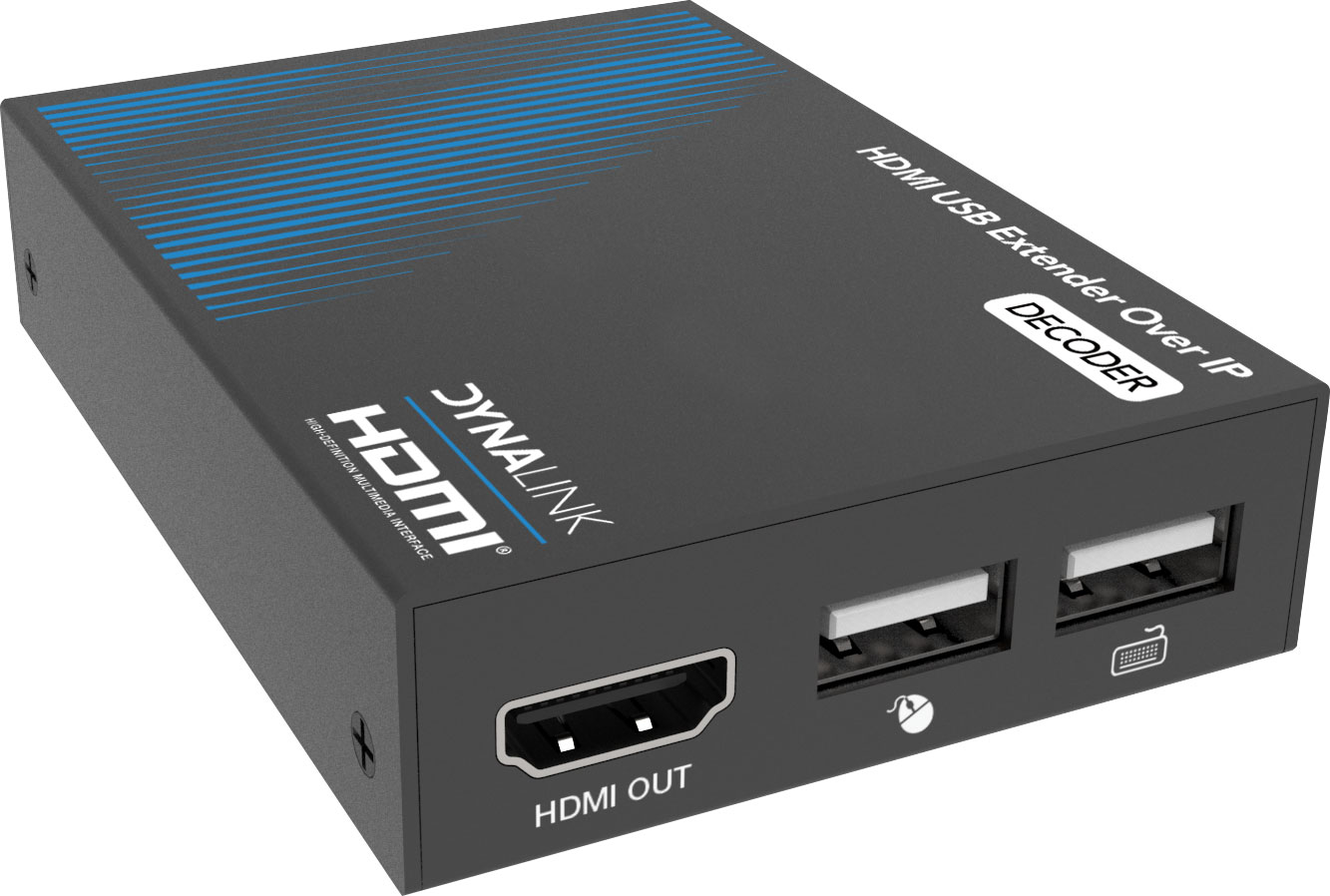

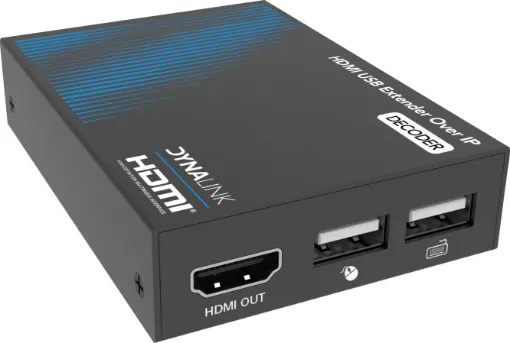

HDMI USB KVM Over IP Extender  - Decoder

Manufacturer: Dynalink
Be the first to review this product
Designed to extend HDMI signals over distances up to 150m using Cat6/6a cabling.
SKU: A3111
$168.18
Per ea
QuantityPrice
ea$168.18
2+$150.91
4+$134.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed to extend HDMI signals over distances up to 150m using Cat6/6a cabling. In addition it also allows USB peripherals to control a connected computer from the receiver end. Infra-red control is relayed via the included IR emitter and target. The cable bandwidth allows for zero-delay operation with HDMI resolutions up to 1080p @ 60Hz. Power is via the included power supply.

Designed to be used with the A3110 HDMI Over IP Encoder - see accessories listed below

Box Contents:
1× HDMI over IP Extender (Decoder)
1× IR Blaster cable (1.5ms)
1× 20-60KHz IR Receiver cable (1.5m)
1× 5V/1A Power Supply
1× User Manual

Features

  • Extend both HDMI signal plus IR control & USB peripherals
  • Transmission up to 150m over Cat6/6a UTP cabling
  • Ideal for remote operation of PC equipment
  • HDCP 1.4 compliant
  • 6.75Gbps video bandwidth
  • H.265 encoding/decoding
  • Supports USB 1.1 KVM pass-through
  • Supports standard 1000MBps network switch/router

Specifications

Technical

  • HDCP Compliance: HDCP 1.4
  • USB Version: USB 1.1
  • Video Bandwidth: 6.75Gbps
  • Resolution/Distance:1920x1200 @60Hz CAT 5e/6 cable 150 meters
  • Resolution/Cable Length: 1920x1200 @60Hz HDMI IN / OUT 15 meters

Video Resolution

  • Input: Up to 1920 x 1200@60Hz
  • Output: Up to 1080P@60Hz

Audio Formats

  • Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz
  • Output: LPCM 2.0CH 48KHz
  • IR Frequency: 20Hz ~ 60KHz
  • Compression Technology: H.265
  • Request for Switcher/Router: Support 1Gbps, Support DHCP
  • Colour Depth: 8-bit,10-bit,12-bit
  • Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

  • Inputs: 1 x LAN (RJ45 connector)
  • Outputs: 1 x HDMI OUT (Type A, 19-pin female)
  • Control: 1 x IR IN (3.5mm Stereo Mini-jack), 2 x USB (USB-A, female)

Mechanical

  • Housing: Metal Enclosure
  • Dimensions: 67W × 91.5D × 17.5Hmm
  • Weight: 150g
  • Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A
  • Power Consumption: 3.65W
  • Operation Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity : 20 to 90% RH (non-condensing)

12 Months

We Offer 12 Months for this product
