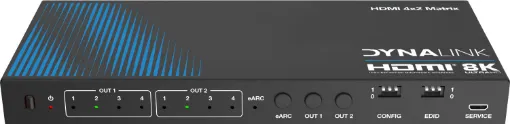

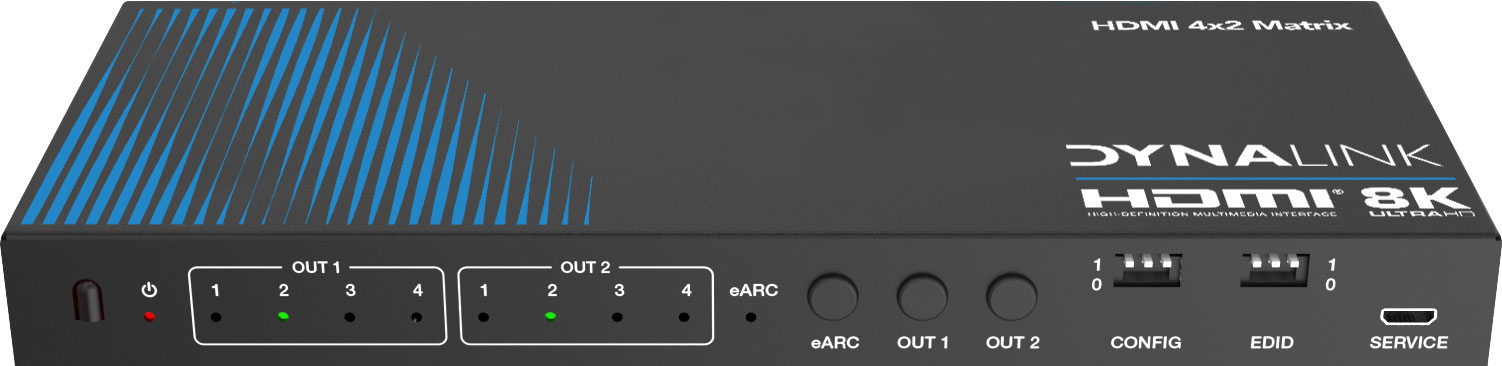

8K 4x2 HDMI Matrix Switcher with eARC

Manufacturer: Dynalink
SKU: A3109
Allows four HDMI 8K V2.1 sources to be switched to two outputs/screens. This compact switcher brings together your HDMI sources for easy switching via front panel or IR remote control.
$326.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $326.36
2+ $295.45
4+ $262.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Allows four HDMI 8K V2.1 sources to be switched to two outputs/screens. This compact switcher brings together your HDMI sources for easy switching via front panel or IR remote control. eARC HDMI output allows simple connection to HDMI equipped soundbars. S/PDIF and 3.5mm stereo jack outputs are provided for connection to amplifier/speakers. Front panel provides access to switching configuration (pass through/scaler/splitter/switcher) and EDID DIP switches. Power supply included.

Box Contents
1 x 8K HDMI 4x2 Matrix
1 x 5V/2A Power Supply
1 x IR Remote
1 x User Manual

Features

  • HDMI 2.1 and HDCP 2.3 compliant
  • 40Gbps video bandwidth
  • Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • VRR, FVA, ALLM supported
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • INPUTS 1 port and OUT 1 port support eARC/ARC function
  • Allows HD audio up to Dolby Atmos, DTS:X over TrueHD from ANY external HDMI source to any eARC/ARC sound system
  • Support audio de-embedding function (output through the optical and analog port)
  • Built-in EDID DIP switch supports advanced EDID management
  • 8K->4K, 8K/4K->2K downscaler support
  • Support IR remote control and front panel button switching
  • Built-in Equalizer, Retiming and Driver
  • Compact design for easy and flexible installation

Specifications

Technical

  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
  • Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD. Audio de-embedding output: Optical: Up to LPCM/Dolby/DTS 5.1 CH, Analog: LPCM 2.0 CH
  • Colour Depth: 8-bit,10-bit,12-bit
  • Colour Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

  • Input Ports: 4×HDMI IN Type A (19-pin female)

Output Ports:

  • 2 x HDMI OUT (Type A, 19-pin female)
  • 1 x OPTICAL (S/PDIF
  • 1 x L/R (3.5mm Stereo Mini-jack)
  • Controls: 1 x SERVICE (Micro USB, Update port)

Mechanical

  • Housing: Metal Enclosure
  • Silkscreen Colour: Black
  • Dimensions (mm): 200W × 85D × 21H
  • Weight: 411g
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A
  • Power Consumption: 2.05W (Max)
  • Operation Temperature: -0°C to 40°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 20~90% RH (non-condensing)
