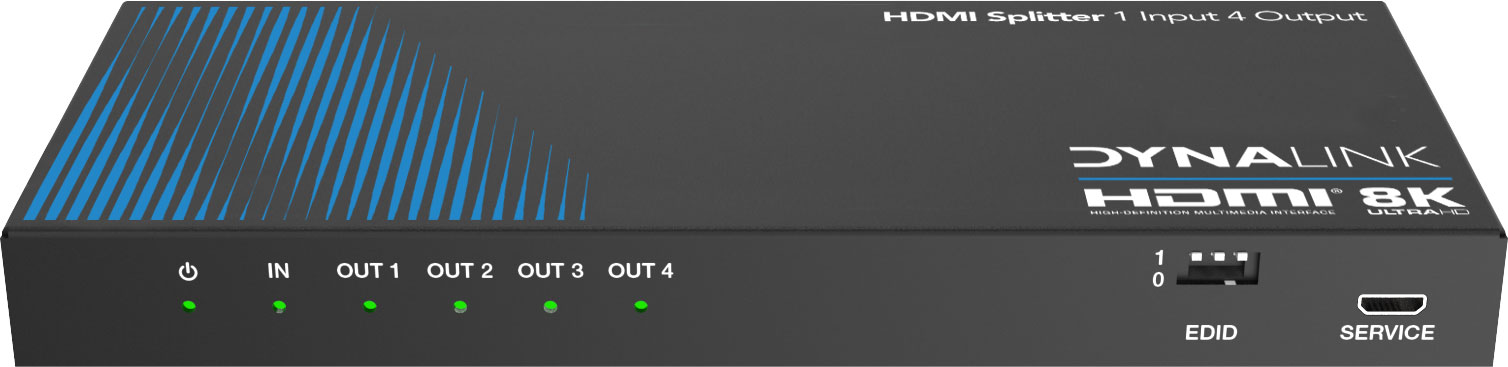

8K 40Gbps HDMI 4 Way Splitter

Manufacturer: Dynalink
Be the first to review this product
This splitter can distribute one HDMI source signal to any four display devices.
SKU: A3107
$526.36
Per ea
QuantityPrice
ea$526.36
2+$477.27
4+$422.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This splitter can distribute one HDMI source signal to any four display devices. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conferencing, multi-media teaching and other occassions requiring for multi screen display.

Box Contents
1 x 8K HDMI 1x4 Splitter
1 x 12V/2.5A Power Supply
1 x User Manual

Features

  • HDMI 2.1 and HDCP 2.3 compliant
  • 40Gbps video bandwidth
  • Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • VRR, FVA, ALLM supported
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Built-in Equalizer, Retiming and Driver
  • Advanced EDID management
  • Support audio de-embedding function (output through the optical and analog port)
  • Compact design for easy and flexible installation for four HDMI outputs
  • HDMI daisy chain several splitters - up to 4 levels.

Specifications

Technical

  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
  • Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH, Analog: PCM 2.0
  • Colour Depth: 8-bit,10-bit,12-bit
  • Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

  • Input Ports: 1 x HDMI IN Type A (19-pin female)
  • Output Ports: 4 x HDMI OUT (Type A, 19-pin female), 1 x OPTICAL (S/PDIF), 1 x L/R (3.5mm Stereo Mini-jack)
  • Control: 1 x SERVICE (Micro USB, Update port)

Mechanical

  • Housing: Plastic Enclosure
  • Dimensions: 212W x 94D x 23Hmm
  • Weight: 539g
  • Power Supply: 5V 2A DC
  • Power Consumption: 9W (Max)
  • Operation Temperature: -0°C to 40°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 20 to 90% RH (non-condensing)

12 Months

We Offer 12 Months for this product
