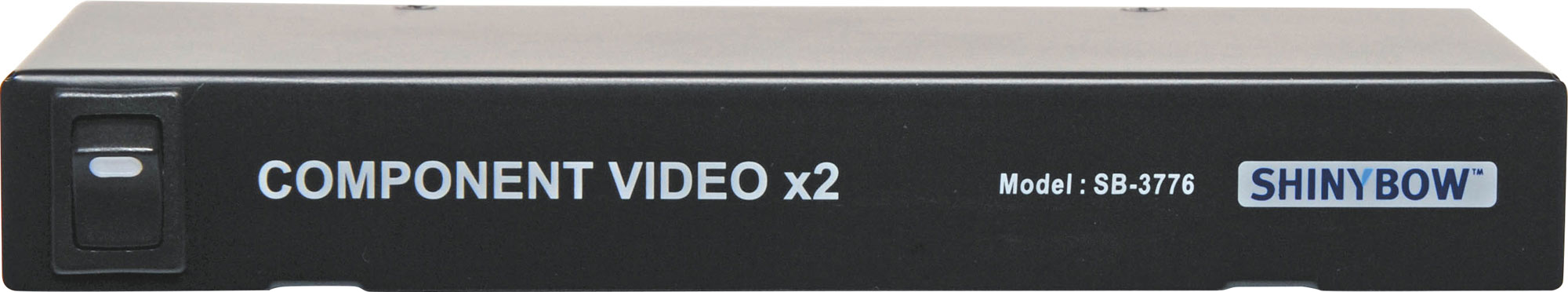

2 Way Component Video Distribution Amp

SKU: A3100
VIDEO ONLY. Accepts one component video and distributes it to two outputs. Suitable for domestic or commercial use in showrooms, pubs, clubs, cafes, TABs, etc.
Call for pricing
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

VIDEO ONLY

Accepts one component video and distributes it to two outputs. Operates over a maximum distance of 50m between distribution amp and monitors. Suitable for domestic or commercial use in showrooms, pubs & clubs, cafes, TABs, etc. Gold RCA connections, powered by 12V DC (plugpack included). Dimensions: ≈305W x 155D x 44.5Hmm.

Specifications

Video Amplifier Bandwidth: 300MHz

  • Resolution: up to 1080p
  • Video Input Connectors: 3-RCA 75Ω(YUV, Y/Pb/Pr, Y/Cb/Cr)
  • Video Output Connectors: 2 sets of 3-RCA 75Ω(YUV, Y/Pb/Pr, Y/Cb/Cr)
  • Video Distortion: <1.2db (+/-3db)
  • Channel Isolation: >50db
  • S/N Ratio: >50db
  • Power Consumption: 150mA (max.)
  • Power Supply: 12VDC; 300mA

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
