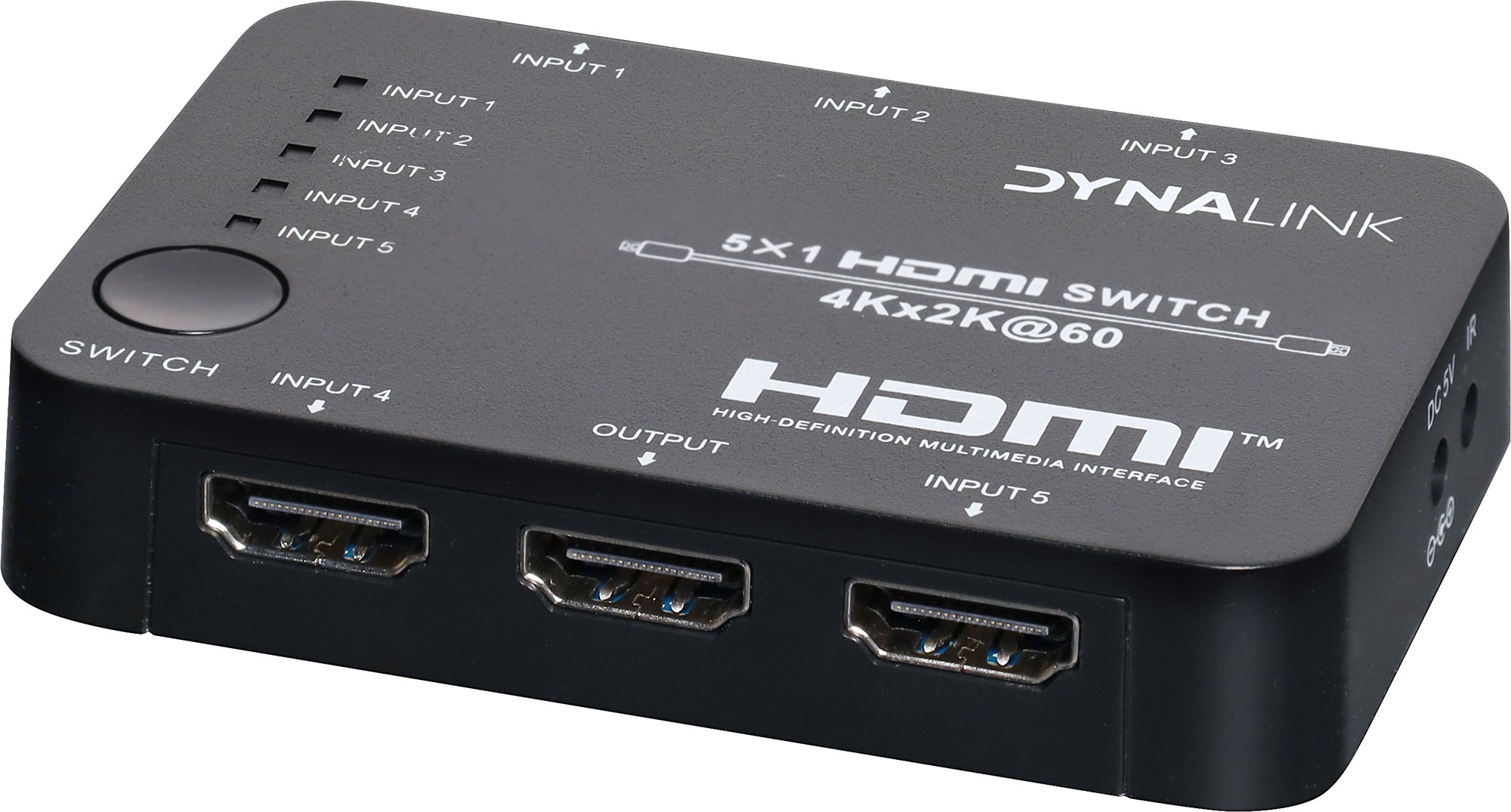

18Gbps 5 Way HDMI Switcher

Manufacturer: Dynalink
Be the first to review this product
Switch between 5 HDMI AV sources with this professional 4K ready HDMI switcher.
SKU: A3089A
$69.05
Per ea
QuantityPrice
ea$69.05
2+$61.82
4+$54.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Switch between 5 HDMI AV sources with this professional 4K ready HDMI switcher. Includes an IR remote control and receiver unit, which allows the switcher to be mounted behind the TV or inside a cabinet. Supports 12-bit deep colour, 6.0Gbps high speed, full UltraHD 4K. Maximum distance between TV and HDMI source ˜25m. Supports HDR, HDR10, Dolby Vision and HLG. Dimensions: 87W × 59.5D × 19H mm. Remote requires 2 x AAA batteries (included).

Please Note: Requires USB power supply either from a peripheral equipment source (TV/Amp) or an M 8861A

Package Contents
1 x HDMI 5×1 Switcher
1 x IR Receiver Cable
1 x 5V USB Power Cable
1 x Remote Control
1 x User Manual
2 x AAA Batteries

Features

  • Supports 18Gbps video bandwidth
  • HDR, HDR10, Dolby Vision and HLG are supported
  • Supports video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
  • Supports 3D video format
  • Low power consumption
  • IR remote control and panel button control
  • Compact design for easy and flexible installation

Specifications

Technical

  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4k2k@60Hz
  • Colour Depth: 8-bit (4K60Hz)
  • Colour Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
  • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio

Connection

  • Input Ports: 5×HDMI Type A (19-pin female), 1×IR IN [3.5mm Stereo Mini-jack]
  • Output Ports: 1×HDMI Type A (19-pin female)

Mechanical

  • Housing: Plastic Enclosure
  • Silkscreen Colour: Black
  • Weight: 60g
  • Power Supply Input: 5V/1A
  • Power Consumption: 1.5W
  • Operation Temperature: 0°C ~ 40°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 20~90% RH (non-condensing)

12 Months

We Offer 12 Months for this product
