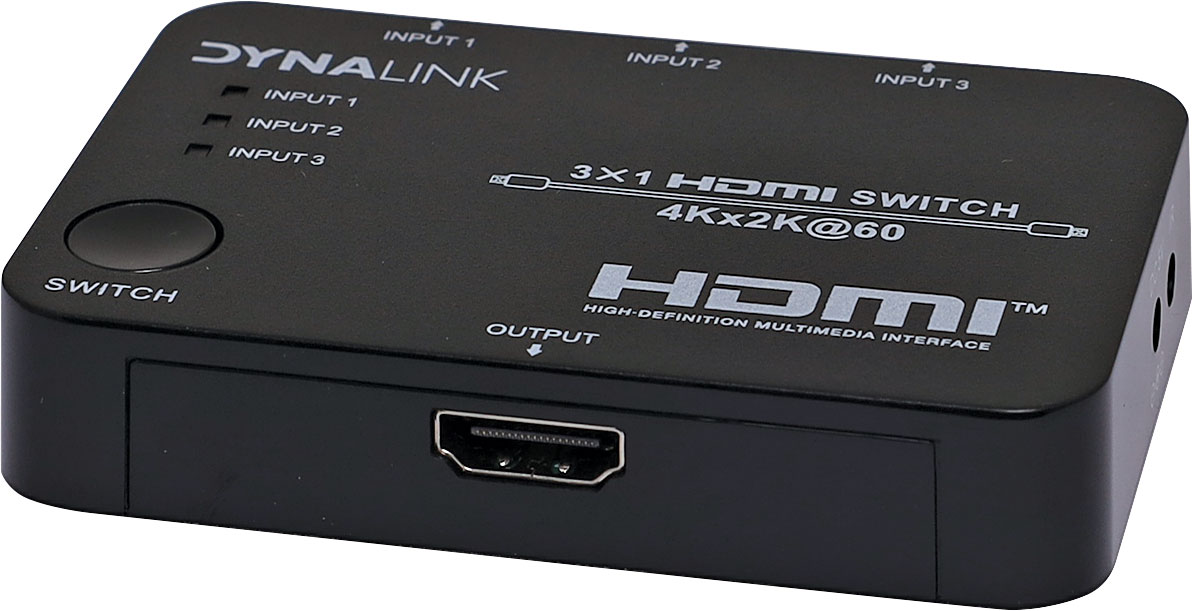

3 Way HDMI 4K Switcher With Remote Control

Be the first to review this product
Switch between up to 5 AV sources with these professional 4K ready HDMI switchers. Each includes an IR remote control and receiver unit, which allows the switcher to be mounted behind the TV or inside a cabinet.
SKU: A3087C
$49.05
Per ea
QuantityPrice
ea$49.05
3+$44.14
6+$39.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Switch between 3 AV sources with these professional 4K ready HDMI switchers. Each includes an IR remote control and receiver unit, which allows the switcher to be mounted behind the TV or inside a cabinet. Supports 12-bit deep colour, 6.0Gbps high speed, full UltraHD 4K. Maximum distance between TV and HDMI source ˜25m.

Contains 1 x CR2025 battery in remote.

Please Note: Requires USB power supply either from a peripheral equipment source (TV/Amp) or an M 8861A

Package Contents
1× HDMI 3×1 Switcher
1× IR Receiver Cable
1× 5V USB Power Cable
1× Remote Control
1× User Manual

Features

  • HDCP 2.2/1.x and DVI 1.0 compliant
  • Support 18Gbps video bandwidth
  • HDR, HDR10, Dolby Vision and HLG are supported
  • Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
  • Support 3D video format
  • Low power consumption
  • Support IR remote control and panel button control
  • Compact design for easy and flexible installation

Specifications

Technical

  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4k2k@60Hz
  • Colour Depth: 8-bit (4K60Hz)
  • Colour Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
  • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
  • ESD Protection: Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

  • Input Ports: 3×HDMI Type A (19-pin female) 1×IR IN [3.5mm Stereo Mini-jack]
  • Output Ports: 1×HDMI Type A (19-pin female)

Mechanical

  • Housing: Plastic Enclosure
  • Silkscreen Colour: Black
  • Dimensions: 87mm (W) × 59.5mm (D) × 19mm (H)
  • Weight: 60g
  • Power Supply: Input: 5V/1A
  • Power Consumption: 1.5W
  • Operation Temperature: 0°C ~ 40°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 20~90% RH (non-condensing)

12 Months

We Offer 12 Months for this product
